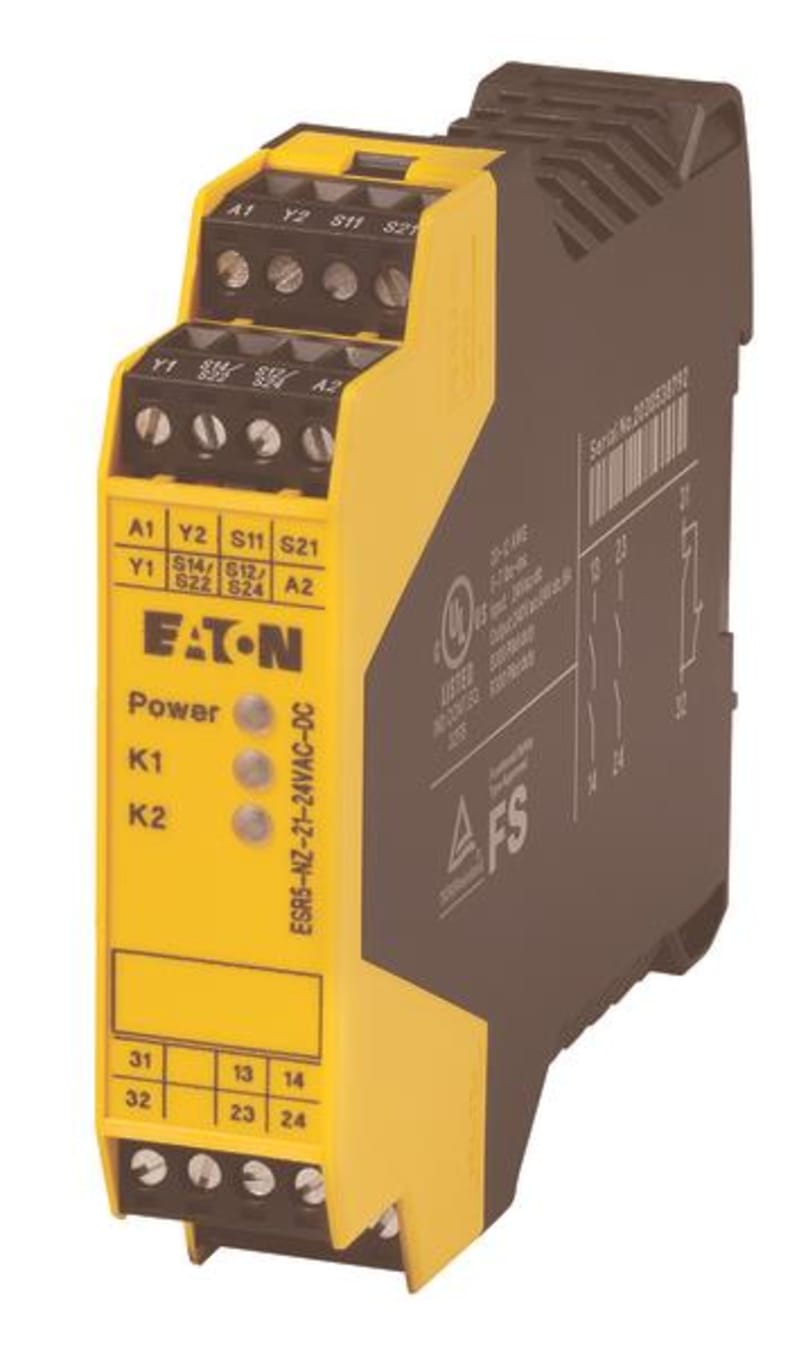

Safety Relay ESR5-NZ-21-24VAC-DC

Eaton ESR5-NZ-21-24VAC-DC Safety Relay, 24VDC/AC, 2 channels, 2 veier.

Manufacturer part number (MPN)

ESR5-NZ-21-24VAC-DC

EAN / GTIN

4015081168439

Sales unit

pcs

Eaton catalogue number

118703

Depth

114.5 mm

Height

99 mm

Width

22.5 mm

Weight

0.165 kg

Mounting position

As required

Prooftest

240 Months (High Demand)

Switching capacity

5 A at 3600 O/h, AC-15 at 230 V, Outputs; In accordance with IEC 60947-5-1, Outputs; 0.4 W; 5 A at 3600 O/h, DC-13 at 24 V, Outputs

Vibration resistance

10 - 150 Hz

Amplitude

0.15 mm

Acceleration

2 g, (IEC/EN 60068-2-6)

Air pressure

795 - 1080 hPa (operation)

Altitude

Max. 2000 m

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-20 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Dry heat to IEC 60068-2-2; Damp heat, constant, to IEC 60068-2-3

Environmental conditions

Condensation: Non-condensing; Clearance in air and creepage distances according to EN 50178, UL 508, CSA C22.2, No. 14-95

Operating temperature - max

55 °C

Operating temperature - min

-20 °C

Relative humidity

< 75 %

Static heat dissipation, non-current-dependent Pvs

5.16 W

Inrush current

0.025 - 6 A

Power supply circuit

3 W (AC operated 50/60 Hz); 1.5 W (DC operated)

Rated control supply voltage (Us) at AC

50 Hz - max

24 V

Rated control supply voltage (Us) at AC

Rated control supply voltage (Us) at AC

60 Hz - max

24 V

Rated control supply voltage (Us) at AC

60 Hz - min

20.4 V

Rated control supply voltage (Us) at DC - max

24 V

Rated insulation voltage (Ui)

250 V

Rated operational voltage

24 V AC/DC (power supply); 230 V AC; Approx. 24 V DC at input, starting and feedback circuit

Short-circuit current

2.3 A, Input data

Short-circuit protection

Short-circuit proof, 24 V, Fuse for control circuit supply, Control circuit; Fuse 6 A gL/gG, For output circuits, External

Short-circuit protection rating

6A gL/gG, NEOZED (N/C), Output fuse, External, Output data; 10A gL/gG, NEOZED (N/O), Output fuse, External, Output data

Electric connection type

Screw connection

Features

Reinforced insulation; Automatic start; 2 Non-delayed enable current paths; Basic insulation; Monitoring of external contactor/expansion unit; Safe insulation

Fitted with

Approval according to UL; Detachable clamps; Feedback circuit; Approval for TÜV

Functions

2-channel; Two-hand function

Material

Contacts: silver tin oxide, gold plated (AgSnO2

0.2 µm Au); Enclosure

Polyamide (PA), not reinforced

Connection type

M3 screw terminals

Current consumption

60 mA, DC; 125 mA, AC

Degree of protection

IP20; Terminals: IP20; Installation location: ≥ IP54; Enclosure: IP20

Duty factor

100 %

Emitted interference

According to EN 61000-6-4

Interference immunity

According to EN 61000-6-2

LED indicator

Status indication of SmartWire-DT network: Green LED

Lifespan, mechanical

10,000,000 Operations

Lifetime

240 month

Mounting method

Rail mounting possible; Top-hat rail fixing (according to IEC/EN 60715, 35 mm)

Mounting width

22.5 mm

Overvoltage category

III

Pollution degree

2

Power loss

Normally 5.16 W

Product category

Electronic safety relays

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

6000 V AC

Recovery time

< 1000 ms

Safety parameter (EN ISO 13849-1)

PL e, Performance level; 300,000 switching cycles, B10d; Cat. 4, Category

Safety parameter (IEC 62061)

SILCL 3, Safety integrity level claim limit; EN 574 Type III C; SIL 3, Safety integrity level, In accordance with IEC 61508; Cat. 4, Category; 12.1 x 10-10, PFHd, Probability of failure per hour; SIL 3, Safety integrity level

Stop category (IEC 60204)

0

Suitable for

Safety functions; Module used to safely interrupt electrical circuits; Safety relay for monitoring two-hand control per EN 574 Type IIIC and protective door switches

Switching frequency

Max. 0.5 Hz, Input data

Type

Feedback circuit Protective door

Voltage type

AC/DC

Input

< 500 ms, Simultaneity for inputs 1/2

Nominal current

60 A

Number of inputs

2-channel

Number of outputs (safety related, delayed) with contact

0

Number of outputs (safety related, undelayed) with contact

2

Number of outputs (signaling function, delayed) with contact

0

Number of outputs (signaling function, undelayed) with contact

1

Permissible total cable resistance

50 Ω (input and starting circuits for UN)

Pick-up time

50 ms typ. (at Uₑ in automatic mode); 50 ms typ. (K1, K2 - for UN automatic mode); 50 ms typ. (K1, K2 - for UN manual operation); 50 ms typ. (at Uₑ in manual mode)

Quadratic summation current

72 A² (ITH² = I1² + I2²)

Reset time

Normally 20 ms

Resistance

22 Ω (impedance)

Switching voltage

250 V

Uninterrupted current

6 A N/O, Limiting continuous current; 6 A N/C, Limiting continuous current

Screwdriver size

3.5 x 0.6 mm, Terminal screw; 2, Terminal screw, Pozidriv screwdriver

Stripping length (main cable)

7 mm

Terminal capacity

1 x (0.2 – 2.5) mm², solid; 2 x (0.2 – 1) mm², solid; 2 x (0.25 – 1) mm², flexible with ferrule; 24 - 12 AWG, solid or stranded; 1 x (0.25 – 2.5) mm², flexible with ferrule

Tightening torque

0.6 Nm, Screw terminals

Suitable for safety functions

Yes

With approval according to UL

Yes

Control voltage 1

24 V

Control voltage 2

24 V

Type of control voltage 1

AC/DC

Type of control voltage 2

AC/DC

With detachable clamps

Yes

With start input

No

With feedback circuit

Yes

Number of outputs, safety related, undelayed, with contact

2

Type class for safety demands according to EN 574

Type III C

Suitable for rail mounting

Yes

With approval for BG BIA

No

Rated switch current

5 A

Performance level according to EN ISO 13849-1

Level e

Supply voltage AC 50 Hz

24 V

Supply voltage AC 60 Hz

24 V

Supply voltage DC

24 V

Operating voltage AC 50 Hz

24 V

Operating voltage AC 60 Hz

24 V

Operating voltage DC

24 V

Voltage type for actuating

AC/DC

SIL according to IEC 61508

3

Country of origin

Germany

HS Code

8536.49
