Eaton

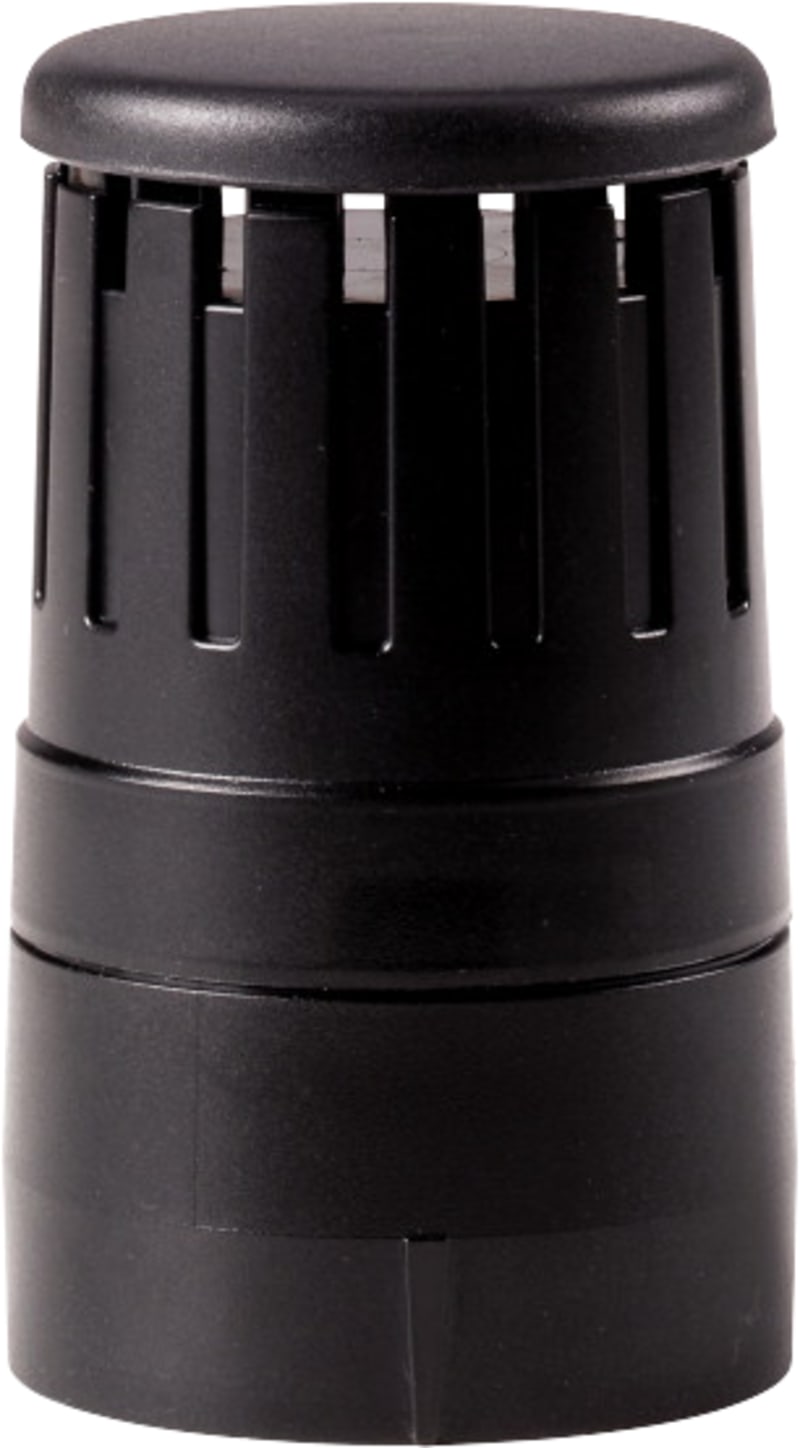

Akuplug, 24V, Constant/Pulse (SL4-AP24)
Part numberSL4-AP24EAN / GTIN4015081679089HS code8531.80
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Akuplug, 24V, Constant/Pulse (SL4-AP24) is listed in the cBallast industrial catalogue. Sales unit: pcs; Eaton catalogue number: 171379; Depth: 43 mm; Height: 72 mm; Width: 43 mm; Weight: 0.043 kg.
Technical Specifications
- Manufacturer part number (MPN)
- SL4-AP24
- EAN / GTIN
- 4015081679089
- Sales unit
- pcs
- Eaton catalogue number
- 171379
- Depth
- 43 mm
- Height
- 72 mm
- Width
- 43 mm
- Weight
- 0.043 kg
- Certifications
- UL report applies to both US and Canada; CSA-C22.2 No. 94-91; IEC/EN 60529; UL File No.: E29184; Certified by UL for use in Canada; CSA Class No.: NKCR7; CSA-C22.2 No. 14-10; IEC/EN 60947-5-1; UL; UL 508; UL Category Control No.: NKCR; CE
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -30 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Leakage current
- 0.003 A
- Rated insulation voltage (Ui)
- 250 V
- Rated operational current (Ie) - max
- 39 mA
- Rated operational voltage (Ue) at AC - max
- 24 V
- Rated operational voltage (Ue) at AC - min
- 24 V
- Rated operational voltage (Ue) at DC - max
- 24 V
- Rated operational voltage (Ue) at DC - min
- 24 V
- Color
- Black
- Functions
- Continuous tone/pulse tone
- Alarm type
- Pulsed tone; Continuous tone; Internal sound setting, 1 pole DIP; 2 types of sound; Tone adjustable
- Connection to SmartWire-DT
- No
- Current consumption
- 0.039 A, at 24 V AC/DC
- Degree of protection
- NEMA 13; IP66
- Frequency rating
- 4000 Hz
- Loudness
- 80 dB
- Material
- Enclosure: Polycarbonate (PC); Cap: Polycarbonate (PC)
- Mounting position
- As required; Place only at the highest position on a pole
- Overvoltage category
- III
- Pollution degree
- 3
- Product Category
- SL signal towers
- Radiation angle
- 360 °
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Shock resistance
- Mechanical, According to IEC/EN 60068-2-27; 15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
- Type
- Acoustic module
- Voltage type
- AC/DC
- Colour
- Black
- Outer diameter
- 43 mm
- Tone adjustable
- Yes
- Operating voltage AC 50 Hz
- 24 V
- Operating voltage AC 60 Hz
- 24 V
- Operating voltage DC
- 24 V
- Country of origin
- Austria
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 4015081679089
- SAP 1000489728
- Code 8936946
Product Documentation
Document preview: Akuplug, 24V, Konstant/Puls (SL4-AP24) — Specification Data Sheet (OEM)
