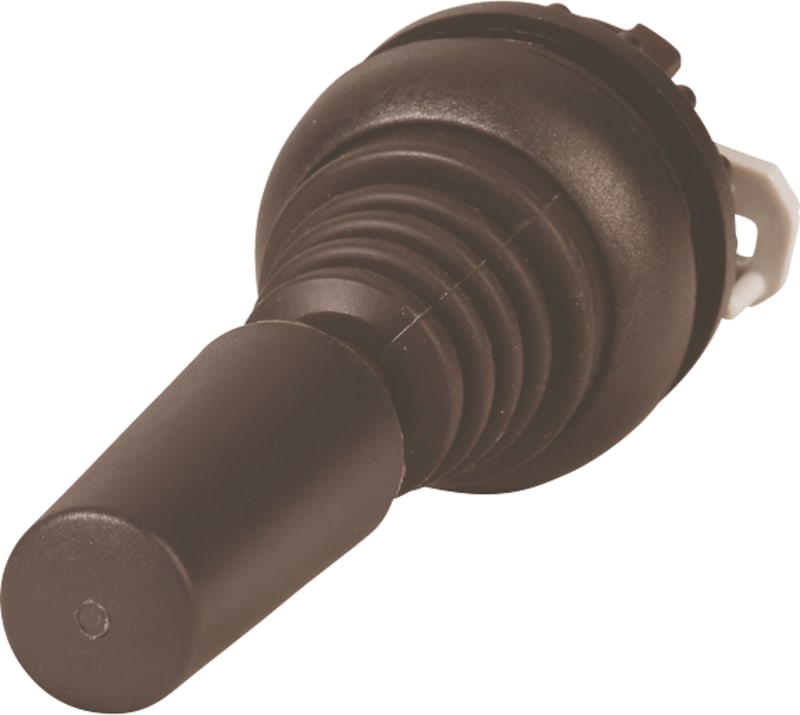

Joystick 4IMP. STILLINGER,BLACK
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Joystick 4IMP. STILLINGER,BLACK (part number M22S-WJ4) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 5 pcs; Eaton catalogue number: 279418; Depth: 100 mm; Height: 30 mm; Width: 30 mm.
Technical Specifications
- Manufacturer part number (MPN)
- M22S-WJ4
- EAN / GTIN
- 4015082794187
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 279418
- Depth
- 100 mm
- Height
- 30 mm
- Width
- 30 mm
- Weight
- 0.028 kg
- Compliances
- CE Marked
- Certifications
- UL 508; IEC 60947-5; CSA Std. C22.2 No. 14-05; CSA Std. C22.2 No. 94-91; EN 60947-5; VDE; UL Category Control No.: NKCR; CSA-C22.2 No. 94-91; IEC/EN 60947-5; UL; CSA; VDE 0660; UL File No.: E29184; CSA-C22.2 No. 14-05; CSA File No.: 012528; IEC/EN 60947; CE; CSA Class No.: 3211-03
- Actuating force
- 5 N
- Actuator function
- Momentary
- Bezel color
- Black
- Bezel material
- Plastic
- Fitted with
- Plastic shaft; Front ring; Retraction in 0-position; Filament bulb (24 V)
- Number of actuation directions
- 4
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- With SWD-RMQ connections; Yes
- Accessories
- Plastic shaft
- Degree of protection
- IP66; NEMA 4X, 13
- Lifespan, mechanical
- 100,000 Operations
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 2000 Operations/h
- Product Category
- RMQ-Titan
- Type
- Joystick
- Number of switch positions
- 1
- Centre mounting, hole diameter
- 22.5 mm
- With retraction in 0-position
- Yes
- Colour front ring
- Black
- Analogue output signal configurable
- No
- Coder
- No
- Material front ring
- Plastic
- With front ring
- Yes
- Locking in 0-position
- No
- Joy stick length
- 75 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082794187
- SAP 1000062374
- Code 8890955
