KOBL.unit F/4 Lamps+4 BRYT
Pricing
Request a quote
We reply within 24 hours
Overview

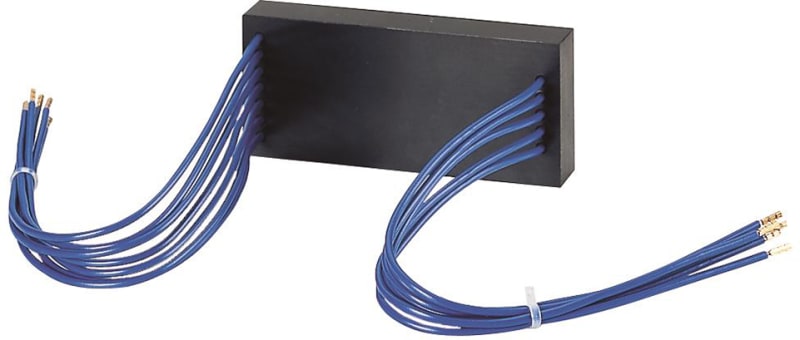

Eaton KOBL.unit F/4 Lamps+4 BRYT (part number RMQ-M1C-ASI) is listed under Control & Automation / Pushbuttons & Pilot Lights. HS code: 8536.69.
Technical Specifications
- Manufacturer part number (MPN)
- RMQ-M1C-ASI EAN / GTIN: 4015080323143 Sales unit: pcs Eaton catalogue number: 032314 Depth: 50 mm Height: 30 mm Width: 110 mm Weight: 0.103 kg Certifications: EN 50082-1; EN 50081-1 Ambient operating temperature - max: 55 °C Ambient operating temperature - min: -25 °C Climatic proofing: Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30 Connection to SmartWire-DT: No Static heat dissipation, non-current-dependent Pvs: 1.5 W No-load current: 30 A Output voltage: 24 V DC (-15/+10 %) Rated operational current (Ie): 120 mA at full load Rated operational voltage: 26.5 - 31.6 V DC (AS-Interface specification) Accessory/spare part type: Accessory Degree of protection: IP20 Mounting position: As required Output: 4 Outputs, protected against short-circuit Product category: Accessories Accessory: Yes Spare part: No Country of origin: Czechia
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4015080323143
- SAP 1200563088
- Code 82903920
Product Documentation
More from Eaton
Eaton
Installation Relay 20A 12V AC/DC 2NO
135175
Eaton
Terminal block 2X240 mm² grey
BPZ-KC-2/240-ALU
Eaton
Motor protection circuit breaker,PKZM0-10-PI
Eaton
Safety Switch,P1-40/SE1/SVB/HI11
Eaton
Joystick 4IMP. STILLINGER,BLACK
M22S-WJ4
Eaton
Residual current circuit breaker 40A 2P 100MAA
235428
Eaton
Eaton FAZ-D40/2 Miniature Circuit Breaker — 2P, Type D, 40 A, 15 kA
Eaton
Eaton FAZ-C2/1 Miniature Circuit Breaker — 1P, Type C, 2 A, 15 kA
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy RMQ-M1C-ASI?
- RMQ-M1C-ASI can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is RMQ-M1C-ASI.
- What is the HS code for RMQ-M1C-ASI?
- The customs tariff (HS) code for RMQ-M1C-ASI is 8536.69.
- Who manufactures RMQ-M1C-ASI?
- RMQ-M1C-ASI is a Eaton product in the Control & Automation range.
- Is a datasheet available for RMQ-M1C-ASI?
- Yes — the RMQ-M1C-ASI datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for RMQ-M1C-ASI?
- The minimum order quantity is 1.
- Is RMQ-M1C-ASI available?
- Yes — RMQ-M1C-ASI is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
