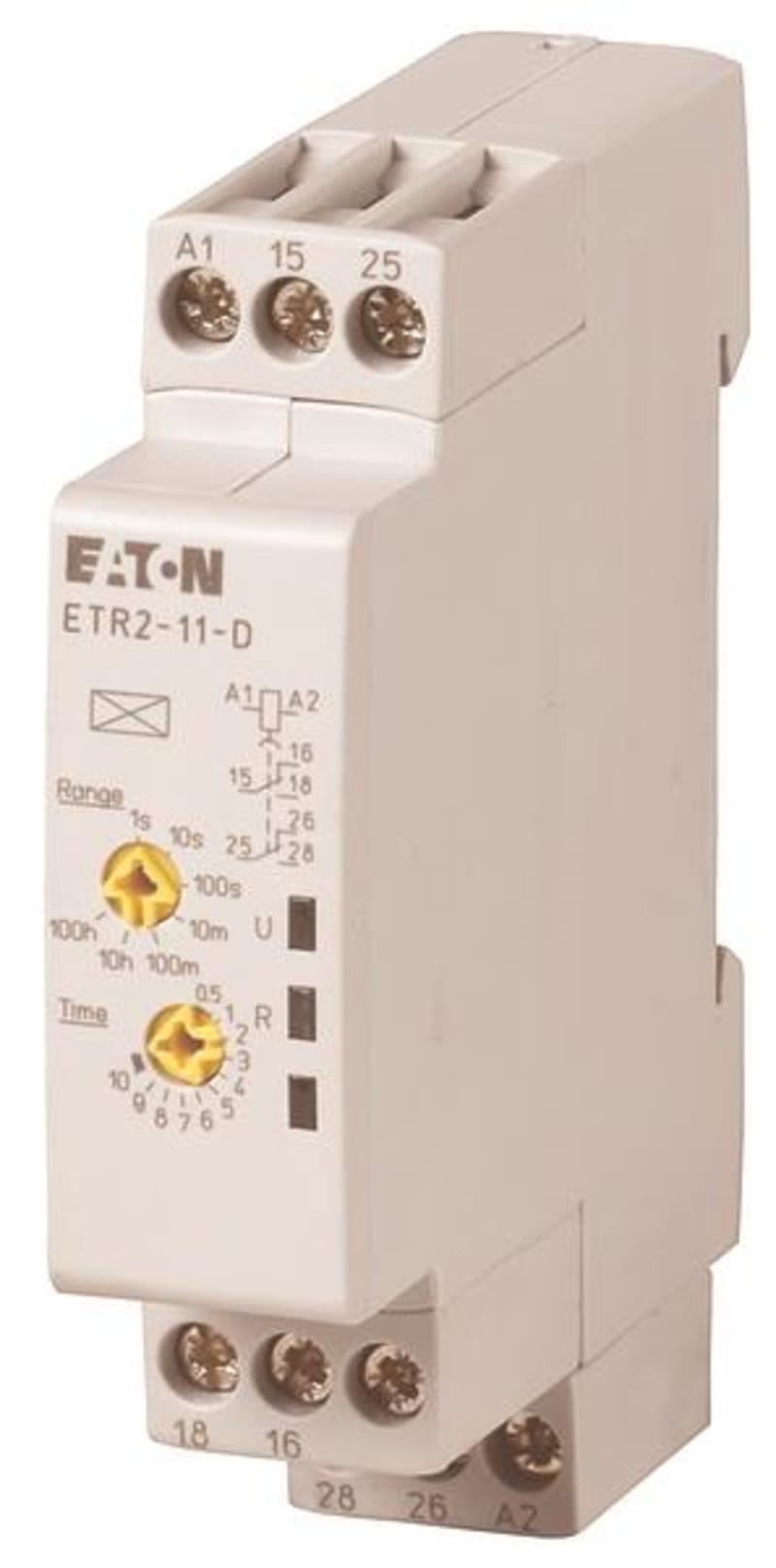

Time relay ETR2-11-D

Eaton ETR2-11-D Time relay, 2W, 0.05s-100h, tilslagsforsinket, 24-240VAC 50/60Hz, 24-48VDC.

Manufacturer part number (MPN)

ETR2-11-D

EAN / GTIN

4015081175727

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

119426

Depth

63 mm

Height

80 mm

Width

17.5 mm

Weight

0.069 kg

Certifications

CSA File No.: UL report valid; CSA-22.2 No. 14; IEC/EN 61812-1; UL 508; IEC/EN 60947-5-1; UL; CSA Class No.: 3211-03; Certified by UL for use in Canada; UL File No.: E29184; UL Category Control No.: NKCR, NKCR7; CE

Ambient operating temperature - max

60 °C

Ambient operating temperature - min

-25 °C

Heat dissipation capacity Pdiss

0 W

Mains voltage tolerance

24 - 48 V DC; 24 - 240 V AC (at 50/60 Hz)

Nominal current

3 A

Rated operational current (Ie)

3 A at 230 V (NO); 5 A at AC-15, 220 V 230 V 240 V; 0.75 A at 230 V (NC)

Electric connection type

Screw connection

Functions

Fixed timing function; Delay-on energization; On-delayed

Degree of protection

IP20

Number of contacts (change-over contacts)

2

Product category

ETR2 timing relays

Suitable for

DIN rail (top hat rail) mounting

Time range - max

100 s

Time range - min

0.05 s

Type

Timer relay

Voltage type

AC/DC

Rated control supply voltage (Us) at AC, 50 Hz - max

240 V

Rated control supply voltage (Us) at AC, 50 Hz - min

24 V

Rated control supply voltage (Us) at AC, 60 Hz - max

240 V

Rated control supply voltage (Us) at AC, 60 Hz - min

24 V

Rated control supply voltage (Us) at DC - max

240 V

Rated control supply voltage (Us) at DC - min

24 V

HS Code

8536.90
