Eaton

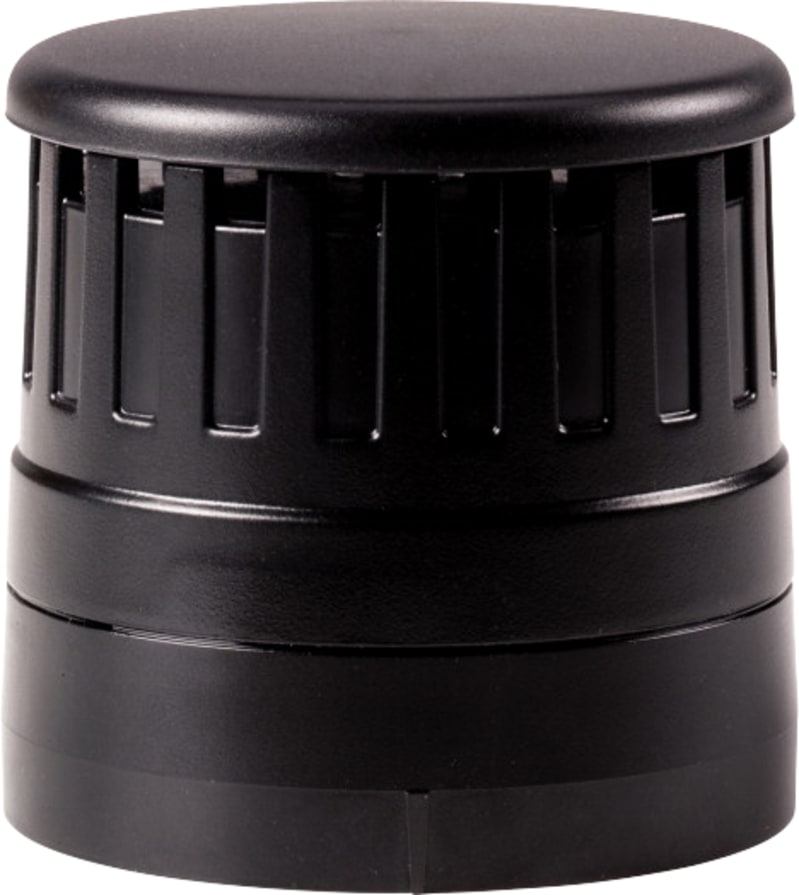

Akuplug, 24V, Constant/Pulse (SL7-AP24)
Part numberSL7-AP24EAN / GTIN4015081678105HS code8531.80
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Akuplug, 24V, Constant/Pulse (SL7-AP24) is listed in the cBallast industrial catalogue. HS code: 8531.80.
Technical Specifications
- Manufacturer part number (MPN)
- SL7-AP24 EAN / GTIN: 4015081678105 Sales unit: pcs Eaton catalogue number: 171281 Depth: 73 mm Height: 71 mm Width: 73 mm Weight: 0.091 kg Certifications: IEC/EN 60529; CSA-C22.2 No. 14-10; CSA-C22.2 No. 94-91; UL File No.: E29184; CSA Class No.: NKCR7; CE; UL 508; UL Category Control No.: NKCR; IEC/EN 60947-5-1; UL report applies to both US and Canada; Certified by UL for use in Canada; UL Ambient operating temperature - max: 60 °C Ambient operating temperature - min: -30 °C Climatic proofing: Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30 Leakage current: 0.003 A Rated insulation voltage (Ui): 250 V Rated operational current (Ie) - max: 92 mA Rated operational voltage (Ue) at AC - max: 24 V Rated operational voltage (Ue) at AC - min: 24 V Rated operational voltage (Ue) at DC - max: 24 V Rated operational voltage (Ue) at DC - min: 24 V Color: Black Features: Sound pressure adjustable to a minimum of 88 dB Functions: Continuous tone/pulse tone Alarm type: Internal sound setting, 1 pole DIP; Continuous tone; Tone adjustable; Pulsed tone; 2 types of sound Connection to SmartWire-DT: No Current consumption: 0.092 A, at 24 V AC/DC Degree of protection: IP66; NEMA 13 Frequency rating: 2800 Hz Loudness: 100 dB; Can be adjusted with built-in potentiometer material: Enclosure: Polycarbonate (PC); Cap: Polycarbonate (PC) Mounting position: Place only at the highest position on a pole; As required Overvoltage category: III Pollution degree: 3 Product Category: SL signal towers Radiation angle: 360 ° Rated impulse withstand voltage (Uimp): 4000 V AC Shock resistance: Mechanical, According to IEC/EN 60068-2-27; 15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms Type: Acoustic module Voltage type: AC/DC Colour: Black Outer diameter: 73 mm Tone adjustable: Yes Operating voltage AC 50 Hz: 24 V Operating voltage AC 60 Hz: 24 V Operating voltage DC: 24 V Country of origin: Austria
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 4015081678105
- SAP 1000492316
- Code 8951754
Product Documentation
Document preview: Akuplug, 24V, Konstant/Puls (SL7-AP24) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Earth cable 4MM3, 420mm
XNAE4-42
Eaton
Currentrail 20X5X2000,M6 274
BPZ-BB/T-20/5/2000
Eaton
MUSHROOM PUSHBUTTON, IMP, Yellow
M22-DP-Y
Eaton
Residual current circuit breaker 63A 4P 300MA F (187440)
Eaton
Eaton 9PX 6000I RT3U Netpack
9PX6KiRTN
Eaton
LED flashing light, BLUE, 120V (SL4-BL120-B)
Eaton
Cable Fixing Bracket FAZ B600
XADB06
Eaton
LED flashing light, Red, 120V (SL7-BL120-R)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy SL7-AP24?
- SL7-AP24 can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is SL7-AP24.
- What is the HS code for SL7-AP24?
- The customs tariff (HS) code for SL7-AP24 is 8531.80.
- Who manufactures SL7-AP24?
- SL7-AP24 is a Eaton product in the SC001261 range.
- Is a datasheet available for SL7-AP24?
- Yes — the SL7-AP24 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for SL7-AP24?
- The minimum order quantity is 1.
- Is SL7-AP24 available?
- Yes — SL7-AP24 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
