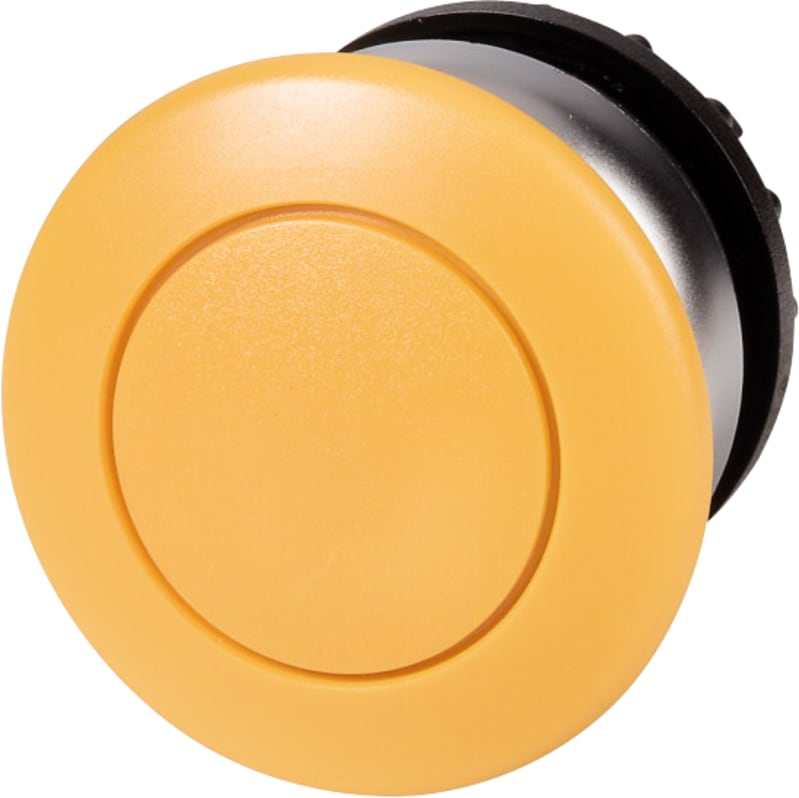

MUSHROOM PUSHBUTTON, IMP, Yellow
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton MUSHROOM PUSHBUTTON, IMP, Yellow (part number M22-DP-Y) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 5 pcs; Eaton catalogue number: 216718; Depth: 37 mm; Height: 43 mm; Width: 37 mm.
Technical Specifications
- Manufacturer part number (MPN)
- M22-DP-Y
- EAN / GTIN
- 4015082167189
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 216718
- Depth
- 37 mm
- Height
- 43 mm
- Width
- 37 mm
- Weight
- 0.016 kg
- Compliances
- CE Marked
- Certifications
- IEC 60947-5; EN 60947-5; UL 508; CSA Std. C22.2 No. 94-91; CSA Std. C22.2 No. 14-05; VDE; CSA-C22.2 No. 94-91; IEC/EN 60947-5; VDE 0660; CSA Class No.: 3211-03; UL Category Control No.: NKCR; CSA-C22.2 No. 14-05; CE; UL; IEC/EN 60947; CSA; CSA File No.: 012528; UL File No.: E29184; DNV; GL; LR
- Actuating force
- 5 N
- Actuator color
- Yellow
- Actuator function
- Spring-return; Momentary
- Bezel color
- Titanium
- Bezel material
- Plastic
- Design
- Mushroom-shaped; Classical
- Fitted with
- Front ring
- Inscription
- Blank
- Lens type
- Round
- Unlocking method
- None
- Ambient operating temperature - max
- 70 °C
- Ambient storage temperature - max
- 80 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082167189
- SAP 1000045644
- Code 8783113
Product Documentation
More from Eaton
Eaton
Residual current circuit breaker 63A 4P 300MA F (187440)
Eaton
Eaton 9PX 6000I RT3U Netpack
9PX6KiRTN
Eaton

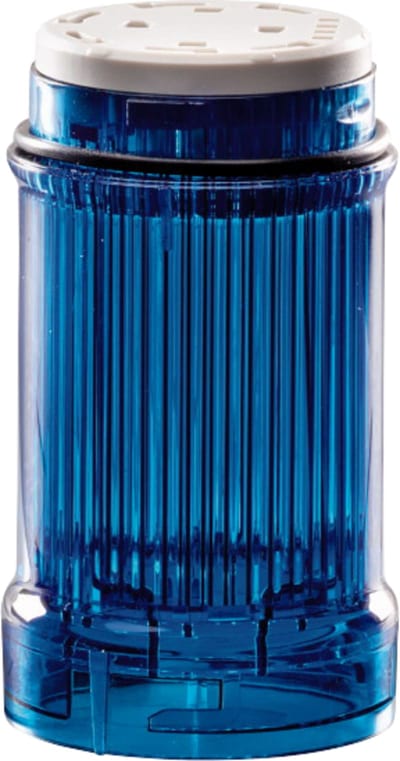

LED flashing light, BLUE, 120V (SL4-BL120-B)
Eaton
Cable Fixing Bracket FAZ B600
XADB06
Eaton

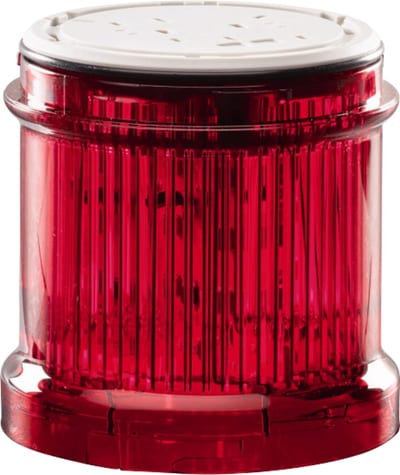

LED flashing light, Red, 120V (SL7-BL120-R)
Eaton

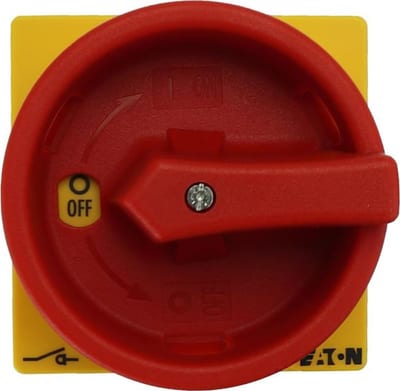

Safety Switch,P1-40/M4/SVB
Eaton
Gauge Screw 50A D3, E33
50GD33
Eaton

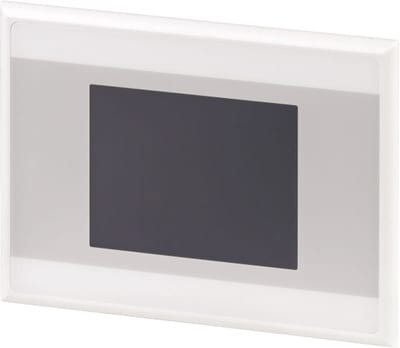

3.5"TFT,Color,res.,QVGA,RS232, (XV102B535TQR10)
