Voltage monitoring relay

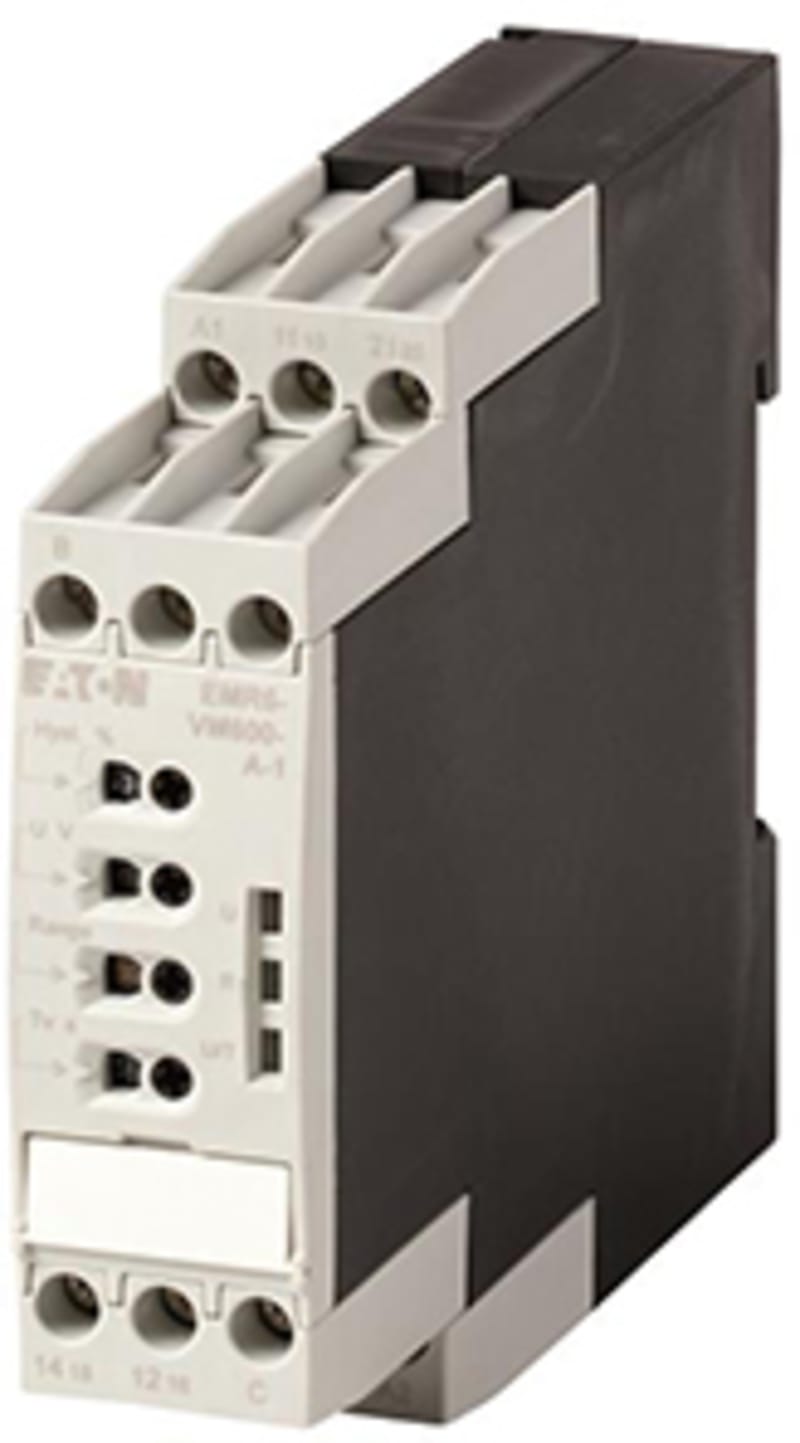

Eaton Voltage monitoring relay (part number EMR6-VM600-A-1) is listed under Control & Automation / Monitoring Relays. Sales unit: pcs; Eaton catalogue number: 184784; Depth: 103.7 mm; Height: 85.6 mm; Width: 22.5 mm; Weight: 0.154 kg.

Manufacturer part number (MPN)

EMR6-VM600-A-1

EAN / GTIN

4015081788200

Sales unit

pcs

Eaton catalogue number

184784

Depth

103.7 mm

Height

85.6 mm

Width

22.5 mm

Weight

0.154 kg

Certifications

UL508; EAC; RMRS; CCC; RCM; CSA-C22.2 No. 14; GL

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

85 °C

Ambient operating temperature - min

-25 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30

Air discharge

Air/contact discharge, according to IEC/EN 61000-4-2, level 3

Burst impulse

According to IEC/EN 61000-4-4, level 3

Electromagnetic compatibility

According to IEC/EN 60947-6-2

Immunity to line-conducted interference

Level 3 (according to IEC/EN 61000-4-6)

Immunity to radiation

Level 3 (according to IEC/EN 61000-4-3)

Surge rating

According to IEC/EN 61000-4-5 Level 4

Electric connection type

Screw connection

Functions

Single-phase under voltage possible; DC-under voltage; Single-phase over voltage possible; DC-over voltage

Monitoring function

Undervoltage; Overvoltage

Voltage measurement - max

600 V

Voltage measurement - min

3 V

Degree of protection

Enclosure: IP50; Terminals: IP20

LED indicator

Status indication of energized output relay: Yellow LED; Status indication of Supply voltage: Yellow LED; Status indication of errors: Red LED; Other states depending on fault (see IL): Measured value; Status indication of Supply voltage: Green, solid light

Lifespan, mechanical

30,000,000 Operations

Mounting position

As required

Overvoltage category

III

Pollution degree

3

Product Category

EMR Measuring and monitoring relays

Rated impulse withstand voltage (Uimp)

4000 V AC

Shock resistance

Class 2

Type

Voltage monitor

Voltage type

AC/DC

Hysteresis

3 - 30 %

Threshold value

3 V AC, Min. undervoltage response value; 3 V AC, Min. overvoltage response value; 600 V AC, Max. undervoltage response value; 600 V AC, Max. overvoltage response value

Duty factor

100 %, Power supply

Power consumption

2.6 VA

Rated control supply voltage (Us) at AC, 50 Hz - max

240 V

Rated control supply voltage (Us) at AC, 50 Hz - min

24 V

Rated control supply voltage (Us) at AC, 60 Hz - max

240 V

Rated control supply voltage (Us) at AC, 60 Hz - min

24 V

Rated control supply voltage (Us) at DC - max

240 V

Rated control supply voltage (Us) at DC - min

24 V

Rated frequency - max

60 Hz

Rated frequency - min

50 Hz

Supply voltage

24 - 240 V AC, 50/60 Hz; 24 - 240 V DC

Voltage tolerance

0.85 x Uc; 1.1 x Uc

Lifespan, electrical

100,000 Operation (at 230 V, AC-12, 4 A)

Number of contacts (change-over contacts)

2

Number of contacts (normally closed contacts)

0

Number of contacts (normally open contacts)

0

Connection type

Snap fixing, top-hat rail IEC/EN 60715

Screwdriver size

5.5 x 0.8 mm, Terminal screw

Terminal capacity (flexible with ferrule AWG)

2 x 18-16

Terminal capacity (flexible with ferrule)

2 x 0.5-1.5 mm²

Terminal capacity (solid AWG)

18 - 14

Terminal capacity (solid)

1 x 0.5-2.5 mm²

Tightening torque

Min. 0.5 Nm, Screw terminals; 0.8 Nm, Screw terminals

Delay time

Adjustable from 0.1 - 30 s, Response delay time

Timing cycle

Adjustable from 0.1 – 30 s, Reset delay/Off-delay time

Operating voltage AC 50 Hz

24–240 V

Operating voltage AC 60 Hz

24–240 V

Operating voltage DC

24–240 V

External power supply required

No

Supply voltage AC 50 Hz

24–240 V

Supply voltage AC 60 Hz

24–240 V

Supply voltage DC

24–240 V

Rated switch current

4 A

Type of electric connection

Screw connection

With detachable clamps

No

Single-phase under voltage possible

Yes

Three-phase under voltage possible

No

Single-phase overvoltage possible

Yes

Three-phase overvoltage possible

No

Single-phase hysteresis possible

No

Three-phase hysteresis possible

No

Contains function DC-under voltage

Yes

Contains function DC overvoltage

Yes

Contains function DC-voltage hysteresis

No

Voltage measuring range 1

3–600 V

Type of voltage measuring range

AC/DC

Rated control supply voltage AC 50 Hz

24–240 V

Rated control supply voltage AC 60 Hz

24–240 V

Rated control supply voltage DC

24–240 V

Voltage type for actuating

AC/DC

Response value voltage

3–600 V

Min. adjustable delay-on energization time

0.1 s

Max. permitted delay-on energization time

30 s

Number of contacts as change-over contact

2

Country of origin

Germany

Min. adjustable off-delay time

0 s

HS Code

8536.49
