Eaton
OVERVOLTAGE PROTECTION Complete 1P 460VAC 20KA
Part numberSPCT2-460/1EAN / GTIN4015081640676HS code8536.50
Switchgear & Protection
Surge Protectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton SPCT2-460/1 Surge protection device, 1-pole, plug-in, complete IT *.
Technical Specifications
- Manufacturer part number (MPN)
- SPCT2-460/1
- EAN / GTIN
- 4015081640676
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Eaton catalogue number
- 167608
- Depth
- 80 mm
- Height
- 67 mm
- Width
- 17.5 mm
- Weight
- 0.103 kg
- Compliances
- RoHS conform
- Certifications
- CE
- Features
- Category type 2
- System configuration type
- Other; TN; TN-S
- Application
- Open areas Residential buildings Utility buildings
- Type
- Surge arrester
- Continuous voltage at AC - max
- 460 V
- Discharge surge current (8/20) - max
- 40 kA
- Nominal discharge surge current (8/20)
- 20 kA
- Nominal voltage at AC
- 460 V
- Signalling at the device
- Optic
- Voltage protection level
- 2.2 KV
- Conductor cross section (flexible, fine-strand) - max
- 35 mm²
- Conductor cross section (flexible, fine-strand) - min
- 35 mm²
- Conductor cross section (solid, solid-strand) - max
- 25 mm²
- Conductor cross section (solid, solid-strand) - min
- 25 mm²
- Degree of protection
- IP20
- Frame
- 1 modular spacing
- Mounting method
- DIN rail (top hat rail) 35 mm
- Number of conductors without earthing
- 1
- Number of poles
- 1P
- System configuration DC
- No
- System configuration IT
- No
- System configuration TN
- Yes
- System configuration TN-C
- No
- System configuration TT
- No
- System configuration other
- Yes
- Number of conductors (without earthing)
- 1
- Max. discharge surge current (8/20)
- 40 kA
- Short-circuit-proof
- No
- Nominal voltage AC
- 460 V
- Max. continuous voltage AC
- 460 V
- Max. overcurrent protection device, series connection (fuse)
- 125 A
- Integrated short-circuit protection
- No
- Integrated backup fuse
- No
- Leakage-current free
- No
- Construction size
- 1 modular spacing
- Max. conductor cross section solid (solid, stranded)
- 25 mm²
- With remote signalling contact
- No
- Category type 2
- Yes
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015081640676
- SAP 1000336158
- Code 8367552
Product Documentation
Document preview: OVERSP.PROTECTION COMPLETE 1P 460VAC 20KA (SPCT2-460/1) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Triangular key 7mm (Y7-255312)
Eaton
Contactor DILM9-10(24VDC)-PI
Eaton
Enclosure for cam switch
CI-K2-T3-4
Eaton
MCB 10A 1P/C DC (PLS6-C10-DC)
Eaton
Residual current circuit breaker 40A 4P 100MA F (187433)
Eaton
variable-frequency drive, DM1-323D0EB-N20B-EM
3-5017-006A
Eaton
Mechanical Interlock (281581)
Eaton

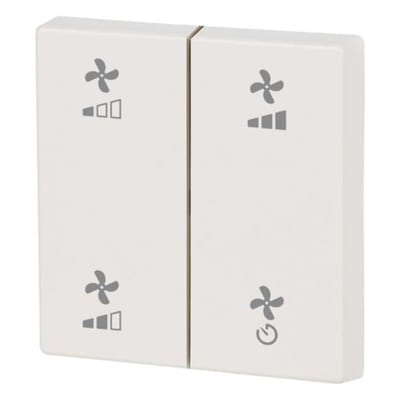

Eaton Double Rocker Matt Alpine White
