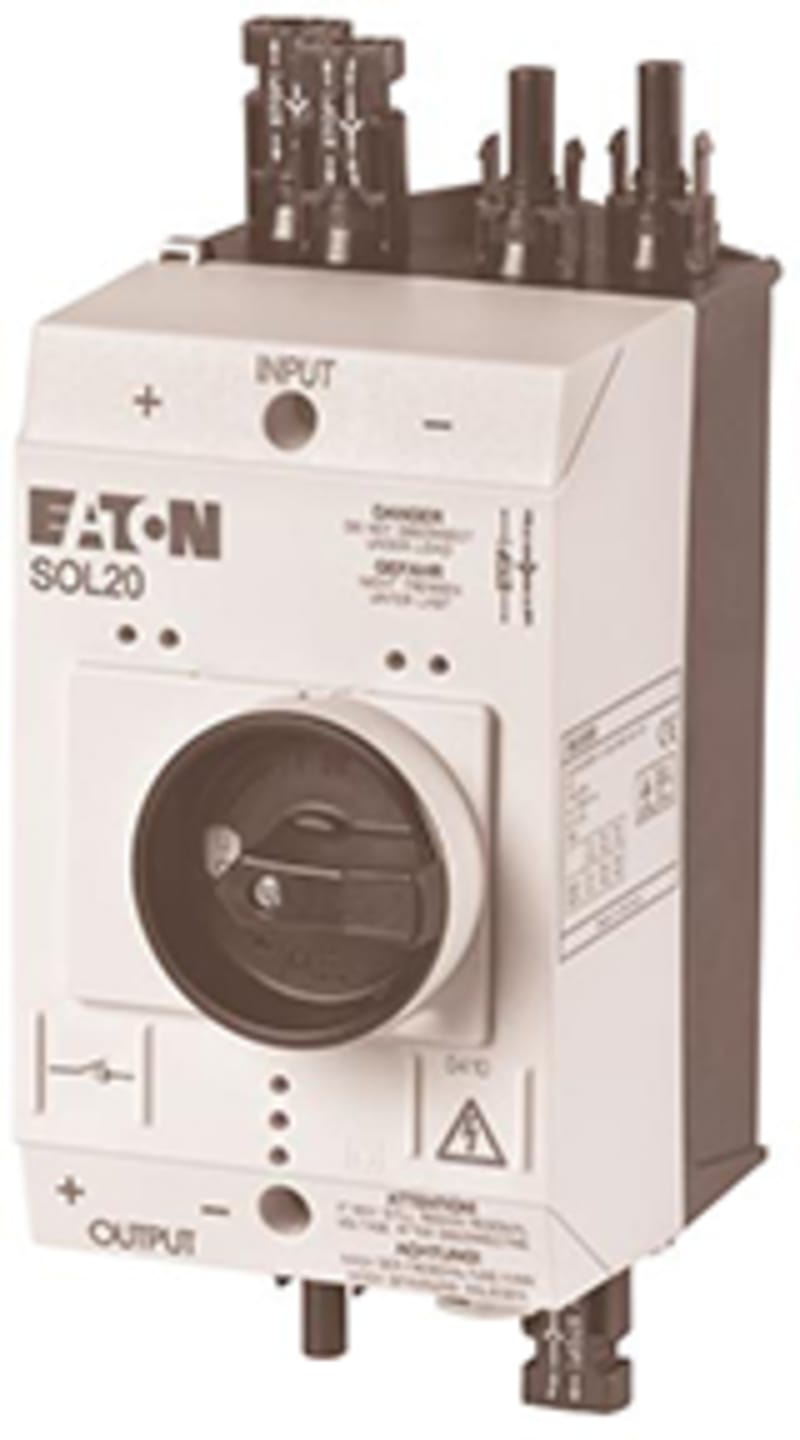

Isolating switch, DC current, 20A, 2 strenger
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Isolating switch, DC current, 20A, 2 strenger (part number SOL20/2MC4) is listed under Switchgear & Protection / Disconnect Switches. HS code: 8536.90; Sales unit: pcs; Eaton catalogue number: 120915; Depth: 234 mm; Height: 130 mm; Width: 100 mm.
Technical Specifications
- Manufacturer part number (MPN)
- SOL20/2MC4
- EAN / GTIN
- 4015081187454
- HS code
- 8536.90
- Sales unit
- pcs
- Eaton catalogue number
- 120915
- Depth
- 234 mm
- Height
- 130 mm
- Width
- 100 mm
- Weight
- 0.888 kg
- Certifications
- IEC/EN 60947-3
- Catalog Notes
- MC4 connector (Stäubli)
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Number of auxiliary contacts (change-over contacts)
- 0
- Number of auxiliary contacts (normally closed contacts)
- 0
- Number of auxiliary contacts (normally open contacts)
- 0
- Rated operational current (Ie) at DC-21A
- 20 A
- Rated operational voltage (Ue) at AC - max
- 1000 V
- Rated operational voltage (Ue) at AC - min
- 1000 V
- Rated uninterrupted current (Iu)
- 20 A
- Resistance
- 8 mΩ (internal)
- Actuator color
- Black
- Actuator type
- Toggle
- Design
- Enclosed
- Features
- Isolating characteristics
- Fitted with
- Voltage release optional
- Locking facility
- Lockable in the 0 (Off) position
- Number of poles
- Two-pole
- Connection type
- MC4, Outputs; MC4, Inputs
- Degree of protection
- NEMA Other
- Degree of protection (front side)
- IP65
- Lifespan, electrical
- 1,500 Operations
- Lifespan, mechanical
- 100,000 Operations
- Mounting position
- As required
- Operating frequency
- 120 Operations/h
- Product Category
- Switchgear for photovoltaic systems
- Protection class
- 2
- Suitable for
- Ground mounting; Floor mounting
- Rated short-circuit making capacity (Icm)
- 0.32 kA (up to 440 V, 50/60 Hz)
- Rated short-time withstand current (Icw)
- 0.36 kA
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081187454
- SAP 1000768292
- Code 81171731
Product Documentation
More from Eaton
Eaton
Eaton NZM2-XKSAE
Eaton
OVERVOLTAGE PROTECTION Complete 1P 460VAC 20KA
SPCT2-460/1
Eaton
Triangular key 7mm (Y7-255312)
Eaton
Contactor DILM9-10(24VDC)-PI
Eaton
Enclosure for cam switch
CI-K2-T3-4
Eaton
MCB 10A 1P/C DC (PLS6-C10-DC)
Eaton
Residual current circuit breaker 40A 4P 100MA F (187433)
Eaton
variable-frequency drive, DM1-323D0EB-N20B-EM
3-5017-006A
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy SOL20/2MC4?
- SOL20/2MC4 can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is SOL20/2MC4.
- What is the HS code for SOL20/2MC4?
- The customs tariff (HS) code for SOL20/2MC4 is 8536.90.
- Who manufactures SOL20/2MC4?
- SOL20/2MC4 is a Eaton product in the Switchgear & Protection range.
- Is a datasheet available for SOL20/2MC4?
- Yes — the SOL20/2MC4 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for SOL20/2MC4?
- The minimum order quantity is 1.
- Is SOL20/2MC4 available?
- Yes — SOL20/2MC4 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
