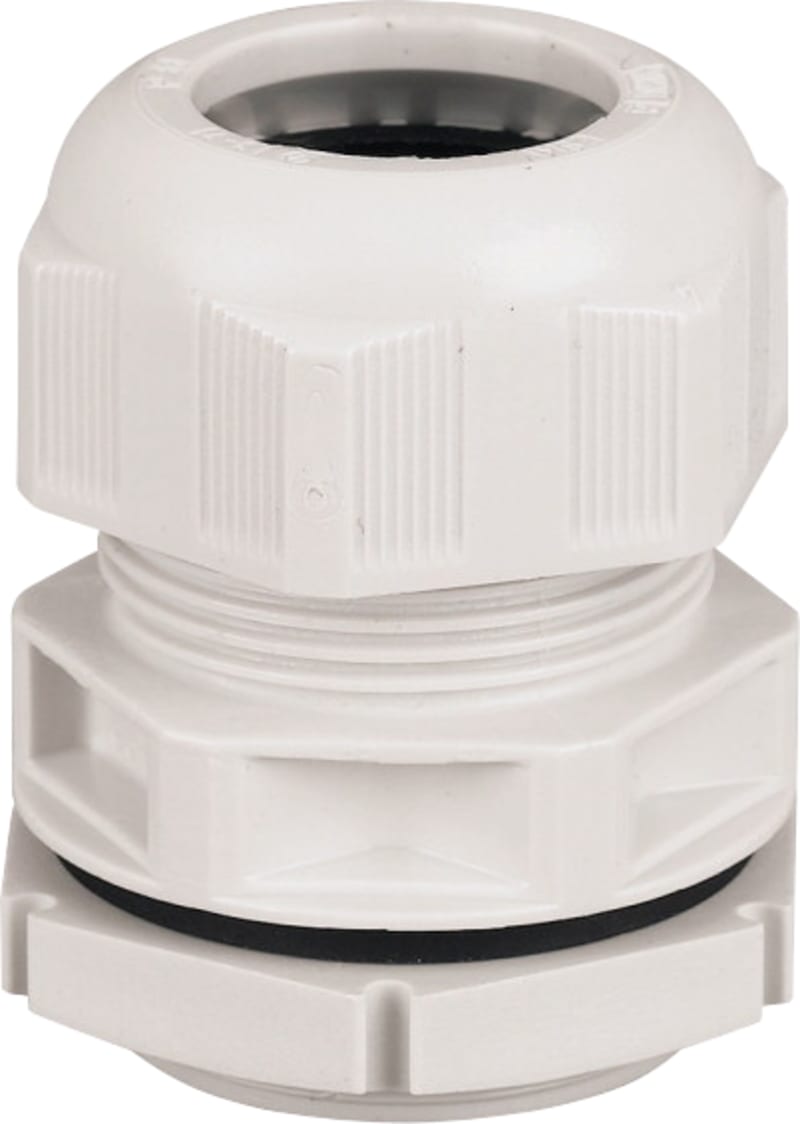

Eaton V-M20 Cable Gland Nipple M20, IP68

Eaton V-M20 is an M20 cable gland nipple for modular enclosures, rated IP68 and supplied with lock nut and integrated strain relief. It suits cable diameters from 6 to 13 mm and is moulded in halogen-free polyamide with a flammability rating of V2 to UL94. Thread length 10 mm, 30 mm wrench flats, pack of 20 pieces (Eaton catalogue number 206910).

Manufacturer part number (MPN)

V-M20

EAN / GTIN

4015082069100

Sales unit

pcs

Package quantity

20 pcs

Eaton catalogue number

206910

Depth

140 mm

Height

85 mm

Width

81 mm

Weight

15 g

Compliances

RoHS conform

Certifications

IEC/EN 60947; VDE 0660

Catalog Notes

OBSOLETE SEE SUPERSEDURE

Used with

Cable glands; H05VV-F 2.5 mm² (4x) or 4 mm² (3x); NYM 1.5 mm² (5x) or 2.5 mm² (5x); General switchboard accessory; Accessory

Pollution degree

3

NEMA Rating

UL/CSA Type 3R, 4X, 12, 13; 1

Surface finishing

RAL 7035, light gray

Special features

Flammability classification V2 according to UL94 with lock nut and built-in strain relief with lock nut and built-in strain relief

Type

Accessory General switchboard accessory

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Connection to SmartWire-DT

No connection to SmartWire-DT

Chemical resistance

Resistant against: acetone, petrol, paraffin, diesel, grease, oil, solvent for paints and varnishes

Material

Plastic; Polyamide; Halogen free

Color

Gray

Mounting position

As required

Nominal thread size Metric/PG

20

Nominal thread size inch/gas pipe thread

Other

Pitch thread

1.5 mm

Thread Length

10 mm

Wrench width

30 mm

Suitable for cable diameter - max

13 mm

Suitable for cable diameter - min

6 mm

Material quality

Polyamide (PA)

Surface protection

Untreated

Degree of protection (IP)

IP68

Model

Straight

Type of sealing

Cut-out ring

For ex-zone gas

None

For ex-zone dust

None

Overvoltage category

III

Temperature resistance

-20 °C - 100 °C, short-time up to approx. 120 °C

Fitted with

Strain Relief; Locknut

Flammability characteristics (UL)

V2 (UL94)

Lamp type included

Halogen Free

Flame retardant

Glow wire test 750 °C according to EN 60695-2-11

Thread type

Metric

Protection, proofing and resistance

Shock Resistant

Accessory/spare part type

Cable management; Cable screw gland

Stress fracture risk

Low

Unit type

Single unit

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Opening diameter

20.5 mm

Operating temperature - max

120 °C

Operating temperature - min

-20 °C

Outer cable diameter - max

13 mm

Outer cable diameter - min

6 mm

RAL-number

7035

Rated insulation voltage (Ui)

500 V

Cable entry type

M20

For wall thickness - min

0.5 mm

For wall thickness - max

2.5 mm

Connection type to housing

Screwing

Type of strain relief according to EN 62444

Type A

Material sealing

Ethylene-propylene diene monomer rubber (EPDM)

For wall thickness

0.5–2.5 mm

Pressure-compensating

No

Suitable for cable diameter

6–13 mm

Halogen free

Yes

Glass-fibre reinforced

No

Shock resistant

Yes

Bend radius protection/trumpet flare

No

With locknut

Yes

Snapping in opening

No

Multi seal area

No

Flat cable coupling

No

With strain relief

Yes

Separable screw gland

No

Operating temperature

-20–120 °C

Explosion-tested version

No

For armoured cable

No

EMC-version

No

Screened

No

Colour

Grey

Country of origin

Germany

HS Code

3926.90
