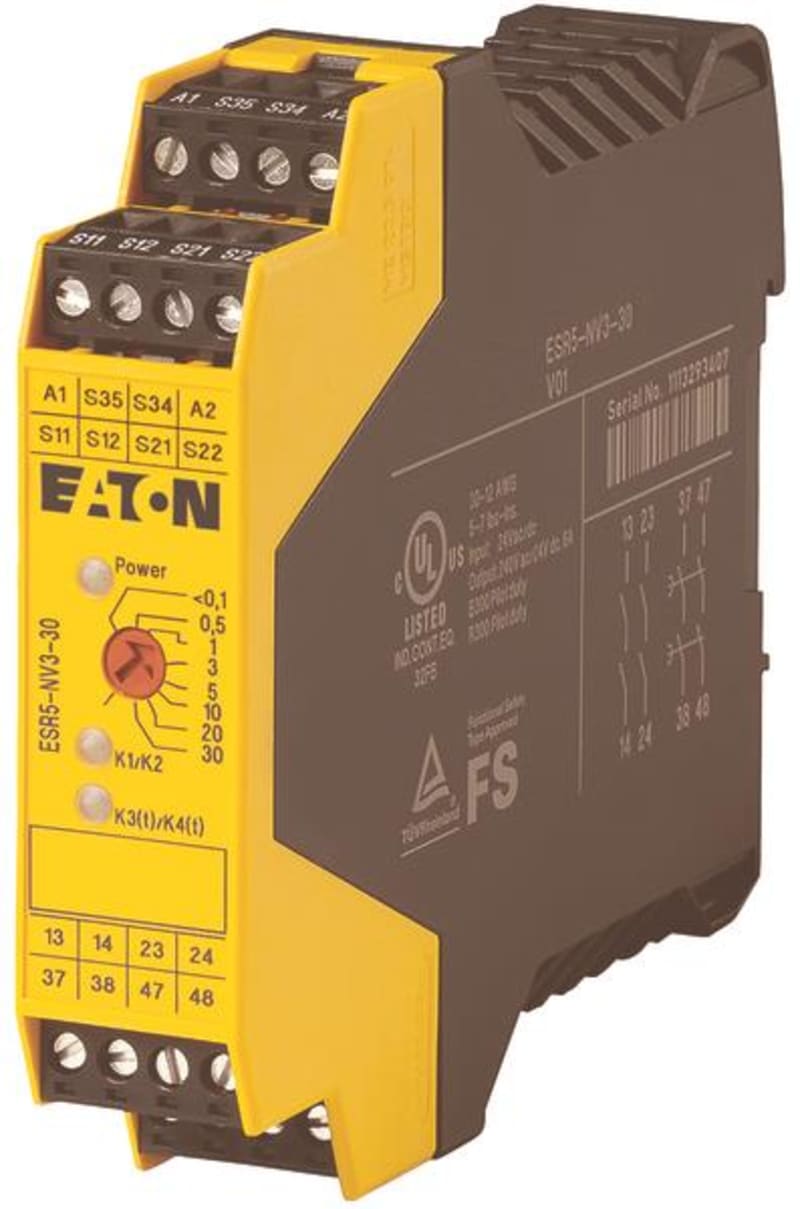

Safety Relay ESR5-NV3-30

Eaton ESR5-NV3-30 Safety Relay emergency stop, 24 V DC, 4 veier(2del.).

Manufacturer part number (MPN)

ESR5-NV3-30

EAN / GTIN

4015081168453

Sales unit

pcs

Eaton catalogue number

118705

Depth

114.5 mm

Height

99 mm

Width

22.5 mm

Weight

0.171 kg

Mounting position

As required

Prooftest

240 Months (High Demand)

Switching capacity

3 A at 3600 O/h, DC-13 at 24 V, Outputs; 5 A at 3600 O/h, AC-15 at 230 V, Outputs; 0.4 W; In accordance with IEC 60947-5-1, Outputs

Vibration resistance

10 - 150 Hz

Amplitude

0.15 mm

Acceleration

2 g, (IEC/EN 60068-2-6)

Air pressure

795 - 1080 hPa (operation)

Altitude

Max. 2000 m

Ambient operating temperature - max

45 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-20 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Dry heat to IEC 60068-2-2; Damp heat, constant, to IEC 60068-2-3; Cold to EN 60068-2-1

Environmental conditions

Clearance in air and creepage distances according to EN 60947-1, UL 508, CSA C22.2

No. 14-95; Condensation

Non-condensing

Operating temperature - max

45 °C

Operating temperature - min

-20 °C

Relative humidity

< 75 %

Static heat dissipation, non-current-dependent Pvs

7.8 W

Inrush current

0.025 - 6 A

Power supply circuit

1.8 W (DC operated)

Rated control supply voltage (Us) at AC

50 Hz - max

26.4 V

Rated control supply voltage (Us) at AC

Rated control supply voltage (Us) at AC

60 Hz - max

26.4 V

Rated control supply voltage (Us) at AC

60 Hz - min

20.4 V

Rated control supply voltage (Us) at DC - max

24 V

Rated insulation voltage (Ui)

250 V

Rated operational voltage

24 V DC (power supply); Approx. 24 V DC at input, starting and feedback circuit; 230 V AC

Short-circuit current

0.1 A, Input data

Short-circuit protection

Fuse 10 A gL/gG NEOZED, For output circuits, External

Short-circuit protection rating

10A gL/gG, NEOZED (N/O), Output fuse, External, Output data; 6A gL/gG, NEOZED (N/C), Output fuse, External, Output data

Electric connection type

Screw connection

Features

Automatic start; Manual start; Basic insulation; 2 Non-delayed enable current paths

Fitted with

Approval for TÜV; Start input; Selectable cross-circuit detection; Detachable clamps; Feedback circuit; Approval according to UL

Functions

1-channel; 2-channel; Time function

Material

Contacts: silver tin oxide, gold plated (AgSnO2

0.2 µm Au); Enclosure

Polyamide (PA), not reinforced

Connection type

M3 screw terminals

Current consumption

75 mA, DC

Degree of protection

Terminals: IP20; IP20; Installation location: ≥ IP54; Enclosure: IP20

Duty factor

100 %

Emitted interference

According to EN 61000-6-4

Interference immunity

According to EN-61000-6-2; According to EN 662061_x

LED indicator

Status indication of SmartWire-DT network: Green LED

Lifespan, mechanical

10,000,000 Operations

Lifetime

240 month

Model

Basic device

Mounting method

Top-hat rail fixing (according to IEC/EN 60715, 35 mm); Rail mounting possible

Mounting width

22.5 mm

Overvoltage category

III

Pollution degree

2

Power loss

Normally 7.8 W

Product category

Electronic safety relays

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

4000 V AC

Recovery time

330 ms (restart)

Safety parameter (EN ISO 13849-1)

400,000 switching cycles, B10d; Cat. 4, Category; PL e, Performance level

Safety parameter (IEC 62061)

SIL 3 only for high demand requirements, Safety integrity level; Cat. 4, Category; 18 x 10-10, PFHd, Probability of failure per hour; SIL 3, Safety integrity level; SILCL 3, Safety integrity level claim limit; SIL 3, Safety integrity level, In accordance with IEC 61508

Stop category (IEC 60204)

0; 1

Switching frequency

Max. 0.5 Hz, Input data

Type

Emergency stop category 1; emergency switching off Feedback circuit Light curtain Protective door

Voltage type

DC

Input

∞ ms, Simultaneity for inputs 1/2

Nominal current

3.5 A

Number of inputs

One- and two-channel

Number of outputs (safety related, delayed) with contact

2

Number of outputs (safety related, undelayed) with contact

2

Number of outputs (signaling function, delayed) with contact

0

Number of outputs (signaling function, undelayed) with contact

0

Off-delay

0.1 - 30 s (± 40 %, K3, K4 adjustable)

Permissible total cable resistance

500 Ω (input and starting circuits for UN)

Pick-up time

150 ms typ. (at Uₑ in automatic mode); 150 ms typ. (controlled start, K1, K2 - for UN manual operation); 150 ms typ. (controlled start, K1, K2 - for UN automatic mode); 150 ms typ. (at Uₑ in manual mode)

Quadratic summation current

55 A² (ITH² = I1² + I2² + I3² + I4² + I5²)

Reset time

Normally 100 ms (delayed contacts); 20 ms (non-delayed contacts)

Resistance

500 Ω (impedance)

Switching voltage

250 V

Uninterrupted current

6 A N/O, Limiting continuous current; 6 A N/C, Limiting continuous current

Screwdriver size

3.5 x 0.6 mm, Terminal screw; 2, Terminal screw, Pozidriv screwdriver

Stripping length (main cable)

7 mm

Terminal capacity

2 x (0.2 – 1) mm², solid; 24 - 12 AWG, solid or stranded; 1 x (0.2 – 2.5) mm², solid; 2 x (0.25 – 1) mm², flexible with ferrule; 1 x (0.25 – 2.5) mm², flexible with ferrule

Tightening torque

0.6 Nm, Screw terminals

Operating voltage DC

24 V

Power consumption

7.8 W

Supply voltage DC

24 V

Rated switch current

5 A

Control voltage 1

24 V

Control voltage 2

24 V

Type of control voltage 1

DC

Type of control voltage 2

DC

Suitable for monitoring of position switches

Yes

Suitable for monitoring of emergency-stop circuits

Yes

Suitable for monitoring of valves

No

Suitable for monitoring of tactile sensors

No

Suitable for monitoring of magnetic switches

No

Suitable for monitoring of proximity switches

No

Type of electric connection

Screw connection

Suitable for rail mounting

Yes

Rated control supply voltage AC 50 Hz

0–26.4 V

Voltage type for actuating

DC

With detachable clamps

Yes

Evaluation inputs

One- and two-channel

With start input

Yes

With muting function

No

With feedback circuit

Yes

Release-delay

0.1–30 s

Number of outputs, safety related, undelayed, with contact

2

Number of outputs, safety related, delayed, with contact

2

Type of safety according to IEC 61496-1

None

Stop category according to IEC 60204

1

HS Code

8536.49
