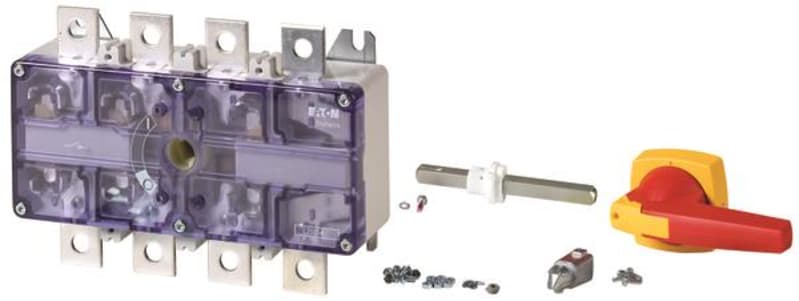

Safety Switch (DMV-250/3/M4/P-R)

Eaton Safety Switch (DMV-250/3/M4/P-R) is listed under Switchgear & Protection / Disconnect Switches. Sales unit: pcs; Eaton catalogue number: 6094966; Depth: 63 mm; Height: 135 mm; Width: 205 mm; Weight: 1.6 kg.

Manufacturer part number (MPN)

DMV-250/3/M4/P-R

EAN / GTIN

8711426210035

Sales unit

pcs

Eaton catalogue number

6094966

Depth

63 mm

Height

135 mm

Width

205 mm

Weight

1.6 kg

Certifications

IEC/EN 60204; CE; KEMA; RoHS; Lloyds; IEC/EN 60947; EAC; VDE 0660; IEC/EN 60947-3

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-30 °C

Number of auxiliary contacts (change-over contacts)

0

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Equipment heat dissipation, current-dependent Pvid

4.5 W

Heat dissipation per pole, current-dependent Pvid

3.75 W

Rated operational current for specified heat dissipation (In)

250 A

Rated breaking capacity at 400/415 V (cos phi to IEC 60947-3)

2000 A

Rated breaking capacity at 500 V (cos phi to IEC 60947-3)

1760 A

Rated breaking capacity at 660/690 V (cos phi to IEC 60947-3)

1120 A

Rated insulation voltage (Ui)

1000 V

Rated operational current (Ie) at AC-21, 400 V, 415 V

250 A

Rated operational current (Ie) at AC-21, 500 V

250 A

Rated operational current (Ie) at AC-21, 690 V

250 A

Rated operational current (Ie) at AC-22, 380 V, 400 V, 415 V

250 A

Rated operational current (Ie) at AC-22, 500 V

250 A

Rated operational current (Ie) at AC-22, 690 V

250 A

Rated operational current (Ie) at AC-23A, 400 V, 415 V

250 A

Rated operational current (Ie) at AC-23A, 500 V

220 A

Rated operational current (Ie) at AC-23A, 690 V

140 A

Rated operational power at AC-23A, 400 V, 50 Hz

250 kW

Rated operational power at AC-23A, 500 V, 50 Hz

160 kW

Rated operational power at AC-23A, 690 V, 50 Hz

132 kW

Rated operational voltage (Ue) at AC - max

690 V

Rated uninterrupted current (Iu)

250 A

Uninterrupted current

Rated uninterrupted current Iu is specified for max. cross-section.

Features

Version as main switch; Version as emergency stop installation; Version as maintenance-/service switch; Version as safety switch

Fitted with

Red rotary handle and yellow locking ring

Functions

Interlockable; Emergency switching off function

Locking facility

Lockable in the 0 (Off) position

Locking mechanism

Padlocking feature SVC

Number of poles

Three-pole

Accessories

Auxiliary contact fitted by user.

Actuator color

Red

Actuator type

Long turning handle

Connection type

9 mm connection hole

Degree of protection

NEMA Other

Degree of protection (front side)

IP20

Lifespan, mechanical

10,000 Operations

Mounting method

Rear mounting

Mounting position

As required

Overvoltage category

III

Pollution degree

3

Product Category

Main switch Switch-disconnector

Rated impulse withstand voltage (Uimp)

8000 V

Safety parameter (EN ISO 13849-1)

B10d values as per EN ISO 13849-1, table C.1

Suitable for

Intermediate mounting; Ground mounting

Switching angle

90 °

Breaking current

40 kA (at In = 500); 33 kA (at In = 250)

Light-through energy

Max. 380 kA²s (at In = 250); Max. 1700 kA²s (at In = 500)

Rated conditional short-circuit current (Iq)

100 kA at In = 250; 50 kA

Rated short-time withstand current (Icw)

12 kA; 12 kA, Contacts, 1 second

Short-circuit protection rating

500/250, Fuse, Contacts

Screw size

M8 x 20, Terminal screw

Stripping length (main cable)

21 mm

Terminal capacity

120 mm², Flat conductor connection with busbars

Tightening torque

14 Nm, Screw terminals

Country of origin

Netherlands

HS Code

8536.50
