Eaton

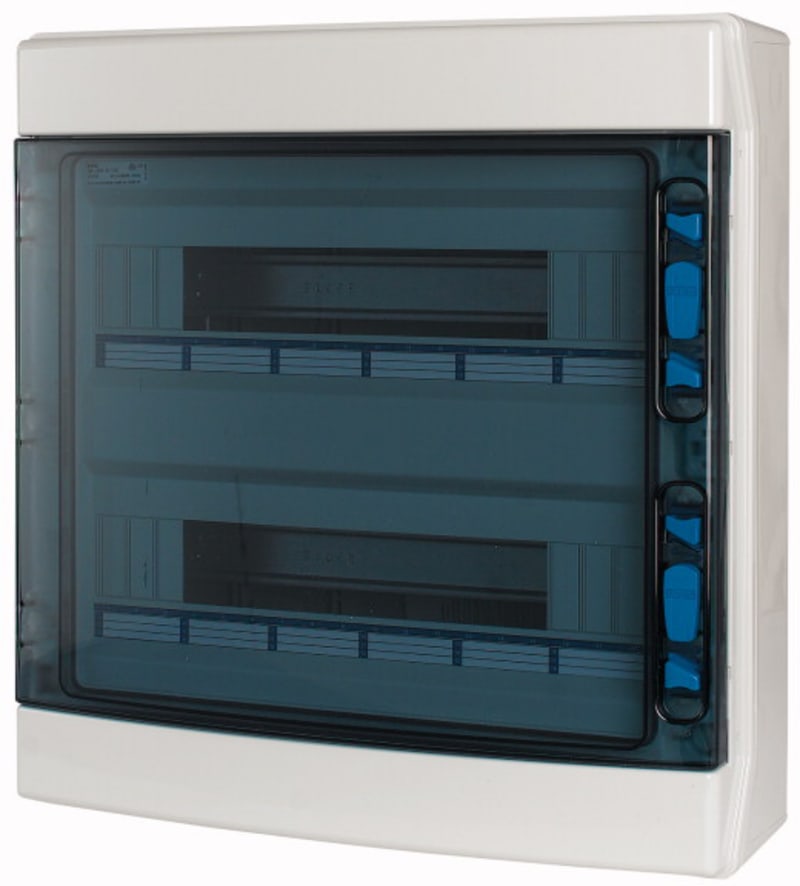

Enclosure IP65 2-Row 36 MOD.
Part numberIKA-2/36-OTEAN / GTIN4015081706723HS code8538.10
Enclosures
Distribution Boards
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Enclosure IP65 2-Row 36 MOD. (part number IKA-2/36-OT) is listed under Enclosures / Distribution Boards. Sales unit: pcs; Eaton catalogue number: 174210; Depth: 145 mm; Height: 436 mm; Width: 418 mm; Weight: 3.73 kg.
Technical Specifications
- Manufacturer part number (MPN)
- IKA-2/36-OT
- EAN / GTIN
- 4015081706723
- Sales unit
- pcs
- Eaton catalogue number
- 174210
- Depth
- 145 mm
- Height
- 436 mm
- Width
- 418 mm
- Weight
- 3.73 kg
- Compliances
- RoHS conform
- Certifications
- EN 62208; IEC/EN 60670-24
- Fitted with
- Basic device; Locking screws can be sealed; Current circuit designation; Sealing caps; Device support rails
- Functions
- Extension possible; Basic device; Sealable
- Protection class
- II (totally insulated)
- RAL-number
- 7035
- Special features
- IP65 Protection Class II Plastic enclosure gray (RAL 7035)
- Used with
- IKA standard distribution board; Basic device; Installation distribution board
- Application
- Indoor (installation site)
- Color
- Light gray (RAL 7035); Gray
- Type
- Basic device IKA standard distribution board Installation distribution board
- Ambient operating temperature details
- -25 °C - 40 °C
- Frequency rating of contacts
- 50 Hz
- Voltage rating at AC
- 415 V AC
- Built-in depth
- 70 mm
- Cable entry postion
- Metric cable entries on top and bottom, side, back plate
- Closure type
- Other
- Cover/door color
- Transparent
- Cover/door model
- With notch
- Cover/door type
- Door; Single
- Degree of protection
- IP65; IK08 (impact resistance)
- Enclosure material
- Plastic
- Internal depth
- 60 mm
- Material
- ABS (plastic)
- Module rack type
- Rail frame
- Mounting method
- DIN-rail; Surface mounted (plaster); Surface mounting
- Number of module space units per row
- 18
- Number of rows
- 2
- Protective shrouding material
- Plastic
- Terminal type
- Without terminals
- Width in number of modular spacings
- 18
- Colour
- Grey
- UV resistant
- No
- With mounting plate
- No
- Type of covering
- Door
- EMC-version
- No
- Extension possible
- Yes
- Inner depth
- 60 mm
- DIN-rail
- Yes
- Sealable
- Yes
- Housing material
- Plastic
- With N-disconnect slide
- No
- Type of door
- Single
- Transparent cover/door
- Yes
- With lock
- No
- Cover model
- With notch
- Earthing terminal block
- No
- Neutral terminal block
- No
- Signal passing door
- No
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015081706723
- SAP 1000659240
- Code 8351578
Product Documentation
Document preview: ENCLOSURE IP65 2-RAD 36 MOD. (IKA-2/36-OT) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Eth, 6 Relay Q, displ.
EC4P-222-MRXD1
Eaton
Selector Switch, 1P, 12A (T0-1-8210/EZ)
Eaton
Fan with filter 70 m³/h 125X125
Y7-167288
Eaton
Wireless Dim & App set Plug
CPAD-00/222
Eaton
Patchecable 1 Mtr. (DXG-CBL-1M0)
Eaton

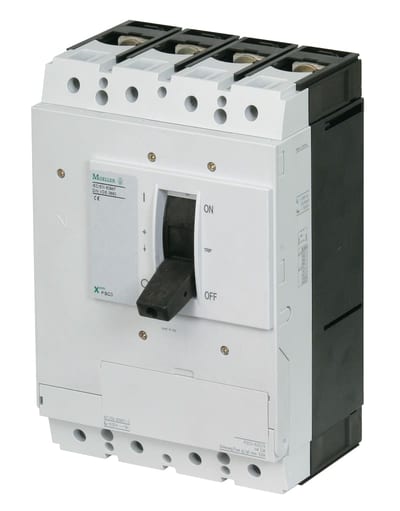

LOAD-Break Switch PN3-4-400
Eaton

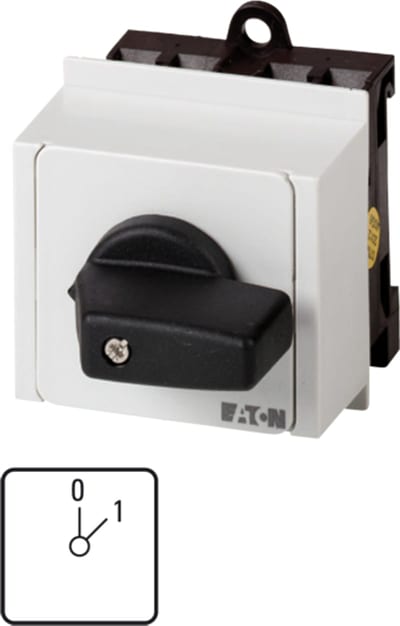

Control Switch, 1P, 12A (T0-1-15401/IVS)
