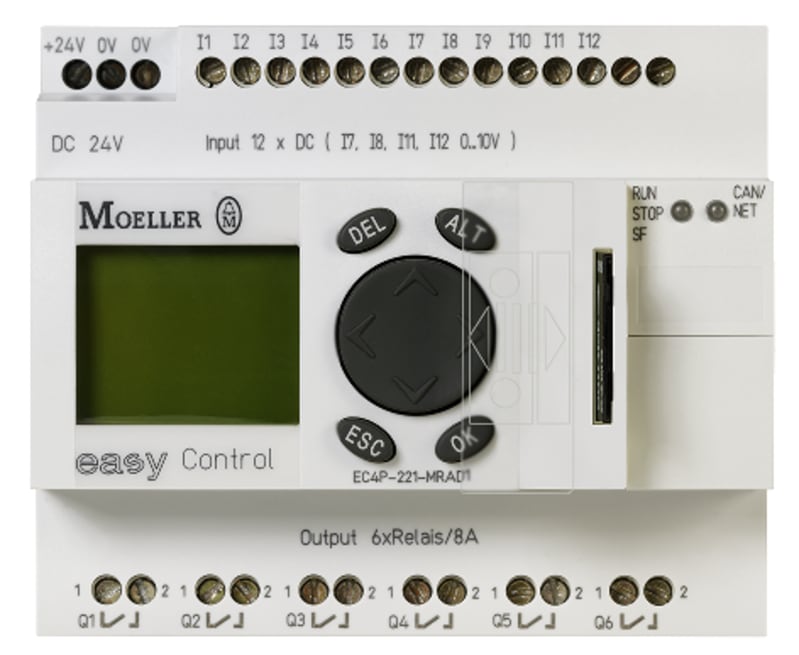

Eth, 6 Relay Q, displ.

Eaton Eth, 6 Relay Q, displ. (part number EC4P-222-MRXD1) is listed under Control & Automation / Relays & Timers. HS code: 8536.90; Sales unit: pcs; Eaton catalogue number: 106401; Depth: 72 mm; Height: 90 mm; Width: 107.5 mm.

Manufacturer part number (MPN)

EC4P-222-MRXD1

EAN / GTIN

4015081061716

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

106401

Depth

72 mm

Height

90 mm

Width

107.5 mm

Weight

0.374 kg

Certifications

CSA-C22.2 No. 142-M; IEC/EN 61000-4-2

Level 3; UL Category Control No.

NRAQ; UL508; UL File No.: E135462; CE; CSA-C22.2 No. 0-M; UL; CSA; CSA File No.: 012528; CSA Class No.: 2252-01

Catalog Notes

Expandable: Inputs/outputs and bus systems

Constant acceleration

2 g, 57 - 150 Hz, according to IEC/EN 60068-2-6, Vibrations

Constant amplitude

0,15 mm, 10 - 57 Hz, according to IEC/EN 60068-2-6, Vibrations

Drop and topple

50 mm Drop height, Drop to IEC/EN 60068-2-31

Height of fall (IEC/EN 60068-2-32) - max

1 m

Mounting position

Horizontal; Vertical

Shock resistance

15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 18 Impacts

Air pressure

1080 hPa (operation)

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-40 °C

Environmental conditions

Clearance in air and creepage distances according to EN 50178, UL 508, CSA C22.2

No. 142; Condensation

prevent with appropriate measures

Relative humidity

5 - 95 % (non-condensing)

Bus termination

EASY-NT-R plug (incl. bus terminating resistor 120 Ω),first and last station, CANopen®

Character formats

8E1, 8O1, 8N1, 8N2, 7E2, 7O2, 7N2, 7E1, PRG interface RS232, Master mode

Connection type

RJ45, Ethernet; 2 x RJ45, 8 pole, CANopen®; RJ45, PRG Interface RS232

Cycle time

< 0.3 ms, for 1 k of instructions (Bit, Byte), CPU

Memory

16 kByte Marker Memory; 14 segments of 16 kByte Program memory data; 8 kByte Retain Memory; 256 kByte Program memory code; 4 kByte Output Memory; 4 kByte Input Memory

Number of bytes

190 transmission bytes (in a block)

Number of modules

Max. 126 (slaves)

Station

To DS 301 V4, Control contact rated current, Mode slave, Interfaces

Write cycles of the retentive memory

10,000,000,000 read-write cycles

Equipment heat dissipation, current-dependent Pvid

0 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

0 W

Rated operational current for specified heat dissipation (In)

0 A

Static heat dissipation, non-current-dependent Pvs

3.4 W

Air discharge

8 kV

Burst impulse

According to IEC/EN 61000-4-4, level 3; 2 kV, Signal cable; 2 kV, Supply cable

Contact discharge

6 kV, Electrostatic discharge (ESD)

Electromagnetic fields

10 V/m (according to IEC EN 61000-4-3)

Immunity to line-conducted interference

10 V (according to IEC/EN 61000-4-6)

Radio interference class

Class B (EN 55022); Class B (EN 55011)

Surge rating

0.5 kV, Supply cables, symmetrical, EASY…DC, power pulses (Surge), EMC; 2 kV, Supply cables, symmetrical, EASY...AC, power pulses (Surge), EMC; According to IEC/EN 61000-4-5, power pulses (Surge), EMC

Features

190 received bytes in a block (PRG interface RS232, Master mode); Asynchronous, cyclic, acyclic PDO types (operating modes of the slave)

Fitted with

Display; Digital input module; Analog input module; Digital output module; Libraries; Monitor; Basic device; Ethernet on board; Communication module; Engineering software; Control unit; Power supply; Memory unit; Keypad; easyNet/CANopen® on board; Function module; Documentation; Other components

Functions

Building blocks

Inscription

Individual inscription possible with EC4-COMBINATION-*

Processor

Infineon XC161

Cable length

30 m, screened, Analog inputs; 100 m, unshielded, Digital inputs 24 V DC

Degree of protection

IP20

Display temperature - max

55 °C

Display temperature - min

0 °C

Lifespan, mechanical

10,000,000 Operations (Relay outputs); 10,000,000 Operations

Mounting method

Top-hat rail fixing (according to IEC/EN 60715, 35 mm); Screw fixing using fixing brackets ZB4-101-GF1 (accessories)

Overvoltage category

II

Pollution degree

2

Rated impulse withstand voltage (Uimp)

Relay outputs: 6 kV (contact-coil)

Rated insulation voltage (Ui)

250 V

Rated operational voltage

24 V DC (-15 %/+ 20 % - power supply); 20.4 - 28.8 V DC

Rated operational voltage (Ue) at AC - max

300 V

Resolution

0.01 V analog (Analog inputs) 0.01 V digital (Analog inputs) 10 Bit (value 0 - 1023, Analog inputs)

Short-circuit protection

16 A, Short-circuit-proof cos ϕ = 0.5 to 0.7, characteristic B16 at 900 A, Contacts, Relay outputs; 16 A, Short-circuit-proof cos ϕ = 1, characteristic B16 at 600 A, Contacts, Relay outputs

Utilization category

R 300 Light Pilot Duty, UL/CSA Control Circuit Rating Codes DC; B 300 Light Pilot Duty, UL/CSA Control Circuit Rating Codes AC

Accuracy

± 3 %, of actual value, two devices (Analog Inputs); ± 2, (I7, I8, I11, I12) ± 0.12 V, of actual value, within a single device (Analog Inputs); ± 5 s/day (± 0.5 h⁄year), Real-time clock, normally

Conversions

Each CPU cycle for Analog inputs

Delay time

0.02 ms typ., Digital inputs 24 DC (I1 - I4), Delay time from 0 to 1; 0.25 ms typ., Digital inputs 24 DC (I5 - I12), Delay time from 0 to 1

Incremental counter

Value range: 32 Bit; Counter inputs: I1

I2; Number of counter inputs

1 (I1, I2, I3

I4); Signal offset

90°; Input for reference switch: I4; Pulse shape: Square; Reference input: I3; Counter frequency: ≤ 40 kHz

Indication

LCD-display used as status indication of Digital inputs 24 V DC

Input

Voltage (DC)

Input current

3.3 mA (I9 - I10, at 24 V DC, at signal 1); 2.2 mA (I7 - I8, at 24 V DC, at signal 1); 140 mA; 3.3 mA (I1 - I6, at 24 V DC, at signal 1); 1 mA (Analog inputs); 2.2 mA (I11 - I12, at 24 V DC, at signal 1)

Input impedance

11.2 kΩ

Insulation resistance

According to EN 50178

Making/breaking capacity

3600/360 VA (AC, at B 300); 28/28 VA (DC, at R 300)

Number of inputs (analog)

4 (I7, I8, I11, I12)

Number of inputs (digital)

4 (I7, I8, I11, I12, can also be used as analog inputs); 4 (can also be used as analog inputs); 12 (24 V DC); 12

Number of outputs

Relay outputs in groups of 1; 8 Transistor Outputs; 6 (relay outputs)

Parallel switching

Not permitted

Rapid counter inputs

16/32 Bit (value range); Cable length: ≤ 20 m (shielded); Pulse shape: Square; 50 kHz, Counter frequency; 2 (I1, I2) at 16 Bit or 1 (I1) at 32 Bit

Rated breaking capacity

200000 Operations at DC-13, 24 V DC, 1 A (500 Ops./h); 300000 Operations at AC-15, 250 V AC, 3 A (600 Ops./h)

Rated operational voltage (Ue) at DC - max

300 V

Relay output

> 500 mA (Recommended for load: 12 V AC/DC)

Signal range

0 - 10 V DC, Analog inputs

Switching frequency

10 Hz, Relay outputs; 2 Hz, Resistive load/lamp load, Relay outputs; 0.5 Hz, Inductive load, Relay outputs

Uninterrupted current

1 A DC, at R 300 (UL/CSA); 10 A AC, at 240 V AC (UL/CSA); 5 A AC, max. thermal continuous current cos ϕ = 1 at B 300 (UL/CSA); 8 A DC, at 24 V DC (UL/CSA)

Heat dissipation

3.4 W

Input voltage

Signal 0: < 8 V DC (I7 - I8, I11 - I12, Digital inputs

24 V DC); Signal 1

> 15 V DC (I1 - I6, I9 - I10, Digital inputs

24 V DC); Signal 1

> 8 V DC (I7 - I8, I11 - I12, Digital inputs

24 V DC); Signal 0

< 5 V DC (I1 - I6, I9 - I10, Digital inputs, 24 V DC)

Residual ripple

≤ 5 %

Supply voltage at DC - max

24 VDC

Voltage dips

≤ 10 ms; According to EN 61131-2

Protection of an output relay

Miniature circuit-breaker B16 or fuse 8 A (slow)

Safe isolation

300 V AC, Between coil and contact, According to EN 50178; 300 V AC, Between two contacts, According to EN 50178

Screwdriver size

3.5 x 0.8 mm, Terminal screw

Terminal capacity (flexible with ferrule AWG)

22 - 12

Terminal capacity (flexible with ferrule)

0.2/2.5 mm²

Terminal capacity (solid AWG)

22 - 12

Terminal capacity (solid)

0.2/4 mm²

Tightening torque

0.6 Nm

HS Code

8536.90

• EAN 4015081061716
• SAP 1000507163
• Code 8351917
