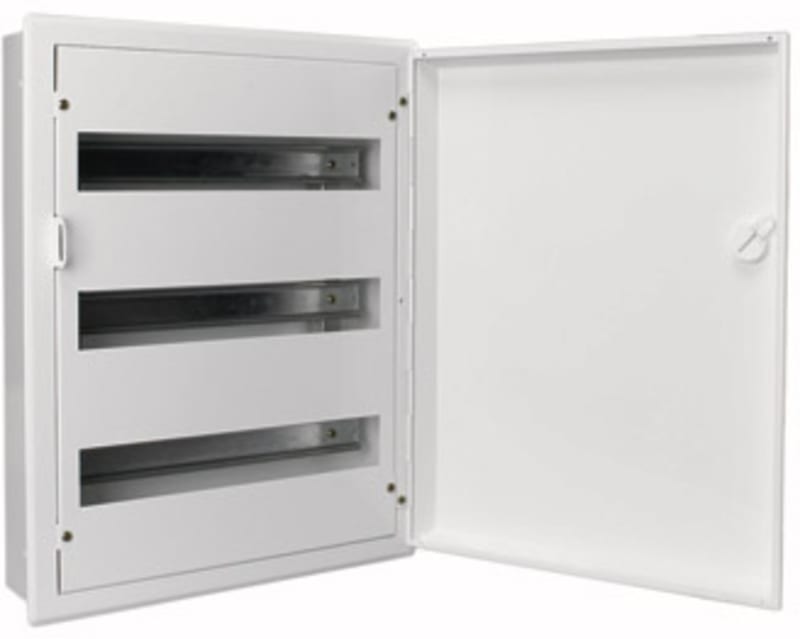

iBox Distribution Board 48 Modules, 110 mm Deep, Complete
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton I-48-4-DHS iBox distribution board for 48 modules, 110 mm deep, complete.
Technical Specifications
- Manufacturer part number (MPN)
- I-48-4-DHS
- EAN / GTIN
- 4015081683697
- Sales unit
- pcs
- Eaton catalogue number
- 171838
- Depth
- 165 mm
- Height
- 500 mm
- Width
- 395 mm
- Weight
- 6.1 kg
- Compliances
- RoHS conform
- Features
- EMC-version; Earthing terminal block
- Enclosure material
- Steel
- Built-in height
- 457 mm
- Built-in width
- 352 mm
- Built-in depth
- 165 mm
- Closure type
- Other
- Cover/door model
- Closed
- Cover/door type
- Door; Single
- RAL-number
- 9016
- Width in number of modular spacings
- 16
- Color
- White
- Number of rows
- 3
- Degree of protection
- IP30
- Functions
- Sealable
- Mounting method
- Flush mounted (plaster)
- Internal depth
- 110 mm
- Number of openings for socket outlets
- 0
- Colour
- White
- UV resistant
- No
- With mounting plate
- No
- Type of covering
- Door
- EMC-version
- Yes
- Extension possible
- No
- Inner depth
- 110 mm
- DIN-rail
- No
- Sealable
- Yes
- Housing material
- Steel
- With N-disconnect slide
- No
- Type of door
- Single
- Transparent cover/door
- No
- With lock
- No
- Cover model
- Closed
- Earthing terminal block
- Yes
- Neutral terminal block
- No
- Signal passing door
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015081683697
- SAP 1000350679
- Code 8393569
Product Documentation
