Eaton
Busbar 3P (EVG-3PHAS/16MODUL)
Part numberEVG-3PHAS/16MODULEAN / GTIN4015082853815HS code3926.90
Electrical Components
Busbar Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

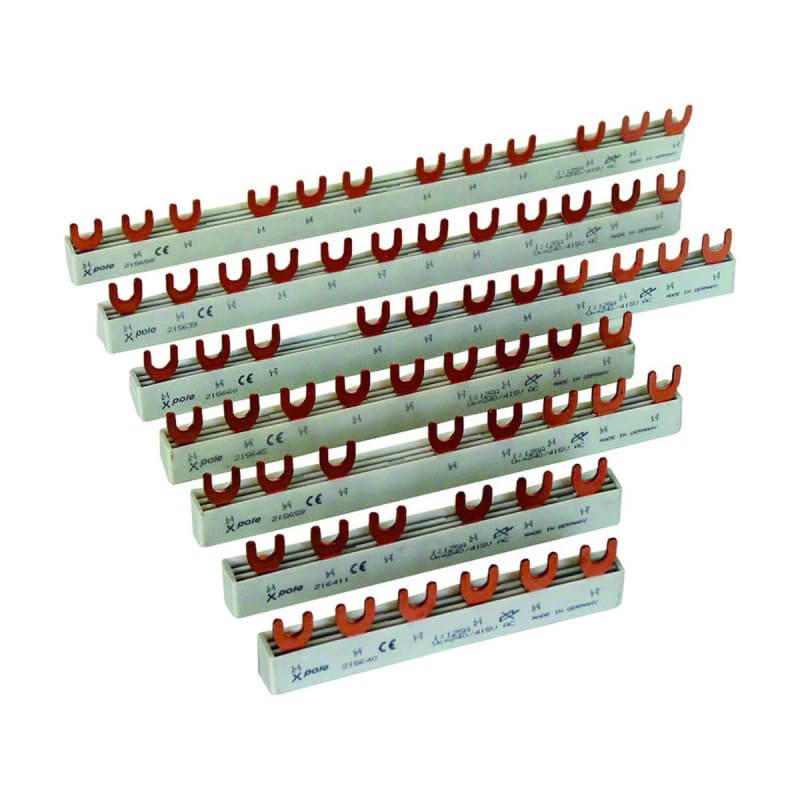

Eaton EVG-3PHAS/16MODUL Busbar 3-Phase 1+2+3-Pole 16Module.
Technical Specifications
- Manufacturer part number (MPN)
- EVG-3PHAS/16MODUL
- EAN / GTIN
- 4011126356274
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Eaton catalogue number
- 285381
- Depth
- 27 mm
- Height
- 11 mm
- Width
- 286 mm
- Weight
- 0.125 kg
- Compliances
- RoHS conform
- Used with
- Busbar; EVG
- Type
- Busbar EVG
- Features
- Insulated
- Accessory/spare part type
- Busbar for residual current circuit breakers; Busbar for miniature circuit breaker; Busbar for combined residual current/power circuit breaker
- Electric connection type
- Fork
- Rated surge voltage
- 4 KV
- Rated uninterrupted current (Iu)
- 63 A
- Suitable for number of devices
- 0
- Number of poles
- Three-pole
- Color
- Other
- Cross section
- 10 mm²
- Number of modular spacings
- 16
- Number of phases
- 3
- Rated operational voltage (Ue) - max
- 415 V
- Rated conditional short-circuit current (Iq)
- 25 kA
- Functions
- Busbar
- Suitable for
- 5 devices
- Insulated
- Yes
- Rated permanent current Iu
- 63 A
- Length
- 286 mm
- Conditioned rated short-circuit current Iq
- 25 kA
- Width in number of modular spacings
- 16
- Type of electric connection
- Fork
- Suitable for devices with auxiliary switch
- No
- Suitable for devices with N-conductor
- No
- Max. rated operation voltage Ue
- 415 V
- Can be cut to size
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4011126356274
- SAP 1000041012
- Code 8801131
Product Documentation
Document preview: Busbar 3P (EVG-3PHAS/16MODUL) — Specification Data Sheet (OEM)
