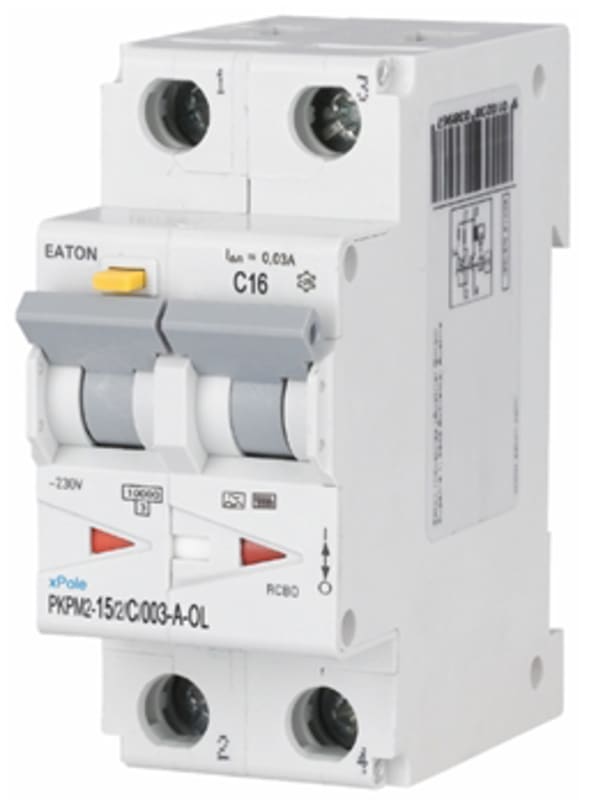

Residual current circuit breaker with overcurrent 15A 2P C 30MAA
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton PKPM2-15/2/C/003A-OL Residual current circuit breaker with overcurrent, C - characteristic, A-type 2-pole (IT/TT/TN - network) - 15 A - 30mA 10kA, grey.
Technical Specifications
- Manufacturer part number (MPN)
- PKPM2-15/2/C/003A-OL
- EAN / GTIN
- 7022241008471
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Number of poles
- 2
- Number of protected poles
- 2
- Rated voltage
- 230 V
- Rated insulation voltage Ui
- 250 V
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated current
- 15 A
- Rated fault current
- 0.03 A
- Leakage current type
- A
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 10 kA
- Disconnection characteristic
- Undelayed
- Surge current capacity
- 0.25 kA
- Voltage type
- AC
- Frequency
- 50 Hz
- Release characteristic
- C
- Concurrently switching neutral conductor
- No
- With interlocking device
- No
- Overvoltage category
- 3
- Pollution degree
- 2
- Ambient temperature during operating
- -25–40 °C
- Width in number of modular spacings
- 2
- Built-in depth
- 70 mm
- Anti-nuisance tripping version
- No
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 1–25 mm²
- Connectable conductor cross section multi-wired
- 1–25 mm²
- Flush-mounted installation
- No
- Mounting method
- DIN rail
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7022241008471
- SAP 1000096263
- Code 8930925
Product Documentation
