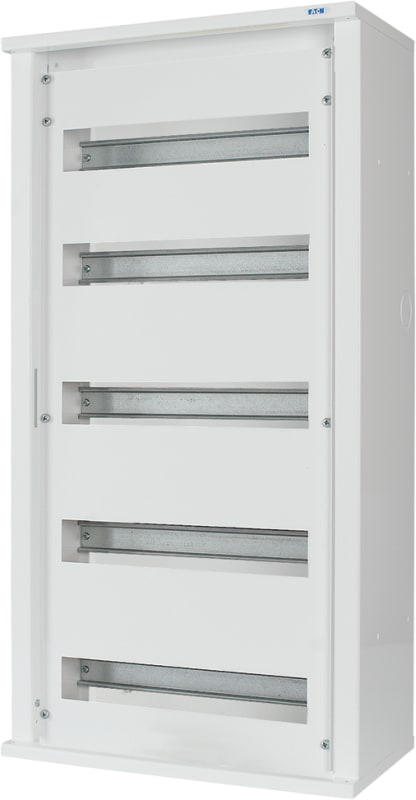

Residential Distribution Board BI-7654 120 Modules (MDB-BI-7654/ENCLOSURE/Din)
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton MDB-BI-7654/SKAP/DIN Residential Distribution Board with DIN insert BI-7654. 120 modules, HxBXD=760x540x210mm.
Technical Specifications
- Manufacturer part number (MPN)
- MDB-BI-7654/SKAP/DIN
- EAN / GTIN
- 4015081756094
- Sales unit
- pcs
- Mounting method
- Surface mounted
- Colour
- White
- Width
- 545 mm
- UV resistant
- No
- Height
- 765 mm
- Depth
- 220 mm
- RAL-number
- 9016
- With mounting plate
- No
- Built-in depth
- 220 mm
- Number of rows
- 5
- Built-in height
- 765 mm
- Type of covering
- Door
- Built-in width
- 545 mm
- EMC-version
- Yes
- Extension possible
- No
- Inner depth
- 210 mm
- DIN-rail
- Yes
- Housing material
- Steel
- Width in number of modular spacings
- 24
- Type of door
- Single
- Degree of protection (IP)
- IP2XC
- Transparent cover/door
- No
- With lock
- Yes
- Cover model
- Closed
- Earthing terminal block
- Yes
- Neutral terminal block
- No
- Signal passing door
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015081756094
- SAP 1000706623
- Code 8662455
Product Documentation
More from Eaton
Eaton

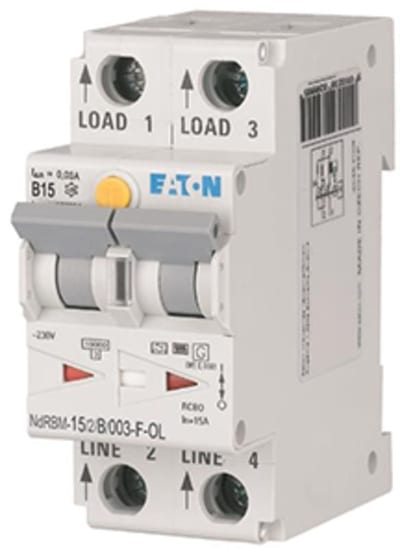

Residual current circuit breaker with overcurrent xDigital 15A B Type-F
300509
Eaton

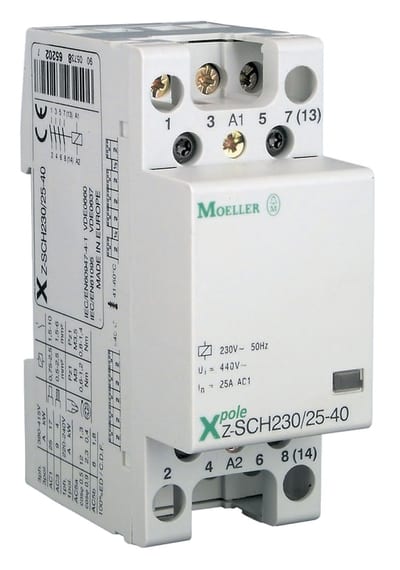

Installationscontactor (Z-SCH230/25-40)
Eaton
Residential Distribution Board G2 SideBySide 4-Row 106 mm
EP-501118
Eaton
Connection Cabinet B400 TN, with channel, dark
195382
Eaton

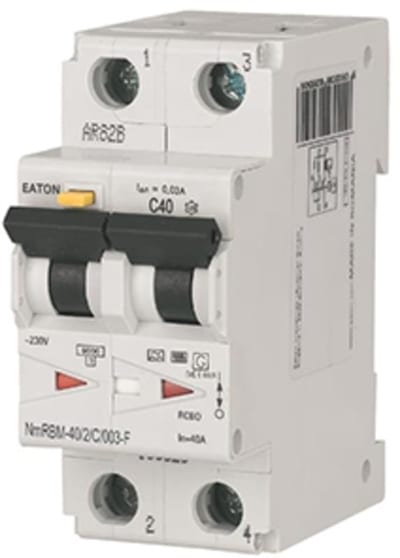

Residual current circuit breaker with overcurrent 40A C Type-F
MB-300070
Eaton

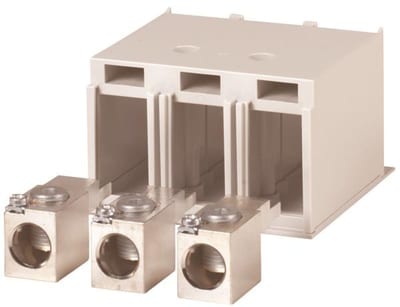

Eaton Connection
NZM2-XKA
Eaton

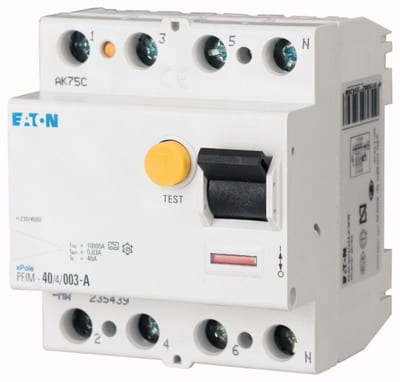

Eaton xPole PFIM Residual Current Circuit Breaker (RCCB) — Type A, 4-Pole, 40 A, 30 mA, Instantaneous
PFIM-40/4/003-A-MW
Eaton

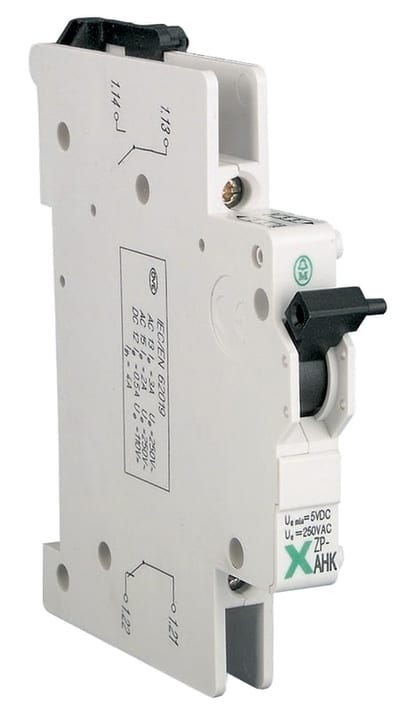

AUXILIARY CONTACT MCB/RCBO 1
ZP-IHK
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy MDB-BI-7654/SKAP/DIN?
- MDB-BI-7654/SKAP/DIN can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is MDB-BI-7654/SKAP/DIN.
- What is the HS code for MDB-BI-7654/SKAP/DIN?
- The customs tariff (HS) code for MDB-BI-7654/SKAP/DIN is 8538.10.
- Who manufactures MDB-BI-7654/SKAP/DIN?
- MDB-BI-7654/SKAP/DIN is a Eaton product in the Enclosures range.
- Is a datasheet available for MDB-BI-7654/SKAP/DIN?
- Yes — the MDB-BI-7654/SKAP/DIN datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for MDB-BI-7654/SKAP/DIN?
- The minimum order quantity is 1.
- Is MDB-BI-7654/SKAP/DIN available?
- Yes — MDB-BI-7654/SKAP/DIN is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
