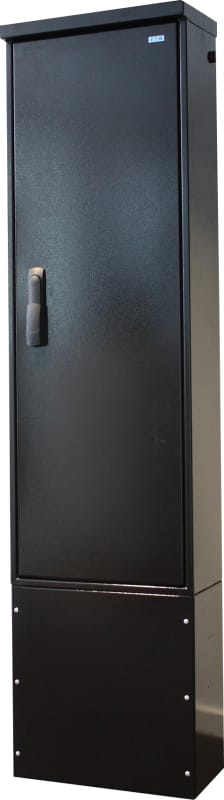

Connection cabinet B400 IT/TT with trunking, dark
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton 195383 MDB-BI-12040/RESIDENTIAL DISTRIBUTION BOARD-TKS/230V+/RAL8022.
Technical Specifications
- Manufacturer part number (MPN)
- 195383
- EAN / GTIN
- 9010238092556
- Sales unit
- pcs
- Package quantity
- 7 pcs
- Eaton catalogue number
- 195383
- Depth
- 265 mm
- Height
- 1600 mm
- Width
- 415 mm
- Weight
- 35.5 kg
- Compliances
- RoHS conform
- Certifications
- IEC/EN 61439-3
- Special features
- Pre-wired cabinet Supplied with fuse switch disconnector, Insulator, Surge protection device with cable duct
- Type
- TKS Norway Compact
- Fitted with
- Mounting plate
- Degree of protection
- IP55; IK10
- Number of fields
- 1
- Number of meter cabinets
- 1
- Number of TSG-panels
- 0
- Application
- Basic device Outdoor
- RAL-number
- 8022
- Cover/door type
- Door with 3-point-locking system and rotary-handle
- Voltage rating
- 230 V AC
- Built-in depth
- 220 mm
- Built-in height
- 1600 mm
- Built-in width
- 415 mm
- Number of distributor rows
- 2
- Color
- Black-brown; Other
- Material
- Steel plate; Aluminum, powder-coated; Other
- Mounting method
- Surface mounted (plaster)
- Number of rows
- 2
- Frequency rating of contacts
- 50 Hz
- Lower connection space
- With clamps
- Model
- 1-story
- Module rack type
- DIN rail
- Number of module space units per row
- 12
- Protection class
- I (earthed)
- Protective shrouding material
- Metal
- Functions
- Meter Cabinet
- Ambient operating temperature – max
- 40 °C
- Ambient operating temperature – min
- -40 °C
- Cable entry
- Cable plugs and grommets at bottom of enclosure
- Number of switching device panels
- 0
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 9010238092556
- SAP 1200218344
- Code 82141600
Product Documentation
More from Eaton
Eaton
Eaton FAZ-C10/2 Miniature Circuit Breaker — 2P, Type C, 10 A, 15 kA
Eaton

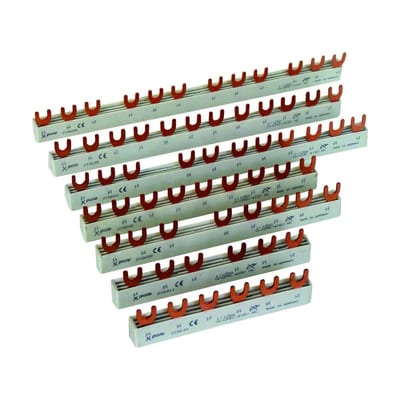

BUSBAR 2-PHASE 1+2-Pole 6MODULE
EVG-2PHAS/6MODUL
Eaton

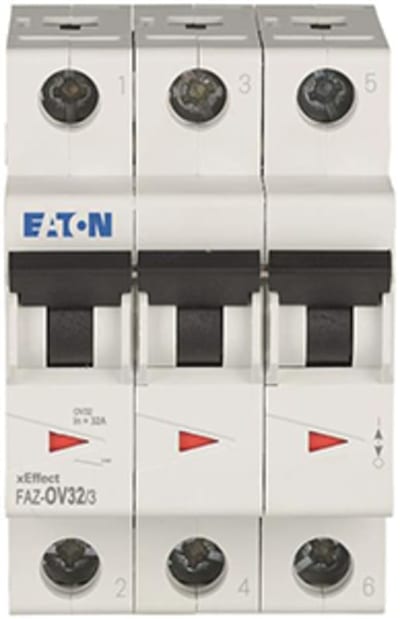

Eaton FAZ-OV32/3 Miniature Circuit Breaker — 3P, OV, 32 A, 15 kA
Eaton
Bell Transformer MOD 230/4-8-12V50HZ (272481)
Eaton
EMERGENCY STOP, complete, in enclosure
M22-PV/KC11/IY
Eaton

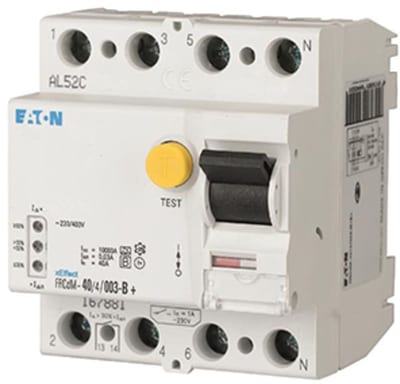

Residual Current Circuit Breaker G/B 40A/4/30MA
FRCDM-40/4/003-G/B
Eaton

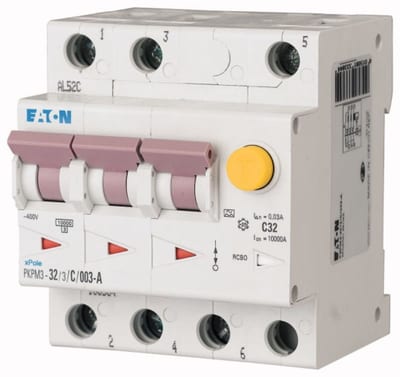

Residual current circuit breaker with overcurrent 32A 3P C 30MAA (PKPM3-32/3/C/003-LI/A)
