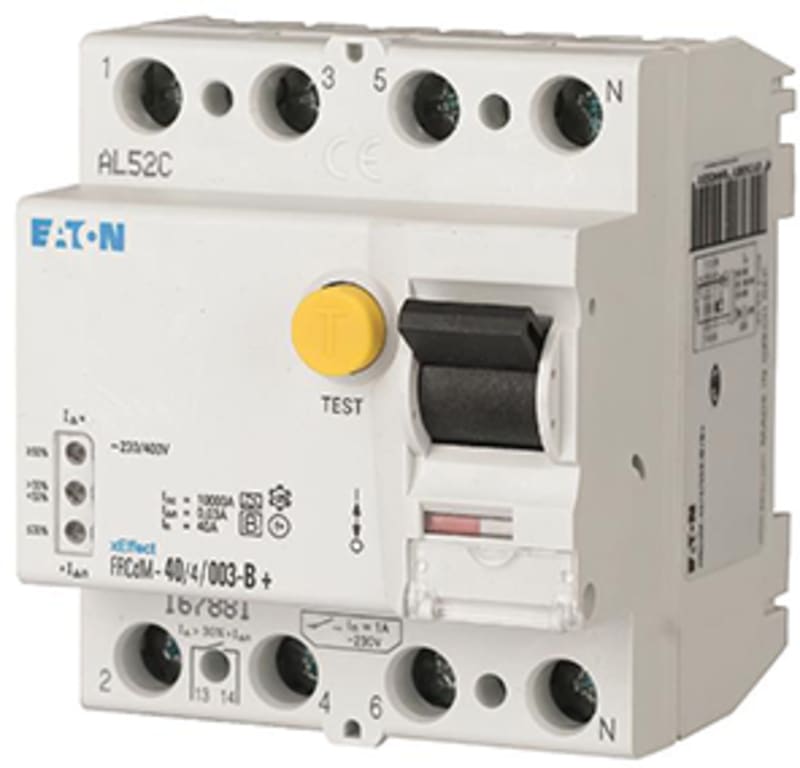

Residual Current Circuit Breaker G/B 40A/4/30MA

digital residual current circuit breaker. B-type; can be used in all mains/network systems.

Manufacturer part number (MPN)

FRCDM-40/4/003-G/B

EAN / GTIN

4015081644698

HS code

8536.90

Sales unit

pcs

Package quantity

30 pcs

Eaton catalogue number

167893

Depth

76 mm

Height

80 mm

Width

70 mm

Weight

0.32 kg

Compliances

RoHS conform

Certifications

IEC/EN 62423; IEC/EN 61008; ÖVE E 8601; EN45545-2; IEC 61373

Features

Residual current circuit-breakers, digital; Additional equipment possible; Selective protection

Fitted with

Interlocking device

Functions

Short-time delayed tripping

Used with

Residual current circuit-breakers, digital; FRCdM; Type G/B (ÖVE E 8601)

Amperage Rating

40 A

Application

xEffect - Switchgear for industrial and advanced commercial applications

Fault current rating

30 mA

Impulse withstand current

3 kA (8/20 μs) surge-proof

Number of poles

Four-pole

Rated short-circuit strength

10 kA

Sensitivity type

All current sensitive

Tripping time

10 ms delayed; Short time-delayed

Type

FRCdM Residual current circuit-breakers, digital Type G/B (ÖVE E 8601)

Ambient operating temperature - max

60 °C

Ambient operating temperature - min

-25 °C

Equipment heat dissipation, current-dependent

6.2 W

Heat dissipation capacity

6.2 W

Heat dissipation per pole, current-dependent

0 W

Rated operational current for specified heat dissipation (In)

40 A

Static heat dissipation, non-current-dependent

0 W

Admissible back-up fuse

63 A gG/gL

Admissible back-up fuse overload - max

40 A gG/gL

Frequency rating

50 Hz

Leakage current type

B

Lifespan, electrical

4000 operations

Pollution degree

2

Rated fault current - max

0.03 A

Rated fault current - min

0.03 A

Rated impulse withstand voltage (Uimp)

4 kV

Rated insulation voltage (Ui)

440 V

Rated operational voltage (Ue) - max

415 V

Rated residual making and breaking capacity

500 A

Rated short-time withstand current (Icw)

10 kA

Short-circuit rating

63 A (max. admissible back-up fuse)

Surge current capacity

3 kA

Test circuit range

196 V AC - 264 V AC

Voltage rating - max

456 VAC

Voltage rating - min

50 VAC

Voltage rating (IEC/EN 60947-2)

240 V AC / 415 V AC

Switching capacity of auxiliary contact - min

10 μA, 10 mV DC

Switching current of auxiliary contact - max

2 A

Switching duty with resistive load of auxiliary contact - max

60 W

Switching voltage at AC of auxiliary contact - max

240 V

Switching voltage at DC of auxiliary contact - max

220 V

Terminal capacity of auxiliary contact

0.25 mm² - 1.5 mm²

Built-in depth

70.5 mm

Built-in width (number of units)

70 mm (4 SU)

Busbar material thickness

0.8 mm - 2 mm

Climatic proofing

25-55 °C / 90-95% relative humidity according to IEC 60068-2

Connectable conductor cross section (multi-wired) - max

16 mm²

Connectable conductor cross section (multi-wired) - min

1.5 mm²

Connectable conductor cross section (solid-core) - max

35 mm²

Connectable conductor cross section (solid-core) - min

1.5 mm²

Contact position indicator color

Red / green

Degree of protection

IP20, IP40 with suitable enclosure; IP20

Frame

45 mm

Lifespan, mechanical

20000 operations

Mounting Method

DIN rail; Quick attachment with 2 latch positions for DIN-rail IEC/EN 60715

Mounting position

As required

Permitted storage and transport temperature - max

60 °C

Permitted storage and transport temperature - min

-35 °C

Status indication

White / blue

Terminal capacity (cable)

M5 (with cross-recessed screw as defined in EN ISO 4757-Z2, PZ2)

Terminal capacity (solid wire)

1.5 mm² - 35 mm²

Terminal capacity (stranded cable)

16 mm² (2x)

Terminal protection

Finger and hand touch safe, DGUV VS3, EN 50274

Terminals (top and bottom)

Twin-purpose terminals

Tightening torque

2 Nm - 2.4 Nm

Width in number of modular spacings

4

HS Code

8536.90

• EAN 4015081644698
• SAP 1000694932
