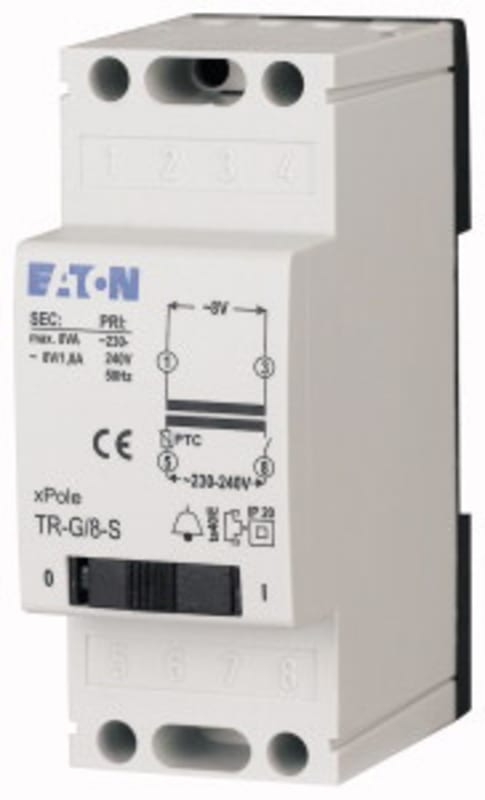

Bell Transformer MOD 230/4-8-12V50HZ (272481)
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton 272481 Bell Transformer Module 230/4-8-12V 50Hz.
Technical Specifications
- Manufacturer part number (MPN)
- 272481
- EAN / GTIN
- 4015082724818
- Sales unit
- pcs
- Package quantity
- 28 pcs
- Eaton catalogue number
- 272481
- Depth
- 55 mm
- Height
- 90 mm
- Width
- 36 mm
- Weight
- 0.266 kg
- Compliances
- RoHS conform
- Features
- Short-circuit protected; Modular version; Temperature protection
- Transformer type
- Standard bell ringing transformer
- Ambient operating temperature - max
- 40 °C
- Ambient operating temperature - min
- -25 °C
- Secondary rated current 1
- 1 A
- Secondary rated current 2
- 1 A
- Secondary rated current 3
- 0.67 A
- Secondary voltage rating 1
- 4 V
- Secondary voltage rating 2
- 8 V
- Secondary voltage rating 3
- 12 V
- Width in number of modular spacings
- 2
- Equipment heat dissipation, current-dependent
- 3.52 W
- Suitable for
- Surface mounting
- Primary voltage
- 230 V
- Type of transformer
- Standard bell ringing transformer
- With on/off switch
- No
- Length
- 55 mm
- Surface mounting
- Yes
- Short-circuit protected
- Yes
- Secondary voltage 1
- 4 V
- Secondary voltage 2
- 8 V
- Secondary voltage 3
- 12 V
- Secondary amperage 1
- 1 A
- Secondary amperage 2
- 1 A
- Secondary amperage 3
- 0.67 A
- Temperature protection
- Yes
- Flush-mounted installation
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8504.31
Cross References
- EAN 4015082724818
- SAP 1000054050
- Code 8835889
Product Documentation
