Eaton

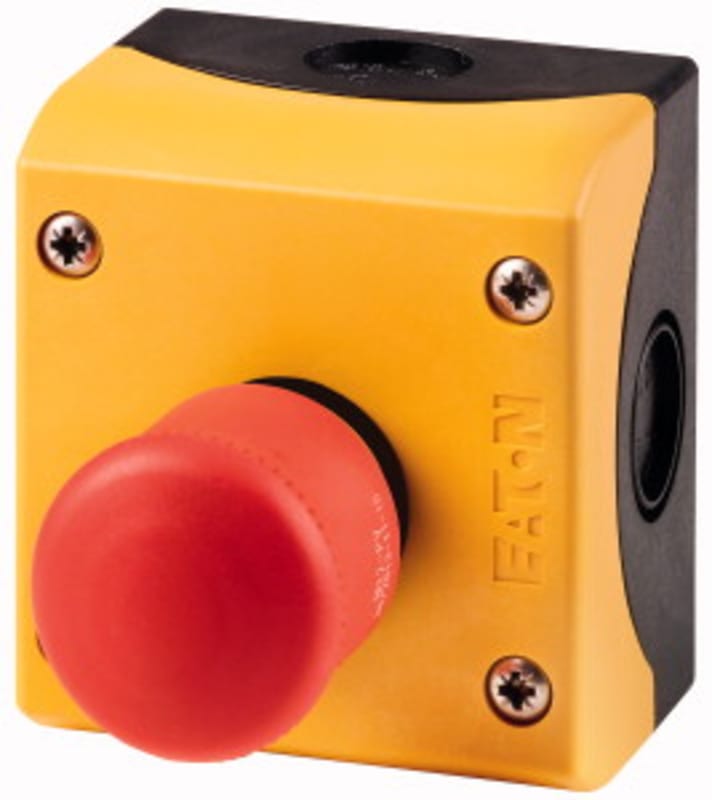

EMERGENCY STOP, complete, in enclosure
Part numberM22-PV/KC11/IYEAN / GTIN4015082165253HS code8536.50
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-PV/KC11/IY Emergency stop Complete In Enclosure.
Technical Specifications
- Manufacturer part number (MPN)
- M22-PV/KC11/IY
- EAN / GTIN
- 4015082165253
- Sales unit
- pcs
- Eaton catalogue number
- 216525
- Depth
- 100 mm
- Height
- 80 mm
- Width
- 72 mm
- Weight
- 0.192 kg
- Certifications
- CSA-C22.2 No. 14-05; IEC/EN 60947; UL File No.: E29184; CSA; CSA File No.: 012528; UL Category Control No.: NKCR; VDE 0660; CE; CSA-C22.2 No. 94-91; IEC/EN 60947-5; UL; CSA Class No.: 3211-03; UL 508
- Actuating force
- 50 N
- Actuator color
- Red
- Actuator diameter
- 38 mm
- Actuator function
- Pull-to-release
- Actuator travel and actuation force (DIN EN 60947-5-1)
- 4.8 mm
- Design
- Mushroom-shaped
- Illumination
- Non-illuminated
- Knob travel
- 5.7 mm
- Force for positive opening - min
- 20 N
- Number of contacts (change-over contacts)
- 0
- Number of contacts (normally closed contacts)
- 1
- Number of contacts (normally open contacts)
- 1
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- No
- Heat dissipation per pole, current-dependent Pvid
- 0.11 W
- Rated operational current for specified heat dissipation (In)
- 6 A
- Rated control supply voltage (Us) at AC, 50 Hz - max
- 500 V
- Rated control supply voltage (Us) at AC, 50 Hz - min
- 115 V
- Rated control supply voltage (Us) at AC, 60 Hz - max
- 500 V
- Rated control supply voltage (Us) at AC, 60 Hz - min
- 115 V
- Rated control supply voltage (Us) at DC - max
- 220 V
- Rated control supply voltage (Us) at DC - min
- 24 V
- Enclosure color
- Yellow
- Enclosure material
- Plastic
- Degree of protection
- IP Other; NEMA 4X, 13
- Lifespan
- 100,000 mechanical Operations
- Mounting position
- As required
- Operating frequency
- 600 Operations/h
- Product category
- RMQ-Titan
- Size
- Front dimensions: 35 mm
- Suitable for
- Emergency stop
- Type
- Controlled stop pushbutton/emergency-stop button Housing
- Rated conditional short-circuit current (Iq)
- 1 kA
- Housing colour
- Yellow
- Number of command positions
- 1
- Colour housing cover
- Yellow
- Suitable for emergency stop
- Yes
- Housing material
- Plastic
- Rated control supply voltage AC 50 Hz
- 115–500 V
- Rated control supply voltage AC 60 Hz
- 115–500 V
- Rated control supply voltage DC
- 24–220 V
- Explosion-tested version
- No
- Number of push buttons
- 1
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082165253
- SAP 1000068279
- Code 8920653
Product Documentation
Document preview: EMERGENCY STOP COMPLETE In ENCLOSURE (M22-PV/KC11/IY) — Specification Data Sheet (OEM)
