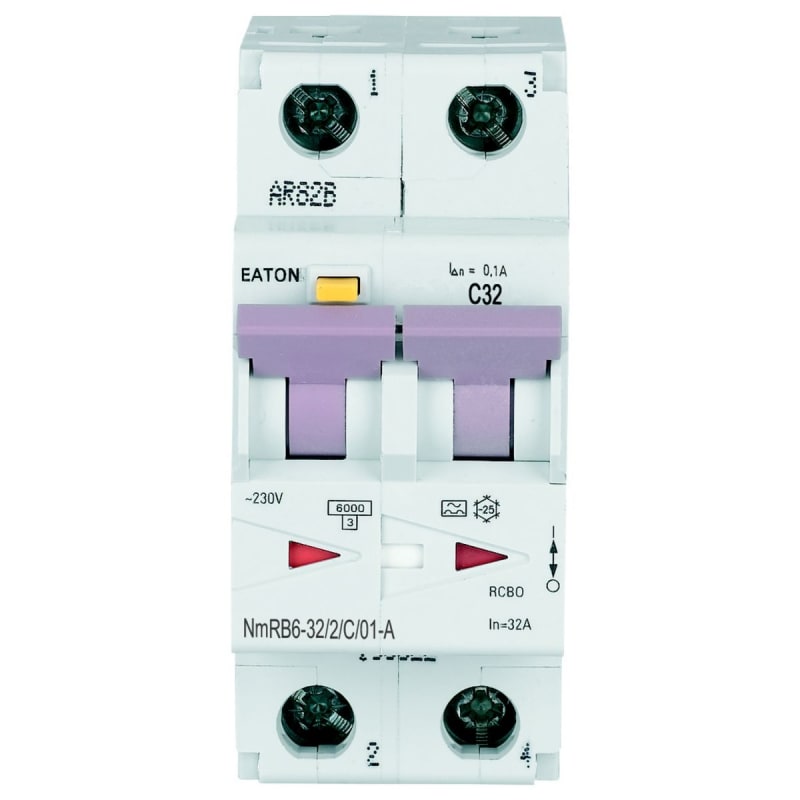

Residual current circuit breaker with overcurrent 32A 2P C 100MAA (193828)

Eaton 193828 NmRB6-32/2/C/01-A.

Manufacturer part number (MPN)

193828

EAN / GTIN

9010238039551

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

193828

Depth

86 mm

Height

75 mm

Width

37 mm

Weight

0.25 kg

Compliances

RoHS conform

Certifications

CE

Amperage Rating

32 A

Voltage rating

230 V

Surge current capacity

0.25 kA

Voltage type

AC

Width in number of modular spacings

2

Operating ambient temperature - max

40 °C

Operating ambient temperature - min

-25 °C

Rated current

32 A

Rated operational current for specified heat dissipation (In)

32 A

Built-in depth

70 mm

Current limiting class

3

Rated short-circuit breaking capacity (EN 60947-2)

0 kA

Ambient operating temperature - max

40 °C

Ambient operating temperature - min

-25 °C

Fault current rating

0.1 A

Number of poles (protected)

2

Number of poles (total)

2

Rated operational voltage (Ue) - max

230 V

Basic function

Combined RCD/MCB devices

Mounting Method

DIN rail

Equipment heat dissipation, current-dependent

5.5 W

Rated impulse withstand voltage (Uimp)

4 kV

Degree of protection

IP20

Overvoltage category

III

Pollution degree

2

Leakage current type

A

Release characteristic

C

Frequency rating

50 Hz

Rated insulation voltage (Ui)

250 V

Connectable conductor cross section (solid-core) - min

1 mm²

Connectable conductor cross section (solid-core) - max

25 mm²

Connectable conductor cross section (multi-wired) - min

1 mm²

Connectable conductor cross section (multi-wired) - max

25 mm²

Rated short-circuit breaking capacity (EN 61009)

6 kA

Rated short-circuit breaking capacity (EN 61009-1)

6 kA

Disconnection characteristic

Undelayed

Type

RCBO

HS Code

8536.90

• EAN 9010238039551
• SAP 1200927139
• Code 84211933
