Contactor 32A 24V50HZ (DILM32-10(24V50HZ))

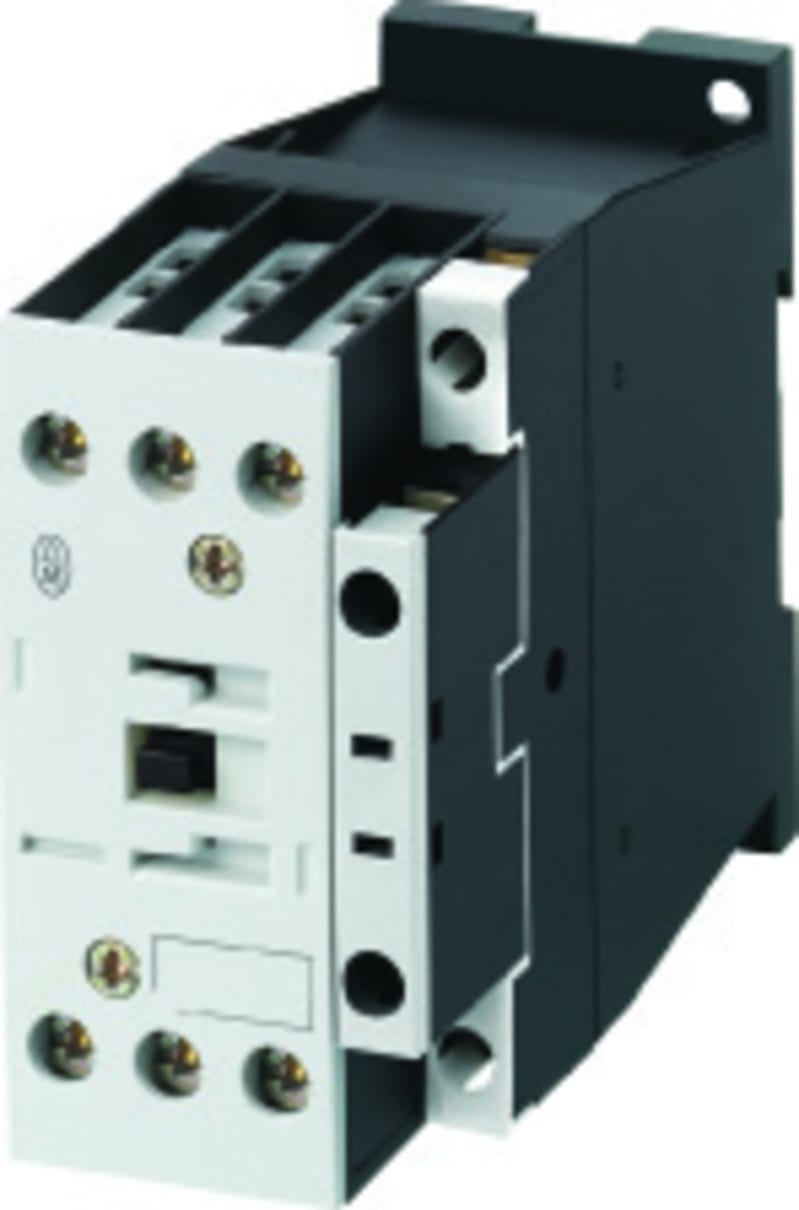

Eaton DILM32-10(24V50HZ) Contactor 3-pole, 24 VAC incl. 1NO.

Manufacturer part number (MPN)

DILM32-10(24V50HZ)

EAN / GTIN

4015082772475

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

277247

Depth

97 mm

Height

85 mm

Width

45 mm

Weight

0.428 kg

Compliances

CE Marked

Certifications

CSA Std. C22.2 No. 14-05; IEC 60947-4-1; UL 508; EN 60947-4-1; VDE; IEC/EN 60947; CSA-C22.2 No. 60947-4-1-14; IEC/EN 60947-4-1; UL; UL Category Control No.: NLDX; CSA; VDE 0660; UL 60947-4-1; UL File No.: E29096; CSA Class No.: 2411-03

3211-04; CE; CSA File No.

012528

Catalog Notes

Contacts according to EN 50012

Altitude

Max. 2000 m

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Connection to SmartWire-DT

No

Number of main contacts (normally open contact)

3

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

1

Number of contacts (normally open contacts)

1

Number of contacts (normally closed) as main contact

0

Conventional thermal current Ith (1-pole, enclosed)

90 A

Conventional thermal current Ith (3-pole, enclosed)

36 A

Conventional thermal current Ith at 55°C (3-pole, open)

42 A

Conventional thermal current Ith at 60°C (3-pole, open)

40 A

Conventional thermal current Ith of main contacts (1-pole, open)

100 A

Equipment heat dissipation, current-dependent Pvid

6.6 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

2.2 W

Rated operational current for specified heat dissipation (In)

32 A

Static heat dissipation, non-current-dependent Pvs

2.1 W

Rated breaking capacity at 220/230 V

320 A

Rated breaking capacity at 380/400 V

320 A

Rated breaking capacity at 500 V

320 A

Rated breaking capacity at 660/690 V

180 A

Rated insulation voltage (Ui)

690 V

Rated making capacity up to 690 V (cos phi to IEC/EN 60947)

384 A

Rated operational current (Ie) at AC-1, 380 V, 400 V

415 V

45 A

Rated operational current (Ie) at AC-3, 220 V, 230 V

240 V

32 A

Rated operational current (Ie) at AC-3, 380 V, 400 V

415 V

32 A

Rated operational current (Ie) at AC-3

440 V

32 A

Rated operational current (Ie) at AC-3

500 V

32 A

Rated operational current (Ie) at AC-3, 660 V

690 V

18 A

Rated operational current (Ie) at AC-4, 220 V, 230 V

240 V

15 A

Rated operational current (Ie) at AC-4

440 V

15 A

Rated operational current (Ie) at AC-4

500 V

15 A

Rated operational current (Ie) at AC-4, 660 V

690 V

12 A

Rated operational current (Ie) at DC-1

110 V

40 A

Rated operational current (Ie) at DC-1

220 V

40 A

Rated operational current (Ie) at DC-1

60 V

40 A

Rated operational power at AC-3, 240 V

50 Hz

11 kW

Rated operational power at AC-3, 380/400 V

50 Hz

15 kW

Rated operational power at AC-3, 415 V

50 Hz

19 kW

Rated operational power at AC-3, 440 V

50 Hz

20 kW

Rated operational power at AC-3, 500 V

50 Hz

23 kW

Rated operational power at AC-3, 690 V

50 Hz

17 kW

Rated operational power at AC-4, 220/230 V

50 Hz

4 kW

Rated operational power at AC-4, 240 V

50 Hz

4.5 kW

Rated operational power at AC-4, 415 V

50 Hz

7.5 kW

Rated operational power at AC-4, 440 V

50 Hz

8 kW

Rated operational power at AC-4, 500 V

50 Hz

9 kW

Rated operational power at AC-4, 660/690 V

50 Hz

10 kW

Rated operational voltage (Ue) at AC - max

690 V

Emitted interference

According to EN 60947-1

Interference immunity

According to EN 60947-1

Number of poles

Three-pole

Application

Contactors for Motors

Connection

Screw terminals

Degree of protection

IP00

Lifespan, mechanical

10,000,000 Operations (AC operated)

Operating frequency

5000 mechanical Operations/h (AC operated)

Overvoltage category

III

Pollution degree

3

Product category

Contactors

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

8000 V AC

Resistance per pole

2.7 mΩ

Suitable for

Also motors with efficiency class IE3

Utilization category

AC-4: Normal AC induction motors: starting, plugging, reversing, inching; AC-3: Normal AC induction motors: starting, switch off during running; AC-1: Non-inductive or slightly inductive loads, resistance furnaces

Voltage type

AC

Frame size

FS2

Arcing time

10 ms

Drop-out voltage

AC operated: 0.6 - 0.3 x UC, AC operated

Duty factor

100 %

Pick-up voltage

0.8 - 1.1 V AC x Uc

Power consumption, pick-up

50 Hz

52 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz

Power consumption, pick-up

60 Hz

67 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz

HS Code

8536.90

• EAN 4015082772475
• SAP 1000048010
• Code 8722786
