Main switch,P1-40/EA/SVB-SW/N

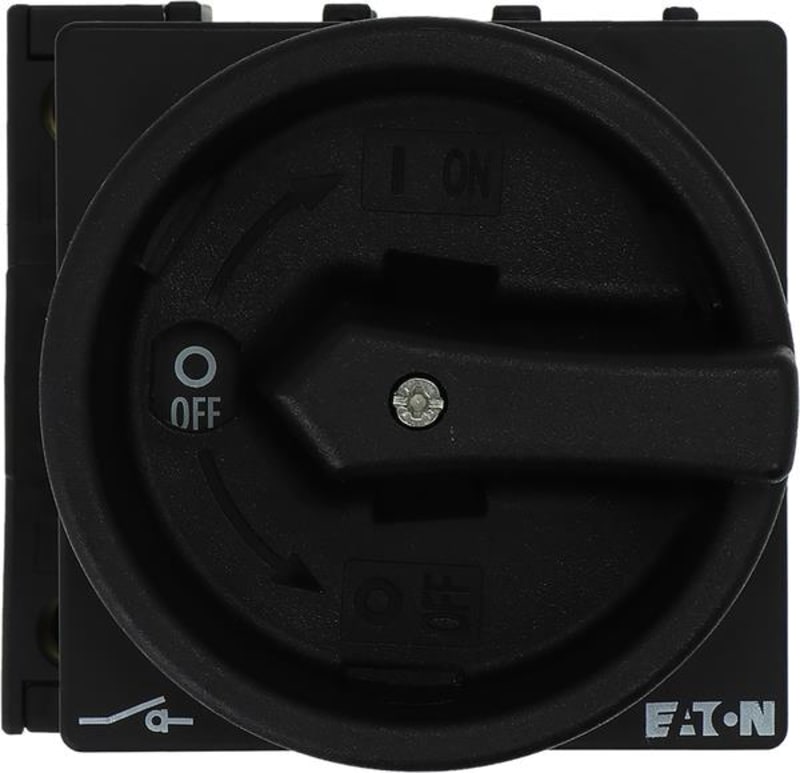

Eaton P1-40/EA/SVB-SW/N Main switch, P1, 40 A, internal mounting, 3-phase + N, STOP function.

Manufacturer part number (MPN)

P1-40/EA/SVB-SW/N

EAN / GTIN

4015082953164

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

199900

Depth

120 mm

Height

70 mm

Width

65 mm

Weight

0.271 kg

Compliances

UKCA; CE

Certifications

IEC/EN 60947; IEC/EN 60947-3; IEC/EN 60204

Catalog Notes

Rated Short-time Withstand Current (Icw) for a time of 1 second

Actuator color

Black

Actuator type

Door coupling rotary drive

Ambient operating temperature - max

50 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Control circuit reliability

1 failure per 100,000 switching operations statistically determined, at 24 V DC, 10 mA)

Number of auxiliary contacts (change-over contacts)

0

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Equipment heat dissipation, current-dependent Pvid

0 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

1.9 W

Rated operational current for specified heat dissipation (In)

40 A

Static heat dissipation, non-current-dependent Pvs

0 W

Rated breaking capacity at 400/415 V (cos phi to IEC 60947-3)

290 kA

Rated breaking capacity at 660/690 V (cos phi to IEC 60947-3)

130 kA

Rated operational current (Ie) at AC-21, 440 V

40 A

Rated operational current (Ie) at AC-23A, 230 V

40 A

Rated operational current (Ie) at AC-23A, 400 V, 415 V

40 A

Rated operational current (Ie) at AC-23A, 690 V

20 A

Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V

30 A

Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V

30 A

Rated operational current (Ie) at AC-3, 660 V, 690 V

17 A

Rated operational power at AC-23A, 220/230 V, 50 Hz

11 kW

Rated operational power at AC-23A, 400 V, 50 Hz

22 kW

Rated operational power at AC-23A, 690 V, 50 Hz

18.5 kW

Rated operational power at AC-3, 380/400 V, 50 Hz

15 kW

Rated operational power at AC-3, 415 V, 50 Hz

15 kW

Rated operational power at AC-3, 690 V, 50 Hz

15 kW

Rated operational voltage (Ue) at AC - max

690 V

Rated uninterrupted current (Iu)

40 A

Uninterrupted current

Rated uninterrupted current Iu is specified for max. cross-section.

Features

Version as main switch; Version as maintenance-/service switch

Fitted with

Black rotary handle and locking ring; Auxiliary contact

Functions

STOP function; Interlockable

Locking facility

Lockable in the 0 (Off) position

Number of poles

3+N

Accessories

Auxiliary contact fitted by user.

Degree of protection

IP65

Degree of protection (front side)

IP65

Lifespan, mechanical

300,000 Operations

Mounting method

Flush mounting

Mounting position

As required

Operating frequency

50 Operations/h

Overvoltage category

III

Pollution degree

3

Product Category

Main switch

Rated impulse withstand voltage (Uimp)

6000 V AC

Safe isolation

440 V AC, Between the contacts, According to EN 61140

Shock resistance

15 g, Mechanical, According to IEC/EN 60068-2-27, Half-sinusoidal shock 20 ms

Switching angle

90 °

Rated conditional short-circuit current (Iq)

80 kA

Rated short-time withstand current (Icw)

0.64 kA; 640 A, Contacts, 1 second

Short-circuit protection rating

50 A gG/gL, Fuse, Contacts

Load rating

1.3 x Iₑ (with intermittent operation class 12, 60 % duty factor); 1.6 x Iₑ (with intermittent operation class 12, 40 % duty factor); 2 x Iₑ (with intermittent operation class 12, 25 % duty factor)

Screw size

M4, Terminal screw

Terminal capacity

1 x (1 - 4) mm², flexible with ferrules to DIN 46228; 2 x (1 - 4) mm², flexible with ferrules to DIN 46228; 1 x 10 mm² with fork terminal; 2 x 10 mm² with fork terminal

Tightening torque

1.6 Nm, Screw terminals

HS Code

8536.90
