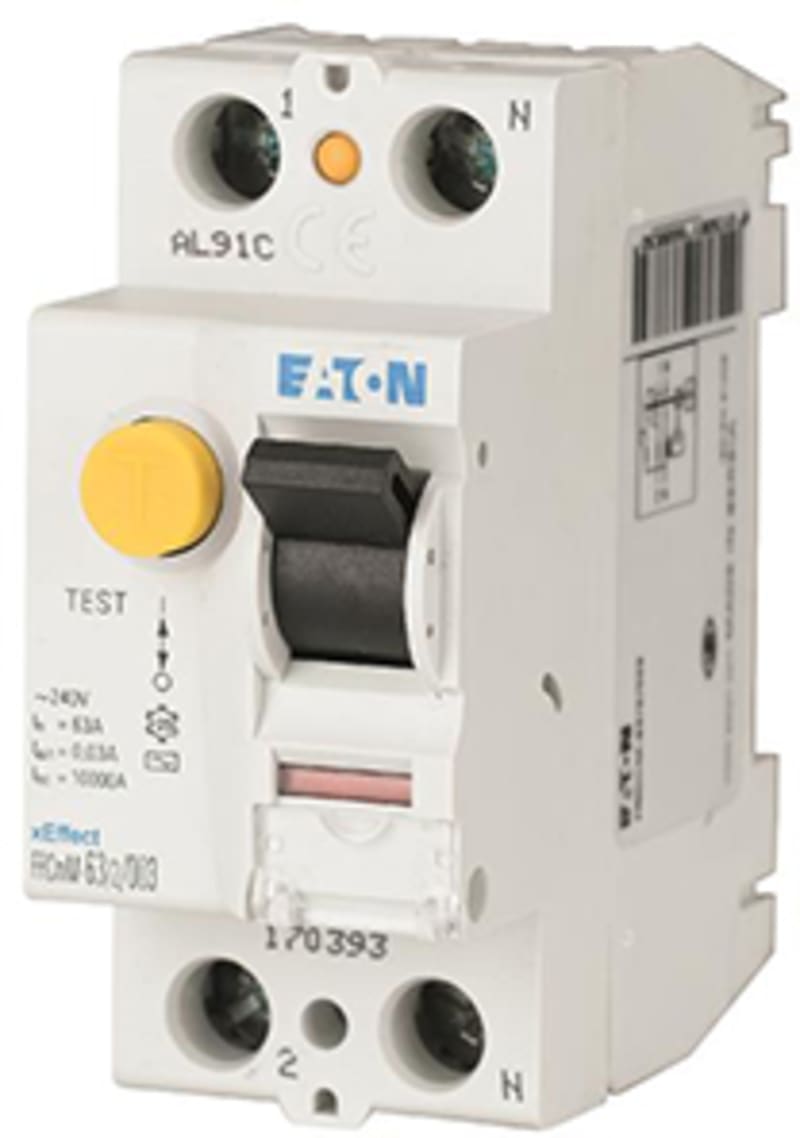

Residual current circuit breaker 100/2/003-A

Eaton Residual current circuit breaker 100/2/003-A (part number FRCMM-100/2/003-A) is listed under Electrical Components / RCDs & RCBOs. HS code: 8536.90; Sales unit: pcs; Package quantity: 60 pcs; Eaton catalogue number: 170435; Depth: 76 mm; Height: 80 mm.

Manufacturer part number (MPN)

FRCMM-100/2/003-A

EAN / GTIN

4015081669219

HS code

8536.90

Sales unit

pcs

Package quantity

60 pcs

Eaton catalogue number

170435

Depth

76 mm

Height

80 mm

Width

35 mm

Weight

0.202 kg

Compliances

RoHS conform

Certifications

IEC/EN 61008; EN45545-2; IEC 61373

Features

Residual current circuit breaker; Additional equipment possible

Fitted with

Interlocking device

Special features

Current test marks as per inscription Maximum operating temperature is 75 °C: Starting at 40 °C, the max. permissible continuous current decreases by 1.2% for every 1 °C

Used with

Residual current circuit breakers; FRCmM; Type A

Amperage Rating

100 A

Application

Switchgear for industrial and advanced commercial applications xEffect - Switchgear for industrial and advanced commercial applications

Fault current rating

30 mA

Impulse withstand current

250 A (8/20 μs) surge-proof; Partly surge-proof 250 A

Number of poles

Two-pole

Rated short-circuit strength

10 kA with back-up fuse

Sensitivity type

Pulse-current sensitive

Tripping time

Non-delayed

Type

FRCmM Residual current circuit breakers Type A

Ambient operating temperature - max

40 °C

Ambient operating temperature - min

-25 °C

Equipment heat dissipation, current-dependent

13.6 W

Heat dissipation capacity

0 W

Heat dissipation per pole, current-dependent

9.4 W

Rated operational current for specified heat dissipation (In)

100 A

Static heat dissipation, non-current-dependent

0 W

Admissible back-up fuse overload - max

80 A gG/gL

Frequency rating

50 Hz / 60 Hz

Leakage current type

A

Lifespan, electrical

4000 operations

Pollution degree

2

Rated fault current - max

0.03 A

Rated fault current - min

0.03 A

Rated impulse withstand voltage (Uimp)

4 kV

Rated insulation voltage (Ui)

440 V

Rated operational voltage (Ue) - max

240 V

Rated residual making and breaking capacity

1000 A

Rated short-time withstand current (Icw)

10 kA

Short-circuit rating

100 A (max. admissible back-up fuse)

Surge current capacity

0.25 kA

Test circuit range

184 V AC - 250 V AC

Voltage rating (IEC/EN 60947-2)

240 V AC

Built-in depth

70.5 mm

Built-in width (number of units)

35 mm (2 SU)

Busbar material thickness

0.8 mm - 2 mm

Climatic proofing

25-55 °C / 90-95% relative humidity according to IEC 60068-2

Connectable conductor cross section (multi-wired) - max

16 mm²

Connectable conductor cross section (multi-wired) - min

1.5 mm²

Connectable conductor cross section (solid-core) - max

35 mm²

Connectable conductor cross section (solid-core) - min

1.5 mm²

Contact position indicator color

Red / green

Degree of protection

IP20, IP40 with suitable enclosure; IP20

Frame

45 mm

Lifespan, mechanical

20000 operations

Mounting Method

DIN rail; Quick attachment with 2 latch positions for DIN-rail IEC/EN 60715

Mounting position

As required

Permitted storage and transport temperature - max

60 °C

Permitted storage and transport temperature - min

-35 °C

Status indication

White / blue

Terminal capacity (cable)

M5 (with cross-recessed screw as defined in EN ISO 4757-Z2, PZ2)

Terminal capacity (solid wire)

1.5 mm² - 35 mm²

Terminal capacity (stranded cable)

16 mm² (2x)

Terminal protection

Finger and hand touch safe, DGUV VS3, EN 50274

Terminals (top and bottom)

Twin-purpose terminals

Tightening torque

2 Nm - 2.4 Nm

Width in number of modular spacings

2
