Eaton

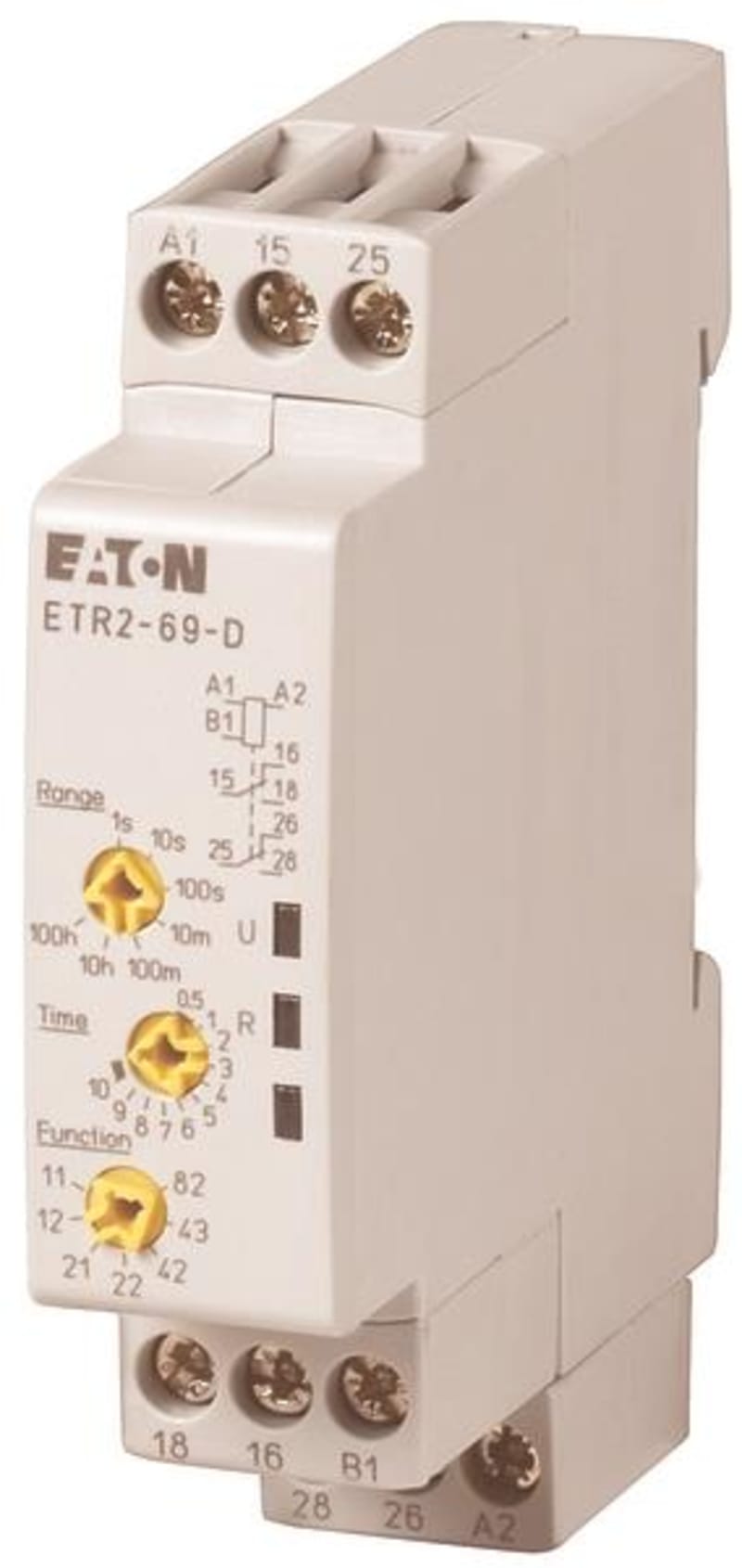

Time relay ETR2-69-D
Part numberETR2-69-DEAN / GTIN4015081175741HS code8536.90
Control & Automation
Relays & Timers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton ETR2-69-D Time relay, 2W, 0.05s-100h, multifunction, 12-240VAC 50/60Hz, 12-240VDC.
Technical Specifications
- Manufacturer part number (MPN)
- ETR2-69-D
- EAN / GTIN
- 4015081175741
- HS code
- 8536.90
- Sales unit
- pcs
- Eaton catalogue number
- 119428
- Depth
- 63 mm
- Height
- 80 mm
- Width
- 17.5 mm
- Weight
- 0.067 kg
- Certifications
- CSA File No.: UL report valid; IEC/EN 60947-5-1; UL; UL Category Control No.: NKCR
- NKCR7; CSA-22.2 No. 14; UL 508; CE; CSA Class No.
- 3211-03; IEC/EN 61812-1; UL File No.: E29184; Certified by UL for use in Canada
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -25 °C
- Heat dissipation capacity Pdiss
- 0 W
- Mains voltage tolerance
- 12 - 240 V DC; 12 - 240 V AC (at 50/60 Hz)
- Nominal current
- 3 A
- Rated operational current (Ie)
- 5 A at AC-15, 220 V 230 V 240 V; 3 A at 230 V (NO); 0.75 A at 230 V (NC)
- Electric connection type
- Screw connection
- Degree of protection
- IP20
- Number of contacts (change-over contacts)
- 2
- Product category
- ETR2 timing relays
- Suitable for
- DIN rail (top hat rail) mounting
- Time range - max
- 100 s
- Time range - min
- 0.05 s
- Type
- Timer relay
- Voltage type
- AC/DC
- Rated control supply voltage (Us) at AC
- 50 Hz - max
- 240 V
- Rated control supply voltage (Us) at AC
- 50 Hz - min
- 12 V
- Rated control supply voltage (Us) at AC
- 60 Hz - max
- 240 V
- Rated control supply voltage (Us) at AC
- 60 Hz - min
- 12 V
- Rated control supply voltage (Us) at DC - max
- 240 V
- Rated control supply voltage (Us) at DC - min
- 12 V
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081175741
- SAP 1200236515
- Code 82234391
Product Documentation
Document preview: Time relay, — Specification Data Sheet (OEM)
