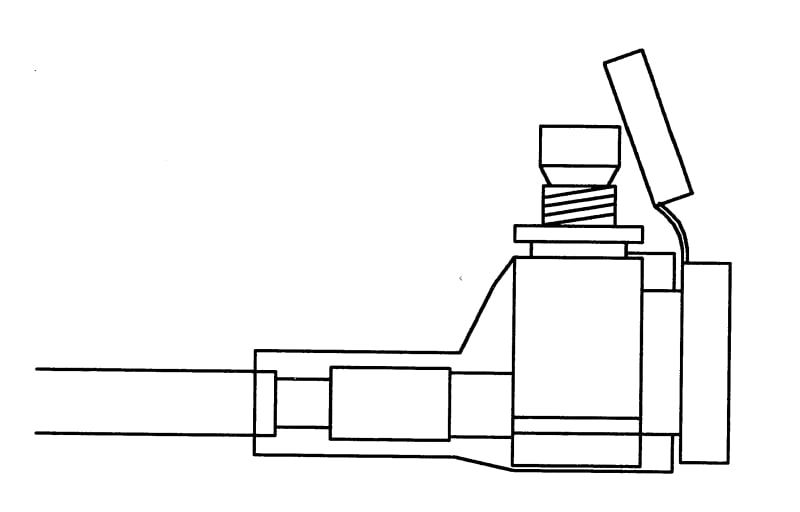

Terminal 50MM2 AL/CU FOR 16MM2 C (bpz-IC/50-16/235-N)

Eaton Terminal 50MM2 AL/CU FOR 16MM2 C (bpz-IC/50-16/235-N) is listed under Electrical Components / Terminal Blocks. HS code: 8536.90.

Manufacturer part number (MPN)

BPZ-IC/50-16/235-N EAN / GTIN: 4015081087976 Sales unit: pcs minimum order quantity: 10 Order multiple: 10 Eaton catalogue number: 109261 Depth: 50 mm Height: 30 mm Width: 280 mm Weight: 0.09 kg Compliances: RoHS conform Features: Contact safe Functions: Additional equipment Suitable for: Fine strand conductors; Solid conductors; Stranded conductors Color: Blue Nominal current: 60 A Number of poles: Single-pole Type: Additional equipment Conductor cross section, input - max: 50 mm² Conductor cross section, input - min: 16 mm² Conductor cross section, output - max: 16 mm² Conductor cross section, output - min: 16 mm² Mounting method: DIN-rail/screw; Surface mounting; Floor standing distribution board; Flush mounting Number of connections (Less Than 6 mm squared): 0 Number of connections (Less Than AWG 6): 0 Number of connections (Greater Than 25 mm squared): 1 Number of connections (Greater Than 250 kcmil): 0 Number of connections (10 mm squared): 0 Number of connections (16 mm squared): 1 Number of connections (25 mm squared): 0 Number of connections (250 kcmil): 0 Number of connections (AWG 2): 0 Number of connections (AWG 4): 0 Number of connections (AWG 4/0): 0 Number of connections (AWG 6): 0 Number of connections (total): 2 Number of inputs: 1 Number of outputs: 1 Connection type: Screwing Contact safe: Yes Suitable for fine strand conductors: Yes Suitable for solid conductors: Yes Suitable for stranded conductors: Yes Suitable for fine strand conductors without cable end sleeve: No Suitable for extra fine-strand conductors: No Conductor cross section, input: 16–50 mm² Conductor cross section, output: 16 mm² Country of origin: France

HS Code

8536.90

• EAN 4015081087976
• SAP 1000651686
• Code 8457726
