Eaton

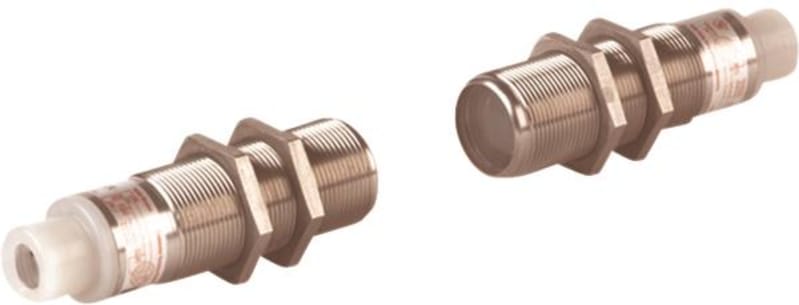

Photoelectric Sensor E58-30TS250-HAP
Part numberE58-30TS250-HAPEAN / GTIN4015081324903HS code8536.90
Sensors & Instrumentation
Photoelectric Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton E58-30TS250-HAP photoelectric sensor, E58 series.
Technical Specifications
- Manufacturer part number (MPN)
- E58-30TS250-HAP
- EAN / GTIN
- 4015081324903
- HS code
- 8536.90
- Sales unit
- pcs
- Eaton catalogue number
- 135697
- Depth
- 228.6 mm
- Height
- 44.45 mm
- Width
- 165.1 mm
- Weight
- 0.2 kg
- Certifications
- CSA-C22.2 No. 14; UL Category Control No.: NRKH
- NRKH7; Certified by UL for use in Canada; CSA File No.
- UL report applies to both US and Canada; IEC/EN 60947-5-2; UL File No.: E166051; CE; UL; UL 508
- Type
- Optical sensors
- Device type
- Transmitter
- Electric connection type
- Plug-in connection
- Fitted with
- Transmitter (for combination with detector)
- Enclosure material
- Metal
- Enclosure type
- Cylinder, screw-thread
- Explosion safety category for dust
- None
- Explosion safety category for gas
- None
- Functions
- Short-circuit protection; Protection against polarity reversal; Thru-light beam; Protection against wire breakage
- Voltage type
- DC
- Wire size
- 0
- Connection type
- Plug-in connection M12 x 1; 4-wire
- Cable sheath material
- Polyvinyl chloride (PVC)
- Light type
- Other
- Degree of protection
- NEMA 4; IP68
- Interface type
- Other
- LED indicator
- Status indication of Operating voltage: Red LED
- Switch function type
- Other
- Load current
- Max. 100 mA (Ie)
- Laser protection class
- None
- Operation agent-safety class
- Safety class 2
- Shock resistance
- 100 g, Mechanical, Shock duration 3 ms
- Optical surface material
- Glass
- Output current (mA) - max
- 100 mA
- Rated control supply voltage (Us) at DC - max
- 30 V
- Rated control supply voltage (Us) at DC - min
- 10 V
- Rated switching distance (Sn)
- 250000 mm
- Sensor length
- 111 mm
- Switching voltage of OSSD at state high
- 30 V
- Voltage rating - max
- 30 V
- Safety type (IEC 61496-1)
- 1
- Switching frequency
- 312 Hz
- Sensing mode
- Light-/dark switching
- Switching output type
- PNP
- Sensor material
- Stainless steel
- Product category
- E58 Harsh Duty Series
- Response time
- 1 ms
- Ambient operating temperature - max
- 55 °C
- Ambient operating temperature - min
- -40 °C
- Diameter sensor
- 30 mm
- Number of contact energized outputs with signalling function
- 0
- Number of outputs (protected contact energized)
- 0
- Number of outputs (protected semiconductor)
- 0
- Number of outputs (semiconductor with signaling function)
- 0
- Adjustment type
- Other
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081324903
- SAP 1200606835
- Code 82994746
Product Documentation
Document preview: Fotoelektrisk sensor, — Specification Data Sheet (OEM)
More from Eaton
Eaton

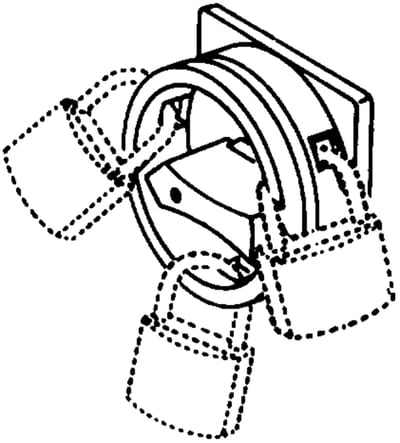

Eaton SVB-T0 Lockable Red Handle for T0/T3 Switch Disconnector
Eaton

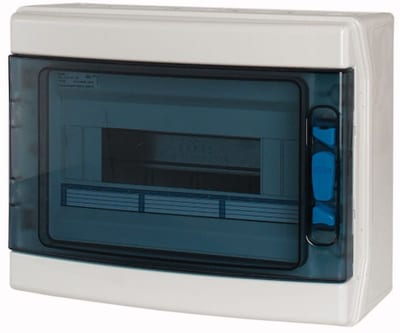

Enclosure IP65 1-Row 12 MOD. (IKA-1/12-ST)
Eaton
Step Switch 0-1-2-3-4 1POL
T0-2-8242/E
Eaton
INST.AUT.2P-S-16A
FAZ-S16/2
Eaton

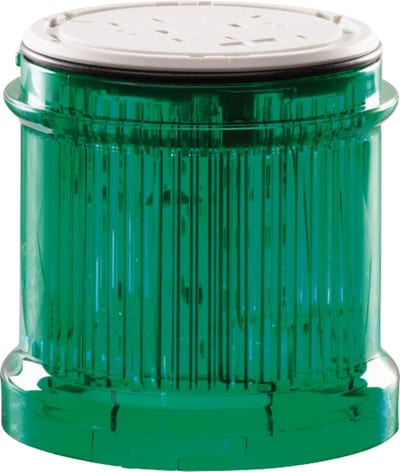

LED Steady light, Green, 230V (SL7-L230-G)
Eaton

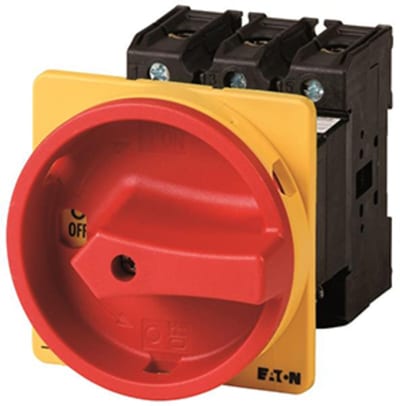

Safety Switch,63A (P3-63/V/SVB/HI11)
Eaton

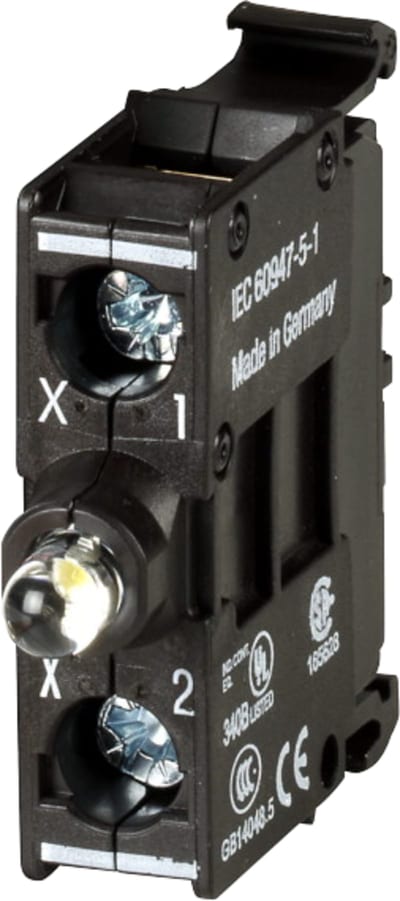

LED-Element 12-30V White Bottom
