Eaton

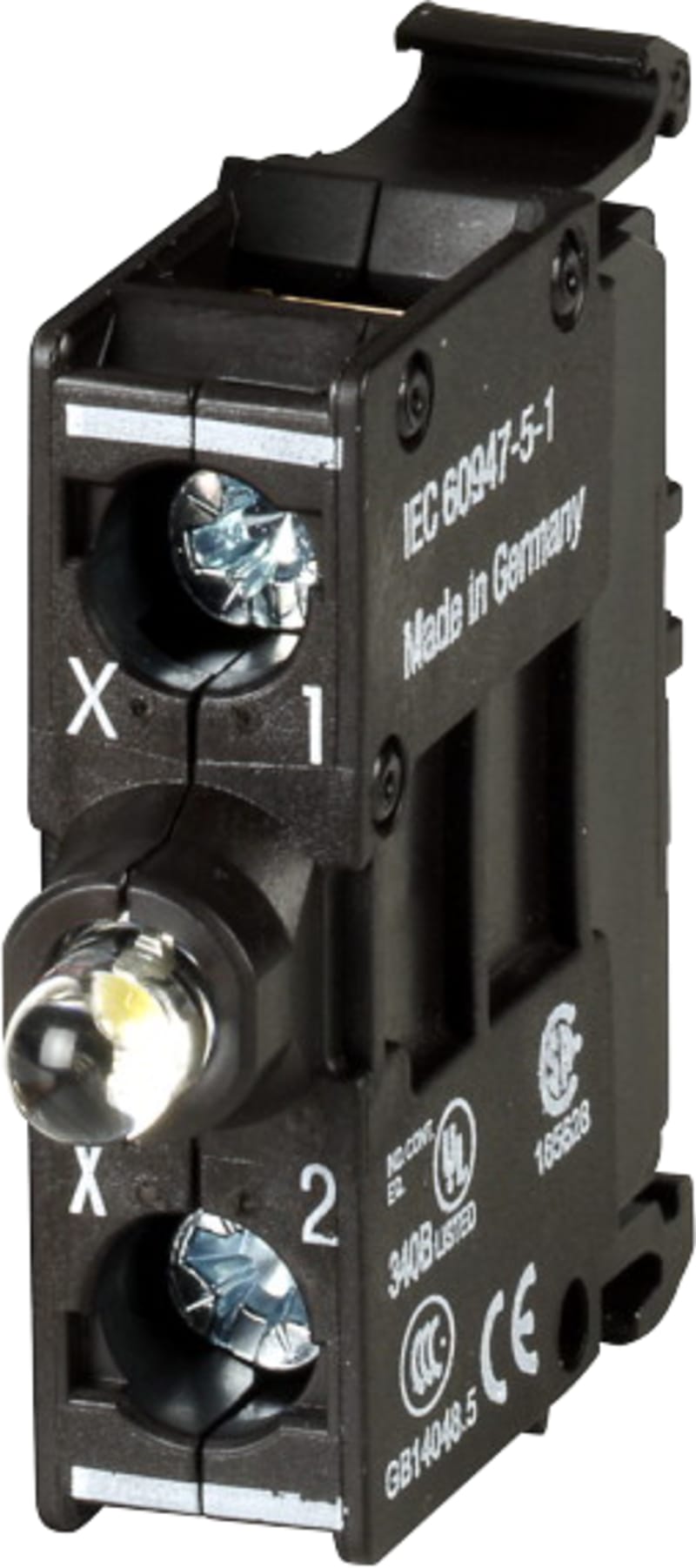

LED-Element 12-30V White Bottom
Part numberM22-LEDC-WEAN / GTIN4015082165604HS code8541.41
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-LEDC-W LED-Element 12-30V White Bottom.
Technical Specifications
- Manufacturer part number (MPN)
- M22-LEDC-W
- EAN / GTIN
- 4015082165604
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Eaton catalogue number
- 216560
- Depth
- 38 mm
- Height
- 10 mm
- Width
- 37 mm
- Weight
- 0.011 kg
- Compliances
- CE Marked
- Certifications
- IEC 60947-5; UL 508; EN 60947-5; CSA Std. C22.2 No. 14-05; CSA Std. C22.2 No. 94-91; VDE; CSA-C22.2 No. 14-05; IEC 60947-5-1; CSA-C22.2 No. 94-91; UL File No.: E29184; CE; CSA Class No.: 3211-03; UL Category Control No.: NKCR; CSA File No.: 012528; IEC/EN 60947-5; CSA; UL
- Ambient operating temperature - max
- 70 °C
- Ambient storage temperature - max
- 80 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- No
- Static heat dissipation, non-current-dependent Pvs
- 0.45 W
- Power consumption
- Max. 0.26 W
- Rated insulation voltage (Ui)
- 500 V
- Rated operational current (Ie) - max
- 14 mA
- Rated operational current (Ie) - min
- 5 mA
- Rated operational voltage (Ue) at AC - max
- 30 V
- Rated operational voltage (Ue) at AC - min
- 12 V
- Rated operational voltage (Ue) at DC - max
- 30 V
- Rated operational voltage (Ue) at DC - min
- 12 V
- Color
- White
- Fitted with
- Diode; Light source
- Light color
- White
- Degree of protection
- IP20
- Lifespan, electrical
- 100,000 h (at 25°C, according to EN60064)
- Operating torque
- 0.8 Nm
- Overvoltage category
- III
- Pollution degree
- 3
- Rated impulse withstand voltage (Uimp)
- 6000 V AC
- Voltage type
- AC/DC
- Connection type
- Base fixing
- Mounting position
- As required
- Terminal capacity (solid)
- 0.75 - 2.5 mm²
- Terminal capacity (stranded)
- 0.5 - 2.5 mm²
- Lamp holder
- None
- Transformer integrated
- No
- With integrated voltage decreasing resistor
- No
- With integrated diode
- Yes
- Colour light source
- White
- Lamp type
- LED
- Type of fastening
- Floor fastening
- With light source
- Yes
- Connection type auxiliary circuit
- Screw connection
- Rated voltage Ue at DC
- 30 V
- Voltage type for actuating
- AC/DC
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8541.41
Cross References
- EAN 4015082165604
- SAP 1000031186
- Code 8241925
Product Documentation
Document preview: LED-ELEMENT 12-30V WHITE BOTTOM (M22-LEDC-W) — Specification Data Sheet (OEM)
