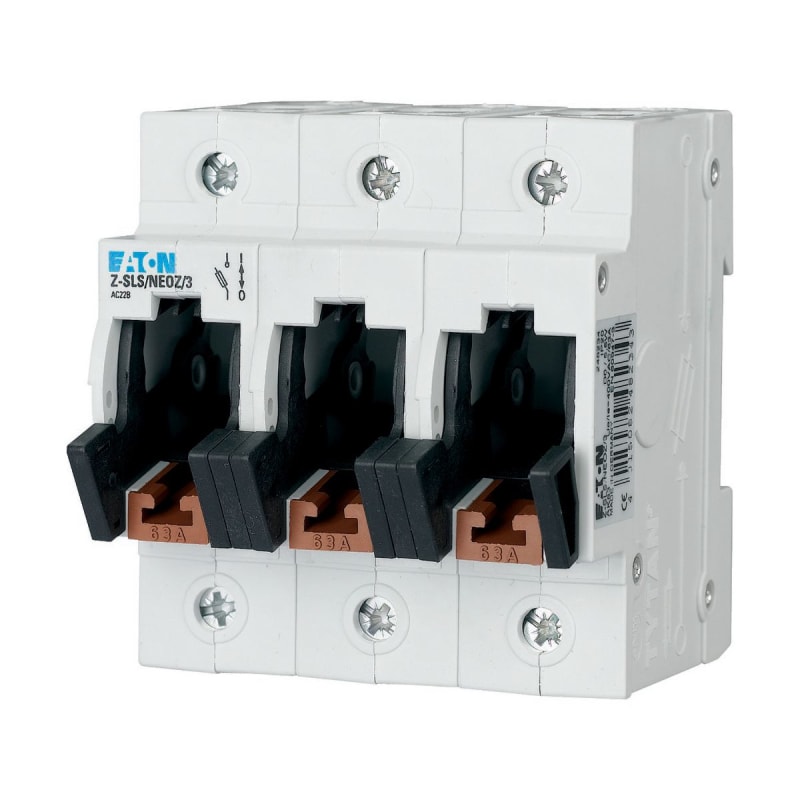

Sikringskilleswitch Neoz 3P

Eaton Z-SLS/NEOZ/3 Fuse Insulator Switch Z-SLS/NEOZ/3.

Manufacturer part number (MPN)

Z-SLS/NEOZ/3

EAN / GTIN

4015082482343

Sales unit

pcs

Package quantity

4 pcs

Eaton catalogue number

248234

Depth

88 mm

Height

77 mm

Width

81 mm

Weight

0.35 kg

Compliances

RoHS conform

Amperage Rating

63 A

Frame

Standard front dimension: 45 mm

Pollution degree

3

Creepage resistance

CTI 600

Equipment heat dissipation, current-dependent

1.5 W

Rated operational voltage (Ue) - max

400 V

Rated short-circuit making capacity up to 690 V, 50/60 Hz

50 kA

Rated uninterrupted current (Iu)

63 A

Terminals

Lift terminals

Voltage rating at AC

400 V AC

Number of poles

Three-pole

Rated impulse withstand voltage (Uimp)

6 kV

Degree of protection

IP20

Switching category

AC 22 B, DC 21 B

Ambient operating temperature - max

60 °C

Ambient operating temperature - min

-25 °C

Current heat loss per contact at Ie

0.5 W

Enclosure width

86 mm

Heat dissipation per contact with fuse link at Ie

6.6 W

Construction size

D02

Functions

Fuse switch-disconnector Z-SL…/NEOZ/…

Overvoltage category

III; IV

Fuse cartridge

D02, D01

Mounting method

Quick attachment for top-hat rail IEC/EN 60715

Rated operation current (Ie)

63 A

Voltage rating

400 V

Flammability characteristics (UL)

V0, glow-wire test 960 °C (UL94)

Type

Fuse material

Special features

Standard empty Suitable for fuses, utilisation class gG (gL), aM Current coding through fuse set sealable Infeed possible from both sides

Mounting width

27 mm per pole (1.5 space units)

Terminal capacity (solid cable)

1.5 mm² - 35 mm²

Rated operational current for specified heat dissipation (In)

63 A

Rated current

63 A

Rated voltage

400 V

Country of origin

Germany

HS Code

8536.50
