Earth-fault RCD 16A 3P+N/C A 30MA

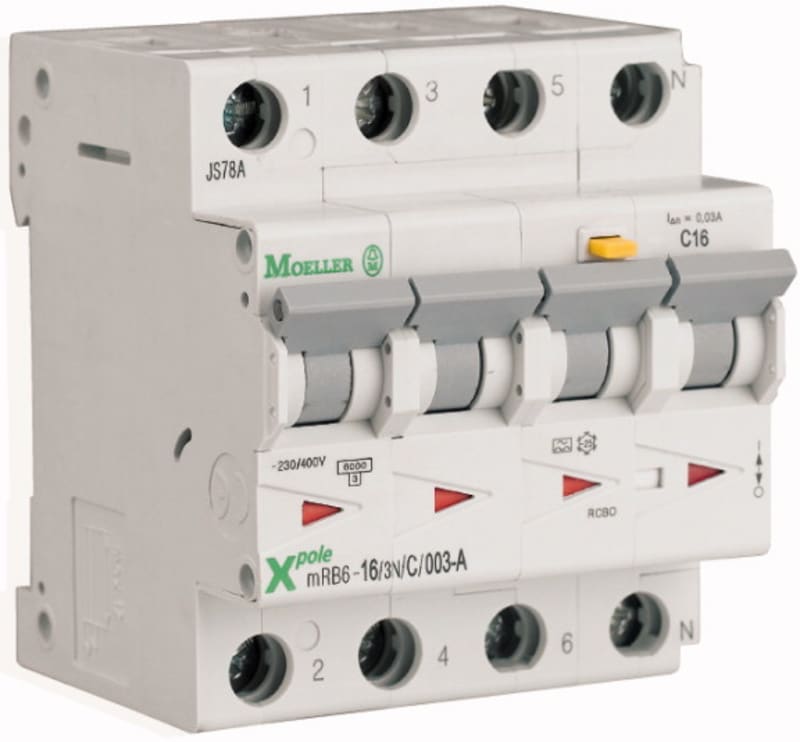

Eaton mRB6-16/3N/C/003-A 16 Ampèr 4 pole/4modules RCBO.Trip indicator white/blue. C-characteristic.

Manufacturer part number (MPN)

mRB6-16/3N/C/003-A

EAN / GTIN

4015081184903

HS code

8536.90

Sales unit

pcs

Package quantity

30 pcs

Eaton catalogue number

120660

Depth

80 mm

Height

75.5 mm

Width

70 mm

Weight

0.445 kg

Compliances

RoHS conform

Certifications

CE

Current limiting class

3

Features

Concurrently switching N-neutral

Standards

IEC/EN 61009

Application

Switchgear for residential and commercial applications

Basic function

Combined RCD/MCB devices

Fault current rating

0.03 A

Number of poles

Three-pole + N

Number of poles (protected)

4

Number of poles (total)

4

Product application

Switchgear for industrial and advanced commercial applications

Product range

mRB6

Rated current

16 A

Rated current of product range

6 - 25 Ampere

Release characteristic

C

Sensitivity type

Type A, pulse-current sensitive

Tripping characteristic

C

Type

RCBO

Ambient operating temperature - max

40 °C

Ambient operating temperature - min

-25 °C

Equipment heat dissipation, current-dependent

10.9 W

Heat dissipation capacity

0 W

Heat dissipation per pole, current-dependent

0 W

Rated operational current for specified heat dissipation (In)

16 A

Static heat dissipation, non-current-dependent

0 W

Back-up fuse

100 Ampere gL

Disconnection characteristic

Undelayed

Frequency rating

50 Hz

Impulse withstand current

Partly surge-proof, 250 A

Leakage current type

A

Pollution degree

2

Rated fault currents of product range

30, 100, 300 MilliAmpere

Rated impulse withstand voltage (Uimp)

4 kV

Rated insulation voltage (Ui)

500 V

Rated non-tripping current

0.5 x I∆n

Rated operational voltage (Ue) - max

400 V

Rated short-circuit breaking capacity (EN 60947-2)

6 kA

Rated short-circuit breaking capacity (EN 61009-1)

6 kA

Rated short-circuit breaking capacity (EN 61009)

6 kA

Rated switching capacity

6 kA

Rated switching capacity (IEC/EN 60947-2)

6 kA

Rated switching capacity (IEC/EN 61009)

6 kA

Selectivity class

3

Surge current capacity

0.25 kA

Tripping

Non-delayed

Voltage rating

400 V

Voltage rating at AC

230 V / 400 V

Voltage type

AC

Built-in depth

70 mm

Climatic proofing

IEC 68-2: 25 °C - 55 °C at 90 % - 95 % humidity

Connectable conductor cross section (multi-wired) - max

25 mm²

Connectable conductor cross section (multi-wired) - min

1 mm²

Connectable conductor cross section (solid-core) - max

25 mm²

Connectable conductor cross section (solid-core) - min

1 mm²

Degree of protection

IP20

Degree of protection (built in)

IP40

Device height

80 mm

Frame

45 mm

Material thickness

2 mm

Mounting Method

DIN rail

Mounting style

Tri-stable slide catch - enables removal from existing busbar combination

Solid terminal capacities

1 - 25 Square Millimeter

Terminal protection

Busbar tag shroud to VBG4

Terminals (top and bottom)

Twin-purpose

Width in number of modular spacings

4

HS Code

8536.90
