Eaton

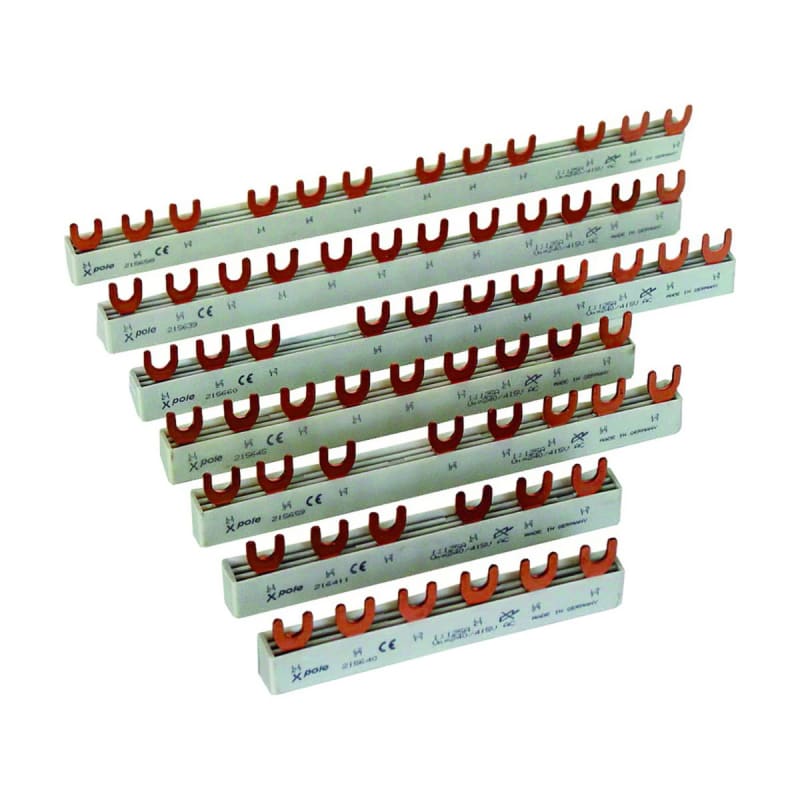

BUSBAR 2-PHASE 1+2-Pole 4MODULE
Part numberEVG-2PHAS/4MODULEAN / GTIN4015082682200HS code8536.90
Electrical Components
Busbar Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton EVG-2PHAS/4MODUL Busbar 2-Phase 1+2-Pole 4 Module.
Technical Specifications
- Manufacturer part number (MPN)
- EVG-2PHAS/4MODUL
- EAN / GTIN
- 4025221021067
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Eaton catalogue number
- 268220
- Depth
- 27 mm
- Height
- 8 mm
- Width
- 65 mm
- Weight
- 0.02 kg
- Compliances
- RoHS conform
- Used with
- Busbar; EVG
- Type
- Busbar EVG
- Features
- Insulated
- Accessory/spare part type
- Busbar for combined residual current/power circuit breaker; Busbar for miniature circuit breaker; Busbar for residual current circuit breakers
- Electric connection type
- Fork
- Rated surge voltage
- 4 KV
- Rated uninterrupted current (Iu)
- 63 A
- Suitable for number of devices
- 2
- Number of poles
- Two-pole
- Color
- Other
- Cross section
- 10 mm²
- Number of modular spacings
- 4
- Number of phases
- 2
- Rated operational voltage (Ue) - max
- 500 V
- Rated conditional short-circuit current (Iq)
- 25 kA
- Functions
- Busbar
- Suitable for
- 2 devices
- Insulated
- Yes
- Rated permanent current Iu
- 63 A
- Length
- 65 mm
- Conditioned rated short-circuit current Iq
- 25 kA
- Width in number of modular spacings
- 4
- Type of electric connection
- Fork
- Suitable for devices with auxiliary switch
- No
- Suitable for devices with N-conductor
- No
- Max. rated operation voltage Ue
- 500 V
- Can be cut to size
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4025221021067
- SAP 1000062818
- Code 8888669
Product Documentation
Document preview: SAMLESK.2-FAS 1+2-POLE 4module (EVG-2PHAS/4MODUL) — Specification Data Sheet (OEM)
