Eaton

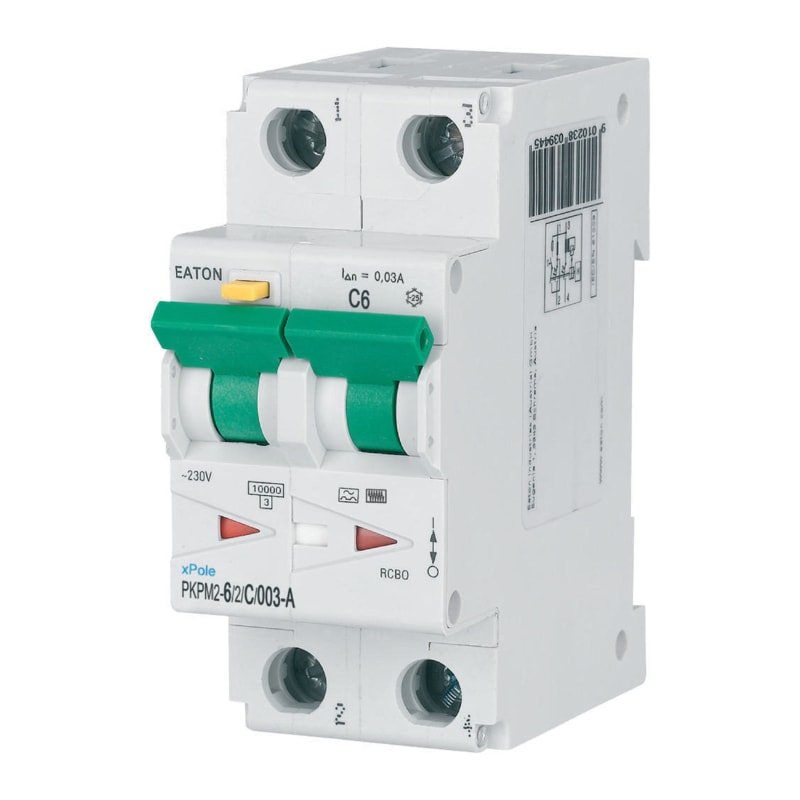

Residual current circuit breaker with overcurrent 6A 2P C 30MAA
Part number111638EAN / GTIN4015081111985HS code8536.90
Electrical Components
RCDs & RCBOs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton 111638 6 A - green residual current circuit breaker with overcurrent.
Technical Specifications
- Manufacturer part number (MPN)
- 111638
- EAN / GTIN
- 4015081111985
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Eaton catalogue number
- 111638
- Depth
- 86 mm
- Height
- 75 mm
- Width
- 37 mm
- Weight
- 0.25 kg
- Compliances
- CE Marked; RoHS conform
- Certifications
- CE
- Voltage rating
- 230 V
- Surge current capacity
- 0.25 kA
- Voltage type
- AC
- Width in number of modular spacings
- 2
- Operating ambient temperature - max
- 40 °C
- Operating ambient temperature - min
- -25 °C
- Product application
- Switchgear for industrial and advanced commercial applications
- Product range
- PKPM2
- Rated current
- 6 A
- Rated operational current for specified heat dissipation (In)
- 6 A
- Rated switching capacity (IEC/EN 61009)
- 10 kA
- Static heat dissipation, non-current-dependent
- 0 W
- Tripping characteristic
- C
- Built-in depth
- 70 mm
- Current limiting class
- 3
- Rated short-circuit breaking capacity (EN 60947-2)
- 0 kA
- Ambient operating temperature - max
- 40 °C
- Ambient operating temperature - min
- -25 °C
- Fault current rating
- 0.03 A
- Heat dissipation capacity
- 0 W
- Heat dissipation per pole, current-dependent
- 0 W
- Number of poles (protected)
- 2
- Number of poles (total)
- 2
- Rated operational voltage (Ue) - max
- 230 V
- Rated switching capacity
- 10 kA
- Basic function
- Combined RCD/MCB devices
- Mounting Method
- DIN rail
- Equipment heat dissipation, current-dependent
- 2.2 W
- Rated impulse withstand voltage (Uimp)
- 4 kV
- Degree of protection
- IP20
- Tripping
- Non-delayed
- Overvoltage category
- III
- Pollution degree
- 2
- Impulse withstand current
- Partly surge-proof, 250 A
- Leakage current type
- A
- Release characteristic
- C
- Sensitivity type
- Type A, pulse-current sensitive
- Frequency rating
- 50 Hz
- Rated insulation voltage (Ui)
- 250 V
- Connectable conductor cross section (solid-core) - min
- 1 mm²
- Connectable conductor cross section (solid-core) - max
- 25 mm²
- Connectable conductor cross section (multi-wired) - min
- 1 mm²
- Connectable conductor cross section (multi-wired) - max
- 25 mm²
- Rated short-circuit breaking capacity (EN 61009)
- 10 kA
- Rated short-circuit breaking capacity (EN 61009-1)
- 10 kA
- Number of poles
- Two-pole
- Disconnection characteristic
- Undelayed
- Type
- RCBO
- Application
- Switchgear for residential and commercial applications
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081111985
- SAP 1000695021
- Code 8305858
Product Documentation
Document preview: Residual current circuit breaker with overcurrent 6A 2p C 30mAA (111638) — Specification Data Sheet (OEM)
