Eaton

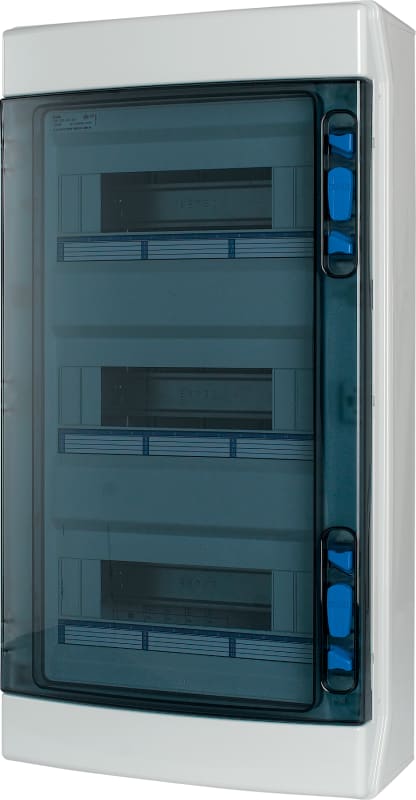

Enclosure IP65 UV 3-Row 36 MOD.
Part numberIKA-3/36-ST-UVEAN / GTIN4015081706549HS code8538.10
Enclosures
Distribution Boards
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Enclosure IP65 UV 3-Row 36 MOD. (part number IKA-3/36-ST-UV) is listed under Enclosures / Distribution Boards. Sales unit: pcs; Eaton catalogue number: 174192; Depth: 145 mm; Height: 586 mm; Width: 310 mm; Weight: 4.11 kg.
Technical Specifications
- Manufacturer part number (MPN)
- IKA-3/36-ST-UV
- EAN / GTIN
- 4015081706549
- Sales unit
- pcs
- Eaton catalogue number
- 174192
- Depth
- 145 mm
- Height
- 586 mm
- Width
- 310 mm
- Weight
- 4.11 kg
- Compliances
- RoHS conform
- Certifications
- EN 62208; IEC/EN 60670-24
- Features
- UV resistant
- Fitted with
- Locking screws can be sealed; Neutral-/protective conductor terminal; Device support rails; Sealing caps; Basic device; Reserve section cover 6 space units; Current circuit designation
- Functions
- Extension possible; Basic device; Sealable
- Protection class
- II (totally insulated)
- RAL-number
- 7035
- Special features
- IP65 Protection Class II Plastic enclosure gray (RAL 7035)
- Used with
- Installation distribution board; Basic device; IKA industrial distribution board
- Application
- Indoor (installation site) Outdoor (installation site)
- Color
- Light gray (RAL 7035); Gray
- Type
- Basic device IKA industrial distribution board Installation distribution board
- Ambient operating temperature details
- -25 °C - 40 °C
- Frequency rating of contacts
- 50 Hz
- Voltage rating at AC
- 415 V AC
- Built-in depth
- 70 mm
- Cable entry postion
- Metric cable entries on top and bottom, side, back plate
- Closure type
- Other
- Cover/door color
- Transparent
- Cover/door model
- With notch
- Cover/door type
- Door; Single
- Degree of protection
- IP65; IK08 (impact resistance)
- Enclosure material
- Plastic
- Internal depth
- 60 mm
- Material
- Polycarbonate (plastic)
- Module rack type
- Rail frame
- Mounting method
- DIN-rail; Surface mounted (plaster); Surface mounting
- Number of module space units per row
- 12
- Number of rows
- 3
- PE and N terminal number and cross section
- N: 12 x (2.5 mm² - 6 mm²) + 12 x (4 mm² - 10 mm²) + 1 x (10 mm² - 25 mm²) + 1 x (16 mm² - 35 mm²); PE: 12 x (2.5 mm² - 6 mm²) + 12 x (4 mm² - 10 mm²) + 1 x (10 mm² - 25 mm²) + 1 x (16 mm² - 35 mm²)
- Protective shrouding material
- Plastic
- Terminal type
- Screw terminals
- Width in number of modular spacings
- 12
- Colour
- Grey
- UV resistant
- Yes
- With mounting plate
- No
- Type of covering
- Door
- EMC-version
- No
- Extension possible
- Yes
- Inner depth
- 60 mm
- DIN-rail
- Yes
- Sealable
- Yes
- Housing material
- Plastic
- With N-disconnect slide
- No
- Type of door
- Single
- Transparent cover/door
- Yes
- With lock
- No
- Cover model
- With notch
- Earthing terminal block
- No
- Neutral terminal block
- No
- Signal passing door
- No
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015081706549
- SAP 1000659222
- Code 8234185
Product Documentation
Document preview: ENCLOSURE IP65 UV 3-RAD 36 MOD. (IKA-3/36-ST-UV) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Residual Current Circuit Breaker G/B 25A/4/30MA
167892
Eaton
Residential Distribution Board G2 SideBySide 6-Row 106 mm
EP-501124
Eaton
Residential Distribution Board IT 50A 14 Circuits
1728148
Eaton

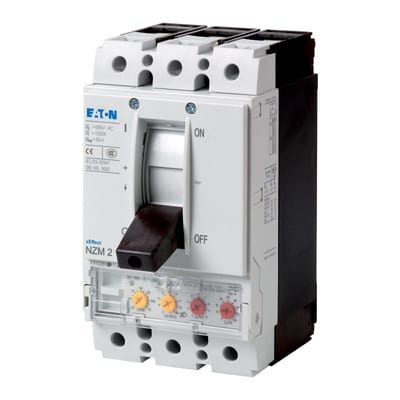

Eaton NZMN2-VE250-BT Molded-Case Circuit Breaker 3-Pole 250A 50KA
Eaton

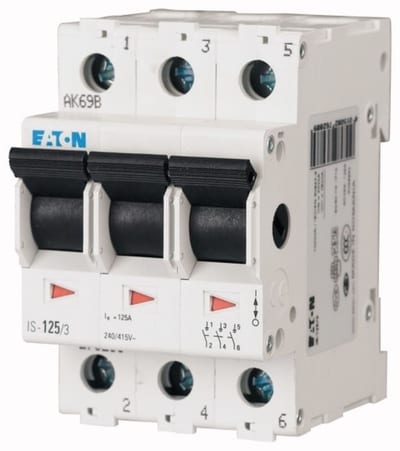

Load-break switch 125A 3P
276288
Eaton

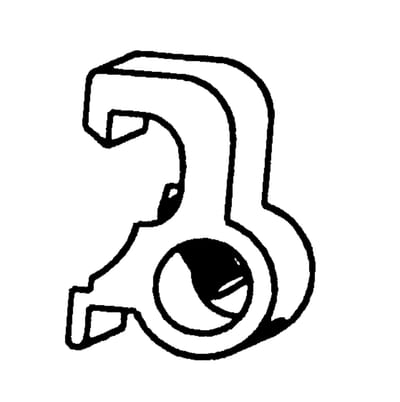

Locking bracket, unit breaker
ZV7-11-BE
Eaton

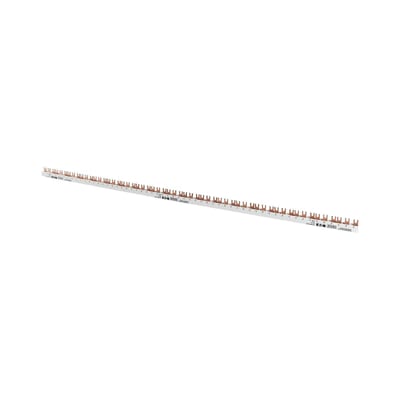

Busbar 3P+N 1M 16mm²
