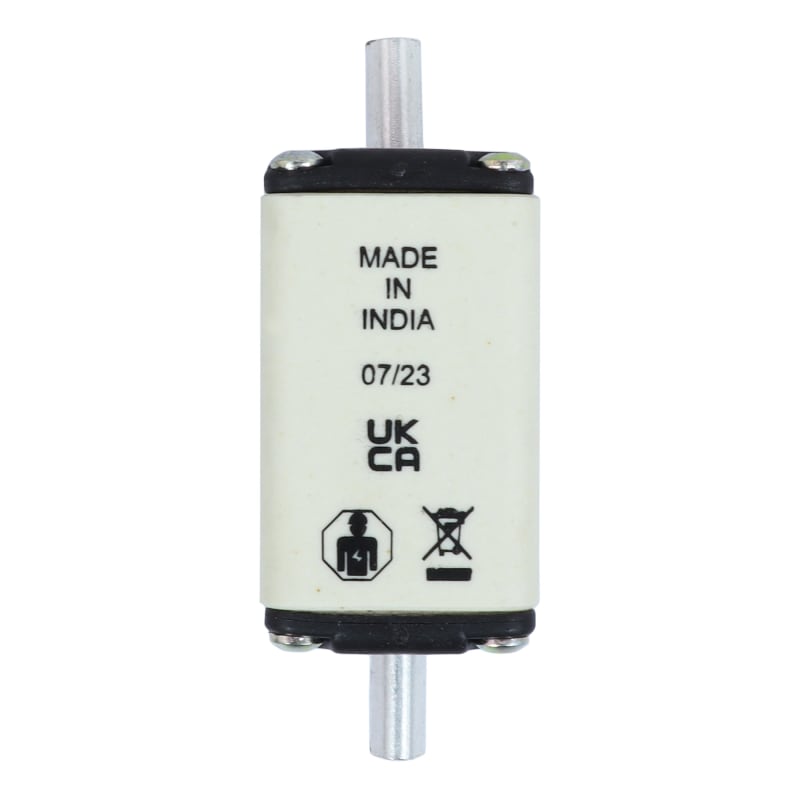

Eaton NH00 gG Knife Fuse 100 A / 690 V AC 120 kA
Pricing
Request a quote
We reply within 24 hours
Product Description
NH00 knife-blade fuse-link rated 100 A / 690 V AC with 120 kA breaking capacity and gG (general purpose) characteristic per IEC 60269. Equipped with combination fuse status indicator and insulated metal gripping lugs for safe live handling in NH switch-disconnectors and busbar systems. Typical application is short-circuit and overload protection of feeder cables and distribution circuits in industrial and utility switchgear.
Technical Specifications
- Manufacturer part number (MPN)
- 100NHG00BI-690 EAN / GTIN: 5027590428101 HS code: 8536.90 Sales unit: pcs Package quantity: 3 pcs Breaking capacity: 120 kA Voltage type: AC Rated current: 100 A Rated voltage: 690 V Rated switching capacity: 120 kA Construction size: NH00 Utilization category according to IEC 60269: gG Type of fuse status indicator: Combination fuse status indicator Rated voltage AC: 690 V Insulated metal gripping lugs (IMGL): Yes Fuse construction type according to IEC 60269: NH00 Rated switching capacity AC: 120 kA Country of origin: India
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 5027590428101
- SAP 1200661071
- Code 83094709
Product Documentation
