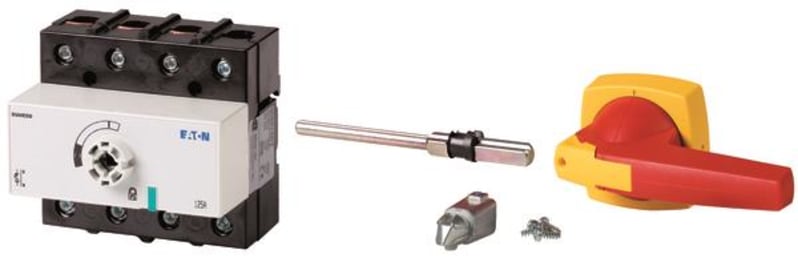

Safety Switch (DMM-125/4/M4/P-R)

Eaton Safety Switch (DMM-125/4/M4/P-R) is listed under Switchgear & Protection / Disconnect Switches. Sales unit: pcs; Eaton catalogue number: 6094968; Depth: 155 mm; Height: 115 mm; Width: 137 mm; Weight: 0.9 kg.

Manufacturer part number (MPN)

DMM-125/4/M4/P-R

EAN / GTIN

8711426321052

Sales unit

pcs

Eaton catalogue number

6094968

Depth

155 mm

Height

115 mm

Width

137 mm

Weight

0.9 kg

Certifications

IEC/EN 60204; CE; Lloyds; KEMA; RoHS; VDE 0660; IEC/EN 60947-3; EAC; IEC/EN 60947

Catalog Notes

Rated Short-time Withstand Current (Icw) for a time of 1 second

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-40 °C

Number of auxiliary contacts (change-over contacts)

0

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Equipment heat dissipation, current-dependent Pvid

4.9 W

Heat dissipation per pole, current-dependent Pvid

4.5 W

Rated operational current for specified heat dissipation (In)

125 A

Rated breaking capacity at 400/415 V (cos phi to IEC 60947-3)

1000 A

Rated breaking capacity at 500 V (cos phi to IEC 60947-3)

528 A

Rated breaking capacity at 660/690 V (cos phi to IEC 60947-3)

336 A

Rated insulation voltage (Ui)

1000 V

Rated operational current (Ie) at AC-21, 400 V, 415 V

125 A

Rated operational current (Ie) at AC-21, 500 V

125 A

Rated operational current (Ie) at AC-21, 690 V

125 A

Rated operational current (Ie) at AC-22, 380 V, 400 V, 415 V

125 A

Rated operational current (Ie) at AC-22, 500 V

125 A

Rated operational current (Ie) at AC-22, 690 V

125 A

Rated operational current (Ie) at AC-23A, 400 V, 415 V

63 A

Rated operational current (Ie) at AC-23A, 500 V

63 A

Rated operational current (Ie) at AC-23A, 690 V

45 A

Rated operational power at AC-23A, 400 V, 50 Hz

30 kW

Rated operational power at AC-23A, 500 V, 50 Hz

45 kW

Rated operational power at AC-23A, 690 V, 50 Hz

40 kW

Rated operational voltage (Ue) at AC - max

690 V

Rated uninterrupted current (Iu)

125 A

Uninterrupted current

Rated uninterrupted current Iu is specified for max. cross-section.

Features

Version as emergency stop installation; Version as main switch; Version as maintenance-/service switch

Fitted with

Red rotary handle and yellow locking ring; Metal shaft for a control panel depth of 400 mm

Functions

Emergency switching off function; Interlockable

Number of poles

Four-pole

Accessories

Auxiliary contact fitted by user.

Actuator color

Red

Actuator type

Long turning handle

Degree of protection

NEMA Other

Degree of protection (front side)

IP20

Lifespan, mechanical

10,000 Operations

Mounting method

Rear mounting

Mounting position

As required

Overvoltage category

III

Pollution degree

3

Product Category

Main switch Switch-disconnector

Rated impulse withstand voltage (Uimp)

6000 V

Safety parameter (EN ISO 13849-1)

B10d values as per EN ISO 13849-1, table C.1

Suitable for

Ground mounting; Intermediate mounting

Breaking current

13.7 kA

Light-through energy

Max. 134 kA²s

Rated conditional short-circuit current (Iq)

50 kA; 30 kA at 415 V

Rated short-time withstand current (Icw)

2.5 kA; 2,5 kA, Contacts, 1 second

Short-circuit protection rating

125, Fuse, Contacts

Stripping length (main cable)

21 mm

Terminal capacity

6 - 70 mm², flexible with ferrules to DIN 46228

Tightening torque

7 Nm, Screw terminals

Country of origin

United Kingdom

HS Code

8536.50

• EAN 8711426321052
• SAP 1200299046
• Code 82269889
