Eaton

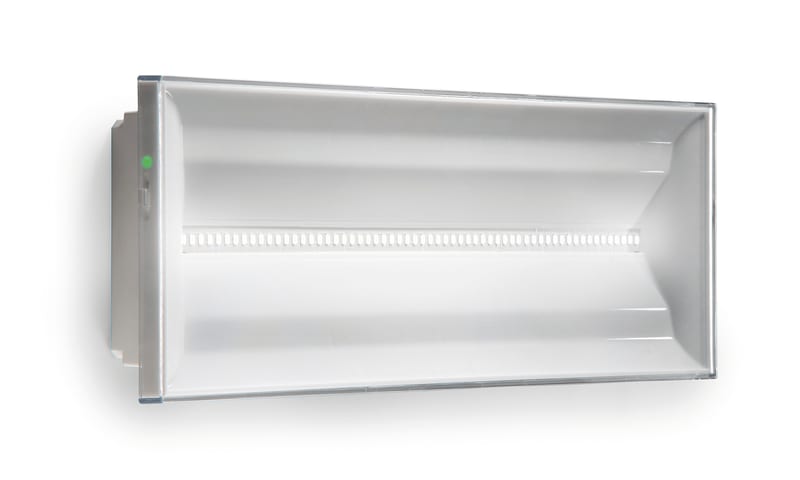

NexiTech LED 150LM CGLine+
Part numberNEXITECH LED 150LM 1H30 CGLine+EAN / GTIN3660191602468HS code8531.10
Lighting & Electrical Accessories
Emergency Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton NEXITECH LED 150LM 1H30 CGLine+ NexiTech LED 150lm 1,5t Combination Luminaire CGLine+.
Technical Specifications
- Manufacturer part number (MPN)
- NEXITECH LED 150LM 1H30 CGLine+
- EAN / GTIN
- 3660191602468
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Luminous flux
- 150 lm
- Suitable for continuous circuit
- No
- Suitable for standby switching
- No
- Mounting method
- Surface mounting/recessed mounting
- Function
- Escape route lighting/signage
- Suitable for labelling type
- Insert sheet/plate
- Type of indicator
- Single/double-sided
- With pictogram
- No
- Monitoring equipment
- Safety module for monitoring (central feeded system)
- Wiring system
- Continuous circuit/emergency circuit
- With remote switch connection
- No
- With remote control
- No
- Power supply system
- Peripheral (individual battery)
- Battery technology
- NiCd
- Lamp type
- LED not exchangeable
- With light source
- No
- Suitable for number of light sources
- 1
- Lamp holder
- None
- Number of lighting heads
- 48
- Housing material
- Plastic
- Housing colour
- White
- Material cover
- Plastic, transparent
- Nominal current
- 9.4–16.3 mA
- Voltage type
- AC
- Nominal voltage
- 220–240 V
- Type of control gear
- LED operating device current-controlled
- Exchangeable control gear
- No
- Light distributor
- Reflector
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Luminous flux in emergency mode
- 150 lm
- Rated life time L80/B10 at 25 °C
- 70000 h
- Constant light output (CLO)
- No
- Degree of protection (IP)
- IP40
- Impact strength
- IK03
- Protection class according to IEC 61140
- II
- Rated ambient temperature according to IEC 62722-2-1
- 5–30 °C
- Max. system power
- 3.6 W
- Rated luminous flux according to IEC 62722-2-1
- 150 lm
- Luminous flux in standby mode
- 60 lm
- Colour temperature
- 5053 K
- Power factor
- 0.52
- Recognition distance
- 20 m
- Nominal operation time
- 1.5 h
- Width
- 110 mm
- Height/depth
- 40 mm
- Length
- 290 mm
- Built-in width
- 95 mm
- Built-in height/depth
- 96 mm
- Built-in length
- 272 mm
- Type of wiring
- Suitable for loop-through wiring
- Number of poles
- 2
- Conductor cross section
- 2.5 mm²
- Connection type
- Plug-in connection
- RAL-number housing
- 9003
- Connectable conductor cross section
- 0.5–2.5 mm²
- Emergency power supply system
- Peripheral (individual battery)
- Power consumption in emergency mode
- 2.4 W
- Emergency function monitoring system
- Automatic self test
- With heating element for battery
- No
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8531.10
Cross References
- EAN 3660191602468
- SAP 1200607721
- Code 82997577
Product Documentation
Document preview: NexiTech LED 150LM CGLine+ (NEXITECH LED 150LM 1H30 CGLine+) — Specification sheet
