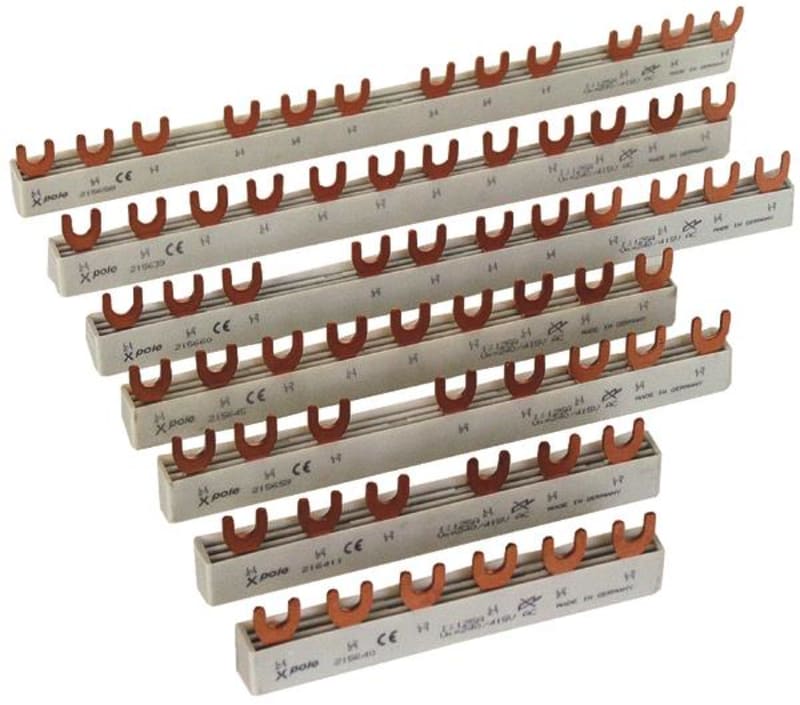

Busbar 2P+AUX (EVG-16/2PHAS/10MODUL/HI)
Part numberEVG-16/2PHAS/10MODUL/HIEAN / GTIN4015082914844HS code8536.20
Electrical Components
Busbar Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton EVG-16/2PHAS/10MODUL/HI EV busbars 2Ph., 12HP, for auxiliary contact unit.
Technical Specifications
- Manufacturer part number (MPN)
- EVG-16/2PHAS/10MODUL/HI
- EAN / GTIN
- 4015082914844
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Eaton catalogue number
- 291484
- Depth
- 33 mm
- Height
- 7.8 mm
- Width
- 210 mm
- Weight
- 0.09 kg
- Compliances
- RoHS conform
- Used with
- Busbar; EVG
- Type
- Busbar EVG
- Features
- Insulated
- Accessory/spare part type
- Busbar for miniature circuit breaker; Busbar for combined residual current/power circuit breaker; Busbar for residual current circuit breakers
- Electric connection type
- Fork
- Rated surge voltage
- 4 KV
- Rated uninterrupted current (Iu)
- 80 A
- Suitable for number of devices
- 5
- Number of poles
- Two-pole
- Color
- Other
- Cross section
- 16 mm²
- Number of modular spacings
- 10
- Number of phases
- 2
- Rated operational voltage (Ue) - max
- 415 V
- Rated conditional short-circuit current (Iq)
- 25 kA
- Functions
- Busbar
- Suitable for
- Devices with auxiliary switch; 5 devices
- Insulated
- Yes
- Rated permanent current Iu
- 80 A
- Length
- 445 mm
- Conditioned rated short-circuit current Iq
- 25 kA
- Width in number of modular spacings
- 10
- Type of electric connection
- Fork
- Suitable for devices with auxiliary switch
- Yes
- Suitable for devices with N-conductor
- No
- Max. rated operation voltage Ue
- 415 V
- Can be cut to size
- No
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 4015082914844
- SAP 1000293176
- Code 885061
Product Documentation
Document preview: Busbar 2P+AUX (EVG-16/2PHAS/10MODUL/HI) — Specification Data Sheet (OEM)
