Eaton

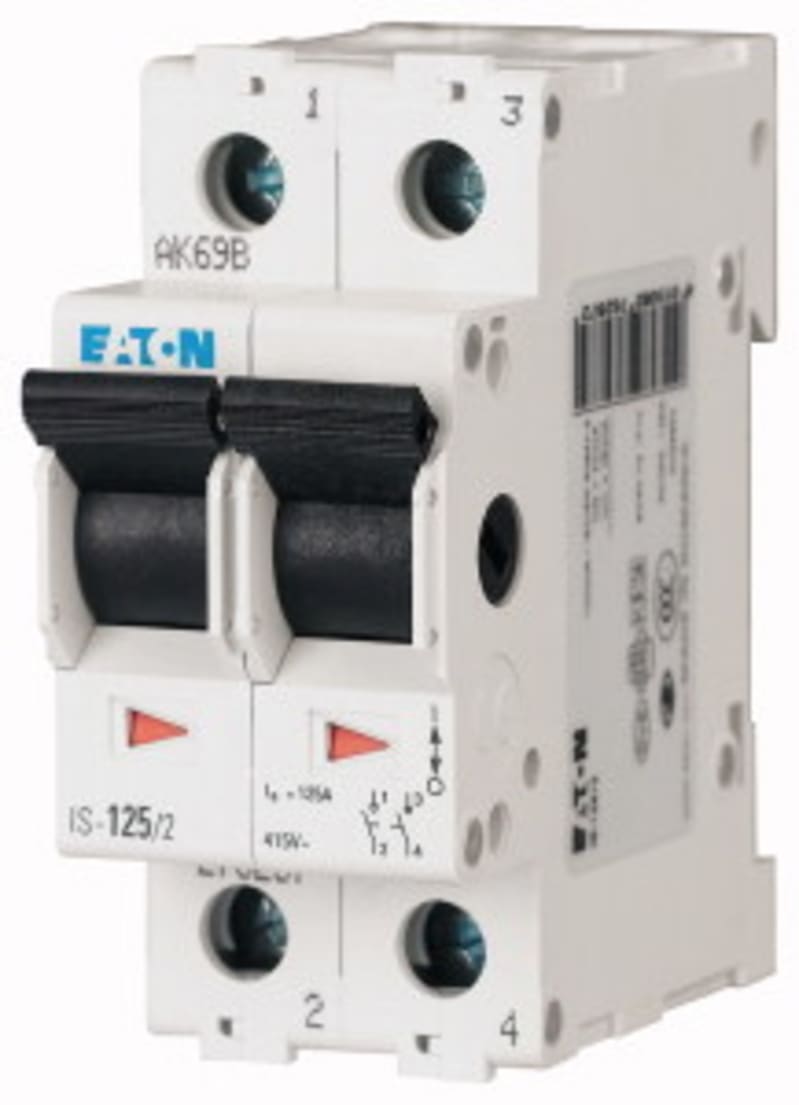

Load-break switch 80A 2P
Part number276279EAN / GTIN4015082762797HS code8536.90
Switchgear & Protection
Disconnect Switches
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton 276279 LOAD-BREAK SWITCH 80A 2-POLE.
Technical Specifications
- Manufacturer part number (MPN)
- 276279
- EAN / GTIN
- 4015082762797
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Eaton catalogue number
- 276279
- Depth
- 60 mm
- Height
- 80 mm
- Width
- 35.4 mm
- Weight
- 0.207 kg
- Compliances
- RoHS conform
- Certifications
- EN45545-2; IEC 61373
- Type
- IS. Main load disconnector switch
- Amperage rating
- 80 A
- Application
- Switchgear for industrial and advanced commercial applications
- Number of poles
- Two-pole
- Rated operational voltage (Ue) - max
- 415 V
- Voltage type
- AC
- Rated short-time withstand current (Icw)
- 2 kA
- Rated switching capacity
- 12.5 kA
- Voltage rating - min
- 240 V
- Width in number of modular spacings
- 2
- Degree of protection
- IP40; IP10
- Built-in depth
- 69.5 mm
- Terminals
- Lift terminal
- Number of contacts (change-over contacts)
- 0
- Number of contacts (normally open contacts)
- 2
- Number of contacts (normally closed contacts)
- 2
- Color calotte
- Other
- Lamp socket
- Other
- Lamp type
- Other
- Switch type
- Other
- Ambient operating temperature - max
- 40 °C
- Ambient operating temperature - min
- -5 °C
- Static heat dissipation, non-current-dependent
- 0 W
- Heat dissipation per pole, current-dependent
- 2.6 W
- Heat dissipation capacity
- 0 W
- Equipment heat dissipation, current-dependent
- 5.4 W
- Rated operational current for specified heat dissipation (In)
- 80 A
- Imprint/indication
- Symbol "arrows"
- Document Name
- Description Action
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015082762797
- SAP 1000054177
- Code 8537579
Product Documentation
Document preview: Load-break switch 80A 2p (276279) — Specification Data Sheet (OEM)
