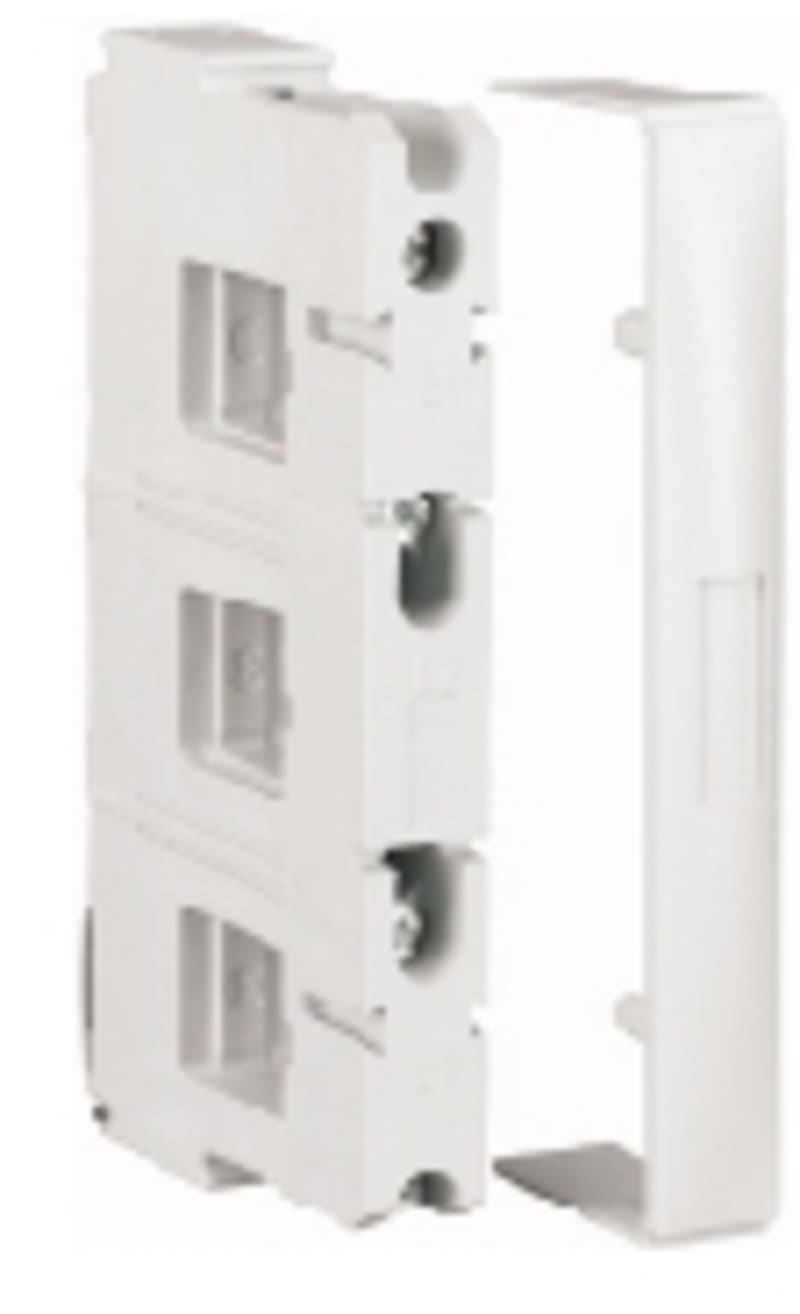

Shield clamp 3-POLE. f T-profi
Part numberBBS-3/PREAN / GTIN4015081069255HS code8536.90
Electrical Components
Busbar Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Shield clamp 3-POLE. f T-profi (part number BBS-3/PR) is listed under Electrical Components / Busbar Systems. Sales unit: pcs; Package quantity: 3 pcs; Eaton catalogue number: 107162; Depth: 25 mm; Height: 140 mm; Width: 210 mm.
Technical Specifications
- Manufacturer part number (MPN)
- BBS-3/PR
- EAN / GTIN
- 4015081069255
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Eaton catalogue number
- 107162
- Depth
- 25 mm
- Height
- 140 mm
- Width
- 210 mm
- Weight
- 0.48 kg
- Compliances
- UL CSA09 (refer to approbation report); CE marking; UL508A; CSA-C22.2 No. 14; IEC 60439-1; RoHS conform
- Certifications
- CSA (Class No. 3211-37); VDE 0660 Part 500, IEC/EN 61439-2; CSA (File No. 236217); North America (UL listed, CSA certified); UL (Category Control Number NMTR, NMTR7); UL (File No. E300273)
- Features
- Self-extinguishing acc. UL 94; Halogen free
- Flammability characteristics (UL)
- Self-extinguishing (UL 94)
- Functions
- Current limiting circuit breaker, refer to approbation report; Busbar support; Double T profile busbar carrier
- Special features
- Suitable for outside and middle carrier with screw block inside
- Suitable for
- Three-pole
- Used with
- Double T profile; Feeder circuits; 60 mm system; System for profile busbars
- Color
- Light gray (RAL 7035)
- Number of poles
- Three-pole
- Type
- 60 mm system System for profile busbars
- Temperature resistance
- Up to 120 °C
- Creepage resistance
- CTI 200
- Current rating - max
- 1600 A
- Current rating (peak withstand)
- 72 kA (500 mm²); 87 kA (720 mm²)
- Frequency rating
- 50 Hz / 60 Hz
- Frequency rating of contacts
- 50 Hz / 60 Hz
- Rated insulation voltage (Ui)
- 3000 V
- Rated operation current (Ie)
- 1600 A
- Rated uninterrupted current of conductor
- 1281 A (720 mm², Tu=35 °C and Ts=65 °C); 1003 A (500 mm², Tu=35 °C and Ts=65 °C)
- Short-circuit duration
- 20 ms
- Voltage rating
- 690 V
- Voltage rating (UL CSA 13)
- Max. 600 V AC
- Busbar distance
- 60 mm
- Busbar temperature - max
- 70 °C
- Degree of protection
- Feeder circuits
- Distance between busbar centers
- 60 mm
- Distance between busbar supports
- 500 mm
- Material
- Thermoplast, silicon free, chlorine free; Halogen free
- Mounting position
- Vertical, horizontal
- Max. rated current
- 1600 A
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081069255
- SAP 1000689687
- Code 8398832
Product Documentation
Document preview: Skcontains 3-pole. f T-profi (BBS-3/PR) — Specification Data Sheet (OEM)
