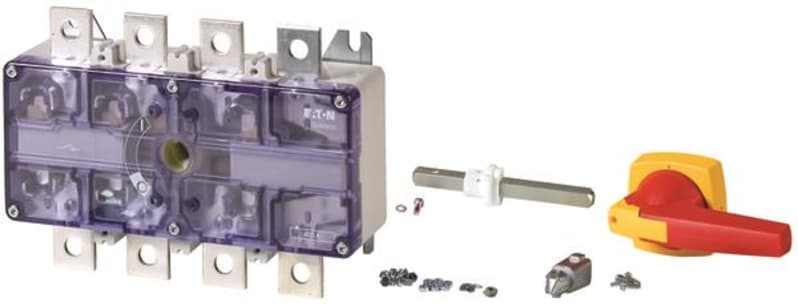

Safety Switch (DMV-400/3/M4/P-R)

Eaton Safety Switch (DMV-400/3/M4/P-R) is listed under Switchgear & Protection / Disconnect Switches. Sales unit: pcs; Eaton catalogue number: 6094967; Depth: 63 mm; Height: 146 mm; Width: 205 mm; Weight: 1.7 kg.

Manufacturer part number (MPN)

DMV-400/3/M4/P-R

EAN / GTIN

8711426958487

Sales unit

pcs

Eaton catalogue number

6094967

Depth

63 mm

Height

146 mm

Width

205 mm

Weight

1.7 kg

Certifications

IEC/EN 60947; EAC; KEMA; IEC/EN 60204; IEC/EN 60947-3; VDE 0660; CE; RoHS; Lloyds

Catalog Notes

Current for a time of 0.3 seconds

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-30 °C

Number of auxiliary contacts (change-over contacts)

0

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Equipment heat dissipation, current-dependent Pvid

11.4 W

Heat dissipation per pole, current-dependent Pvid

9 W

Rated operational current for specified heat dissipation (In)

400 A

Rated breaking capacity at 400/415 V (cos phi to IEC 60947-3)

2664 A

Rated breaking capacity at 500 V (cos phi to IEC 60947-3)

2032 A

Rated breaking capacity at 660/690 V (cos phi to IEC 60947-3)

1120 A

Rated insulation voltage (Ui)

1000 V

Rated operational current (Ie) at AC-21, 400 V, 415 V

400 A

Rated operational current (Ie) at AC-21, 500 V

400 A

Rated operational current (Ie) at AC-21, 690 V

400 A

Rated operational current (Ie) at AC-22, 380 V, 400 V, 415 V

400 A

Rated operational current (Ie) at AC-22, 500 V

400 A

Rated operational current (Ie) at AC-22, 690 V

315 A

Rated operational current (Ie) at AC-23A, 400 V, 415 V

333 A

Rated operational current (Ie) at AC-23A, 500 V

254 A

Rated operational current (Ie) at AC-23A, 690 V

140 A

Rated operational power at AC-23A, 400 V, 50 Hz

400 kW

Rated operational power at AC-23A, 500 V, 50 Hz

180 kW

Rated operational power at AC-23A, 690 V, 50 Hz

132 kW

Rated operational voltage (Ue) at AC - max

690 V

Rated uninterrupted current (Iu)

400 A

Uninterrupted current

Rated uninterrupted current Iu is specified for max. cross-section.

Features

Version as emergency stop installation; Version as main switch

Fitted with

Metal shaft for a control panel depth of 400 mm; Red rotary handle and yellow locking ring

Functions

Interlockable; Emergency switching off function

Locking facility

Lockable in the 0 (Off) position

Locking mechanism

Padlocking feature SVC

Number of poles

Three-pole

Accessories

Auxiliary contact fitted by user.

Actuator color

Red

Actuator type

Short thumb-grip

Connection type

11 mm connection bore

Degree of protection

NEMA Other

Degree of protection (front side)

IP20

Lifespan, mechanical

10,000 Operations

Mounting method

Rear mounting

Mounting position

As required

Overvoltage category

III

Pollution degree

3

Product Category

Main switch Switch-disconnector

Rated impulse withstand voltage (Uimp)

8000 V

Safety parameter (EN ISO 13849-1)

B10d values as per EN ISO 13849-1, table C.1

Suitable for

Ground mounting; Intermediate mounting

Switching angle

90 °

Breaking current

33 kA (at In = 250); 40 kA (at In = 500)

Light-through energy

Max. 380 kA²s (at In = 250); Max. 1700 kA²s (at In = 500)

Rated conditional short-circuit current (Iq)

50 kA; 100 kA at In = 250

Rated short-time withstand current (Icw)

12 kA, Contacts, 1 second; 12 kA

Short-circuit protection rating

500/250, Fuse, Contacts

Screw size

M10 x 20, Terminal screw

Stripping length (main cable)

21 mm

Terminal capacity

240 mm², Flat conductor connection with busbars

Tightening torque

28 Nm, Screw terminals

Country of origin

Netherlands

HS Code

8536.50

• EAN 8711426958487
• SAP 1200299045
• Code 82270035
