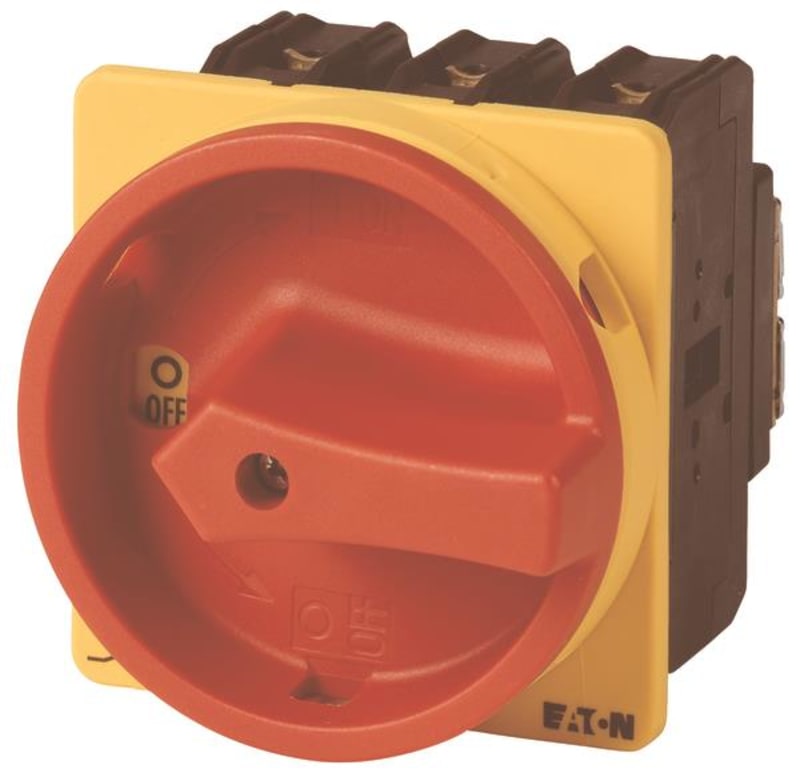

Safety Switch (P3-63/EA/SVB/N/HI11)

Eaton P3-63/EA/SVB/N/HI11.

Manufacturer part number (MPN)

P3-63/EA/SVB/N/HI11

EAN / GTIN

4015080673514

Sales unit

pcs

Eaton catalogue number

067351

Depth

128 mm

Height

102 mm

Width

114 mm

Weight

0.536 kg

Certifications

CSA File No.: 012528; UL 60947-4-1; CSA Class No.: 3211-05; IEC/EN 60204; CSA-C22.2 No. 94; CSA-C22.2 No. 60947-4-1-14; IEC/EN 60947; UL File No.: E36332; UL Category Control No.: NLRV; CE; UL; CSA; VDE 0660; IEC/EN 60947-3

Catalog Notes

Rated Short-time Withstand Current (Icw) for a time of 1 second

Actuator color

Red

Actuator type

Door coupling rotary drive

Ambient operating temperature - max

50 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Control circuit reliability

1 failure per 100,000 switching operations statistically determined, at 24 V DC, 10 mA)

Number of auxiliary contacts (change-over contacts)

0

Number of auxiliary contacts (normally closed contacts)

1

Number of auxiliary contacts (normally open contacts)

1

Heat dissipation per pole, current-dependent Pvid

4.5 W

Rated operational current for specified heat dissipation (In)

63 A

Rated breaking capacity at 220/230 V (cos phi to IEC 60947-3)

640 A

Rated breaking capacity at 400/415 V (cos phi to IEC 60947-3)

600 A

Rated breaking capacity at 500 V (cos phi to IEC 60947-3)

590 A

Rated breaking capacity at 660/690 V (cos phi to IEC 60947-3)

340 A

Rated operational current (Ie) at AC-21, 440 V

63 A

Rated operational current (Ie) at AC-23A, 230 V

63 A

Rated operational current (Ie) at AC-23A, 400 V, 415 V

63 A

Rated operational current (Ie) at AC-23A, 500 V

63 A

Rated operational current (Ie) at AC-23A, 690 V

63 A

Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V

51 A

Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V

55 A

Rated operational current (Ie) at AC-3, 500 V

44 A

Rated operational current (Ie) at AC-3, 660 V, 690 V

22.1 A

Rated operational current (Ie) at DC-23A, 120 V

25 A

Rated operational current (Ie) at DC-23A, 24 V

50 A

Rated operational current (Ie) at DC-23A, 48 V

50 A

Rated operational current (Ie) at DC-23A, 60 V

50 A

Rated operational power at AC-23A, 220/230 V, 50 Hz

18.5 kW

Rated operational power at AC-23A, 400 V, 50 Hz

30 kW

Rated operational power at AC-23A, 500 V, 50 Hz

45 kW

Rated operational power at AC-23A, 690 V, 50 Hz

55 kW

Rated operational power at AC-3, 380/400 V, 50 Hz

30 kW

Rated operational power at AC-3, 415 V, 50 Hz

30 kW

Rated operational power at AC-3, 690 V, 50 Hz

30 kW

Rated operational voltage (Ue) at AC - max

690 V

Rated uninterrupted current (Iu)

63 A

Uninterrupted current

Rated uninterrupted current Iu is specified for max. cross-section.

Features

Version as main switch; Version as maintenance-/service switch; Version as emergency stop installation

Fitted with

Red rotary handle and yellow locking ring

Functions

Interlockable; Emergency switching off function

Locking facility

Lockable in the 0 (Off) position

Number of poles

4

Degree of protection

NEMA 12

Degree of protection (front side)

IP65

Lifespan, mechanical

100,000 Operations

Mounting method

Flush mounting

Mounting position

As required

Operating frequency

1200 Operations/h

Overvoltage category

III

Pollution degree

3

Product Category

Main switch

Rated impulse withstand voltage (Uimp)

6000 V AC

Safe isolation

440 V AC, Between the contacts, According to EN 61140

Safety parameter (EN ISO 13849-1)

B10d values as per EN ISO 13849-1, table C.1

Shock resistance

15 g, Mechanical, According to IEC/EN 60068-2-27, Half-sinusoidal shock 20 ms

Suitable for

Front mounting 4-hole; Branch circuits, suitable as motor disconnect, (UL/CSA)

Assigned motor power at 115/120 V, 60 Hz, 1-phase

3 HP

Assigned motor power at 200/208 V, 60 Hz, 1-phase

7.5 HP

Assigned motor power at 200/208 V, 60 Hz, 3-phase

15 HP

Assigned motor power at 230/240 V, 60 Hz, 1-phase

10 HP

Assigned motor power at 230/240 V, 60 Hz, 3-phase

15 HP

Assigned motor power at 460/480 V, 60 Hz, 3-phase

40 HP

Assigned motor power at 575/600 V, 60 Hz, 3-phase

50 HP

Rated conditional short-circuit current (Iq)

4 kA (Load side); 100 kA (Supply side)

Rated short-time withstand current (Icw)

1.26 kA

Short-circuit current rating (basic rating)

10 kA, SCCR (UL/CSA); 150A, max. Fuse, SCCR (UL/CSA)

Short-circuit protection rating

80 A gG/gL, Fuse, Contacts

Load rating

2 x Iₑ (with intermittent operation class 12, 25 % duty factor); 1.6 x Iₑ (with intermittent operation class 12, 40 % duty factor); 1.3 x Iₑ (with intermittent operation class 12, 60 % duty factor)

Number of contacts in series at DC-23A, 120 V

3

Number of contacts in series at DC-23A, 24 V

1

Number of contacts in series at DC-23A, 48 V

2

Number of contacts in series at DC-23A, 60 V

2

Rated making capacity up to 690 V (cos phi to IEC/EN 60947-3)

800 A

Switching capacity (auxiliary contacts, general use)

10A, IU, (UL/CSA)

Switching capacity (auxiliary contacts, pilot duty)

A600 (UL/CSA); P600 (UL/CSA)

Switching capacity (main contacts, general use)

60 A, Rated uninterrupted current max. (UL/CSA)

Voltage per contact pair in series

60 V

Screw size

M5, Terminal screw

Terminal capacity

1 x (1.5 - 25) mm², flexible with ferrules to DIN 46228; 2 x (1.5 - 6) mm², flexible with ferrules to DIN 46228; 1 x (2.5 - 35) mm², solid or stranded; 2 x (2.5 - 10) mm², solid or stranded; 14 - 2 AWG, solid or flexible with ferrule

Tightening torque

3 Nm, Screw terminals; 26.5 lb-in, Screw terminals

Country of origin

United Kingdom

HS Code

8536.50
