Eaton

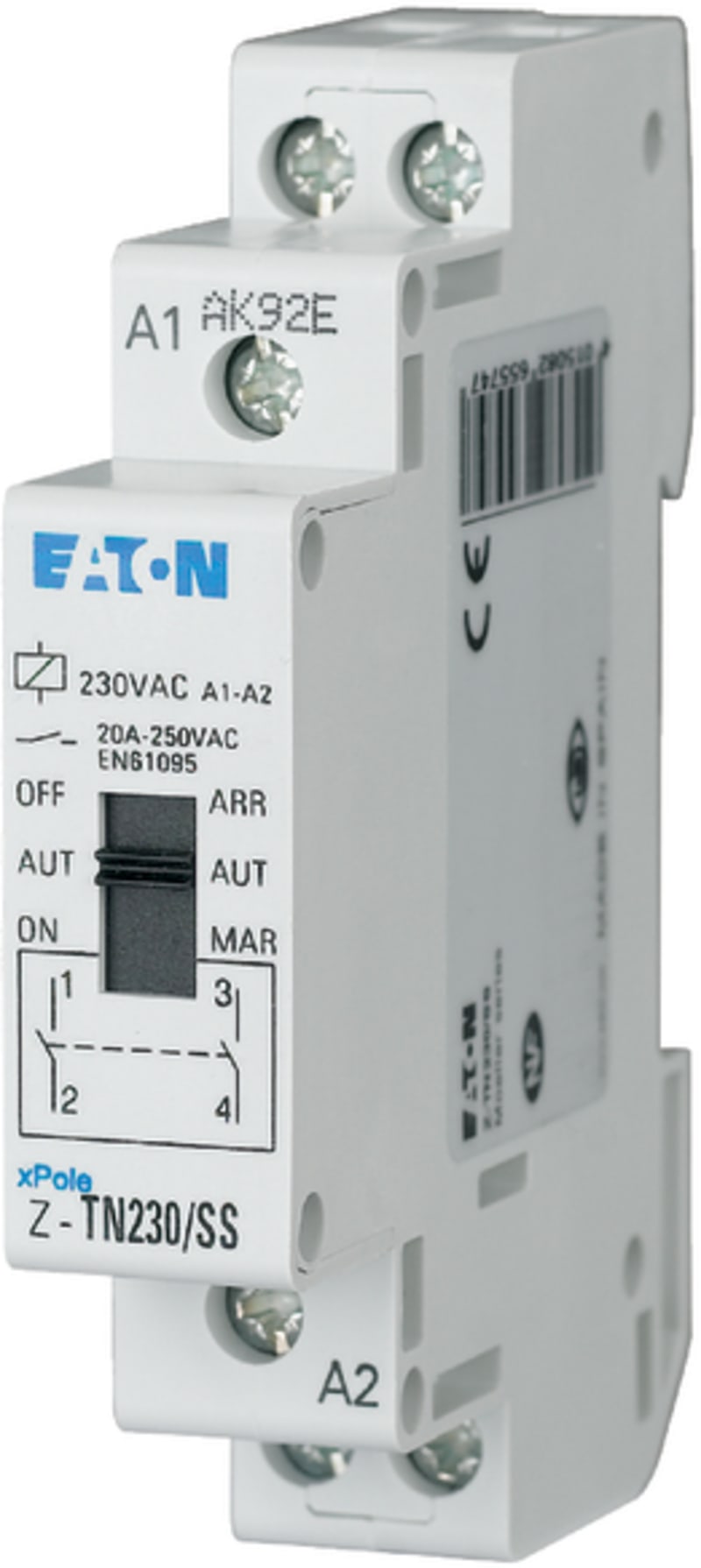

INST.RELAY M/ OF-ON 2NO 230V50
Part numberZ-TN230/SSEAN / GTIN4015082655747HS code8536.90
Control & Automation
Relays & Timers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton Z-TN230/SS Installation Relay 230 V with OF/ON 2NO.
Technical Specifications
- Manufacturer part number (MPN)
- Z-TN230/SS
- EAN / GTIN
- 4015082655747
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Eaton catalogue number
- 265574
- Depth
- 80 mm
- Height
- 70 mm
- Width
- 17.5 mm
- Weight
- 0.136 kg
- Compliances
- RoHS conform
- Functions
- Mechanical
- Amperage Rating
- 20 A
- Ambient operating temperature - min
- -20 °C
- Equipment heat dissipation, current-dependent
- 6.4 W
- Heat dissipation per pole, current-dependent
- 2 W
- Rated operational current for specified heat dissipation (In)
- 20 A
- Control voltage 1 - max
- 230 V
- Control voltage 1 - min
- 230 V
- Control voltage 1 type
- AC
- Control voltage 2 type
- AC/DC
- Frequency control voltage 1 - max
- 50 Hz
- Frequency control voltage 1 - min
- 50 Hz
- Supply voltage - max
- 250 V
- Supply voltage - min
- 250 V
- Voltage type
- AC
- Built-in depth
- 60 mm
- Mounting method
- DIN rail
- Number of contacts (change-over contacts)
- 0
- Number of contacts (normally closed contacts)
- 0
- Number of contacts (normally open contacts)
- 2
- Width in number of modular spacings
- 1
- Contact configuration
- 2 NO
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015082655747
- SAP 1000001566
- Code 816102
Product Documentation
Document preview: INST.RELAY M/ OF-ON 2NO 230V50 (Z-TN230/SS) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Eaton 5S 1500I (5S1500I)
Eaton
Unit breaker 32 A 2P C DC
FAZ-C32/2-DC
Eaton

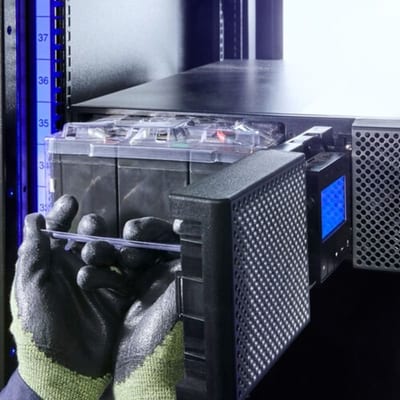

Easy Battery+ product AF
