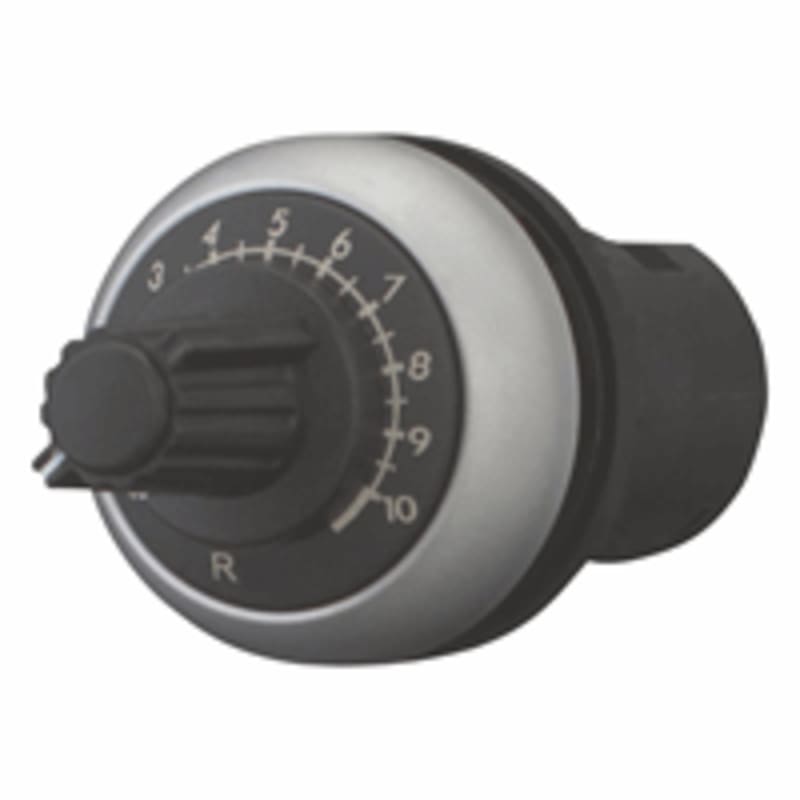

Potentiometer, RMQ (M22-R2K2)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Potentiometer, RMQ (M22-R2K2) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 171157; Depth: 70 mm; Height: 29 mm; Width: 29 mm; Weight: 0.028 kg.
Technical Specifications
- Manufacturer part number (MPN)
- M22-R2K2
- EAN / GTIN
- 4015081676477
- Sales unit
- pcs
- Eaton catalogue number
- 171157
- Depth
- 70 mm
- Height
- 29 mm
- Width
- 29 mm
- Weight
- 0.028 kg
- Compliances
- CE Marked
- Certifications
- CSA Certified; UL Listed; UL File No.: E29184; CSA-C22.2 No. 94-91; CSA; CSA File No.: 012528; UL; UL Category Control No.: NKCR; CSA-C22.2 No. 14-05; VDE 0660; CE; IEC/EN 60947-5; CSA Class No.: 3211-03; IEC/EN 60947; UL 508
- Bezel color
- Titanium
- Design
- Classical
- Electric connection type
- Screw connection
- Fitted with
- 3 individual screw terminals
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- No
- Static heat dissipation, non-current-dependent Pvs
- 0.5 W
- Power consumption
- 0.5 W
- Rated insulation voltage (Ui)
- 250 V
- Rated power
- 0.5 VA
- Resistance
- 2200 Ohm
- Degree of protection
- IP66; NEMA Other
- Lifespan, mechanical
- 25,000 Operations
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Overvoltage category
- III
- Pollution degree
- 3
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Type
- Potentiometer
- Terminal capacity (solid)
- 0.5 - 1.5 mm²
- Terminal capacity (stranded)
- 0.5 - 1.5 mm²
- Tightening torque
- 0.5 Nm, Screw terminals
- Hole diameter
- 22 mm
- Type of electric connection
- Screw connection
- Number of revolutions
- 1
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8533.40
Cross References
- EAN 4015081676477
- SAP 1200236052
- Code 82224201
Product Documentation
