Eaton

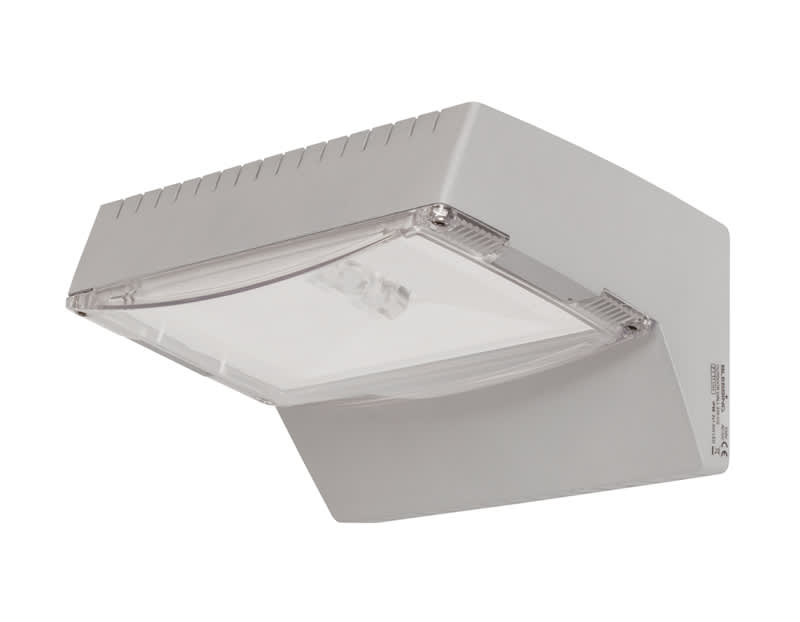

Atlantic Outdoor Wall CGLine+
Part numberOutdoor Wall 1-8h/D CGLine+ HEAN / GTIN4012539344537HS code9405.41
Lighting & Electrical Accessories
Emergency Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton Outdoor Wall 1-8h/D CGLine+ H Atlantic Outdoor Wall CGLine+ with varmeelemnt.
Technical Specifications
- Manufacturer part number (MPN)
- Outdoor Wall 1-8h/D CGLine+ H
- EAN / GTIN
- 4012539344537
- Sales unit
- pcs
- Suitable for continuous circuit
- Yes
- Suitable for standby switching
- Yes
- Mounting method
- Wall surface mounted
- Function
- Escape route lighting
- With pictogram
- No
- Monitoring equipment
- Safety module for monitoring (central feeded system)
- Wiring system
- Continuous circuit/emergency circuit
- With remote switch connection
- Yes
- With remote control
- No
- Power supply system
- Peripheral (individual battery)
- Battery technology
- Lithium-ion
- Lamp type
- LED not exchangeable
- With light source
- Yes
- Lamp holder
- None
- Number of lighting heads
- 1
- Housing material
- Aluminium
- Housing colour
- Grey
- Material cover
- Plastic, transparent
- Voltage type
- AC
- Nominal voltage
- 220–240 V
- Type of control gear
- LED operating device current-controlled
- Exchangeable control gear
- No
- Light distributor
- Focal lens
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Rated lifetime L70/B50 at 25 °C
- 50000 h
- Constant light output (CLO)
- No
- Degree of protection (IP)
- IP65
- Impact strength
- IK10
- Protection class according to IEC 61140
- I
- Rated ambient temperature according to IEC 62722-2-1
- -20–35 °C
- Max. system power
- 9.3 W
- Rated luminous flux according to IEC 62722-2-1
- 225 lm
- Luminous flux in standby mode
- 225 lm
- Colour temperature
- 6500 K
- Power factor
- 0.91
- Nominal operation time
- 1–8 h
- Width
- 184 mm
- Height/depth
- 160 mm
- Length
- 303 mm
- Type of wiring
- Suitable for loop-through wiring
- Number of poles
- 6
- Conductor cross section
- 2.5 mm²
- Connection type
- Plug-in connection
- RAL-number housing
- 9001
- Emergency power supply system
- Peripheral (individual battery)
- With heating element for battery
- No
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 9405.41
Cross References
- EAN 4012539344537
- SAP 1200607731
- Code 82998002
Product Documentation
Document preview: Atlantic Outdoor Wall CGLine+ (Outdoor Wall 1-8H/D CGLine+ H) — Specification sheet
More from Eaton
Eaton

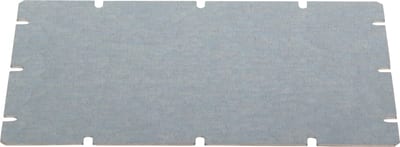

Mounting Plate (MIV200)
Eaton

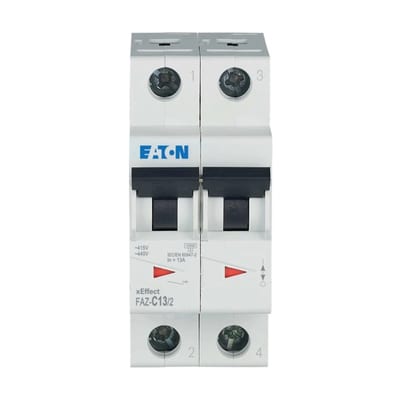

Eaton FAZ-C10/1N Miniature Circuit Breaker — 1P+N, Type C, 10 A, 15 kA
Eaton

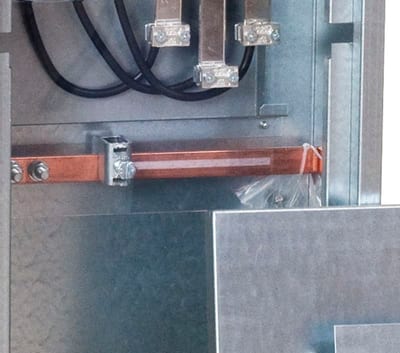

Earth clamp 70 mm² (sk 70 F5)
SK 70 F5
Eaton

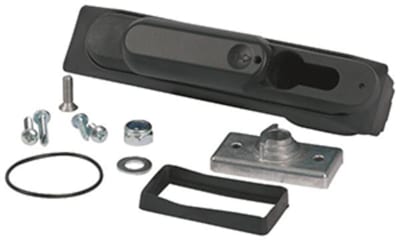

Door handle OLU 1-Point xE Basic
BPZ-SH-L-1P/OLU
Eaton

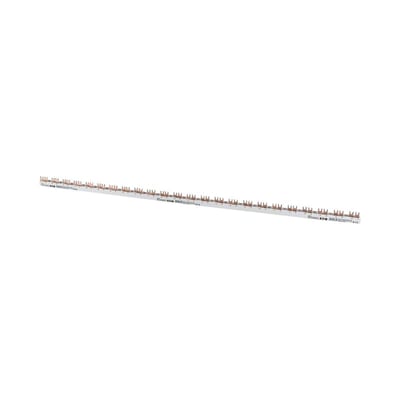

Busbar. TN 3+Nfas, 2POL+hj, 1
BB-F-16/4P-3XLN+AS
Eaton

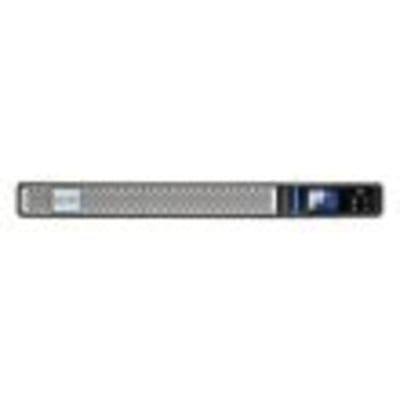

Eaton 5P 1550I Rack 1U G2
5P1550IRG2
Eaton

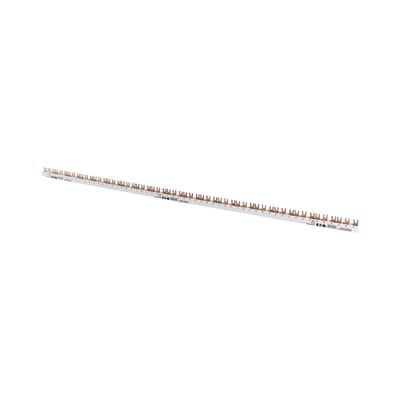

Busbar 16/1P 16mm² (Z-GV-16/1P-1TE)
Eaton

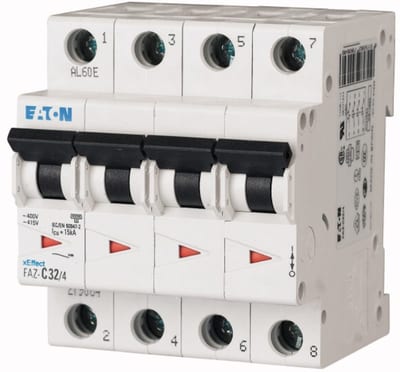

Eaton FAZ-D16/4 Miniature Circuit Breaker — 4P, Type D, 16 A, 15 kA
