Product Description

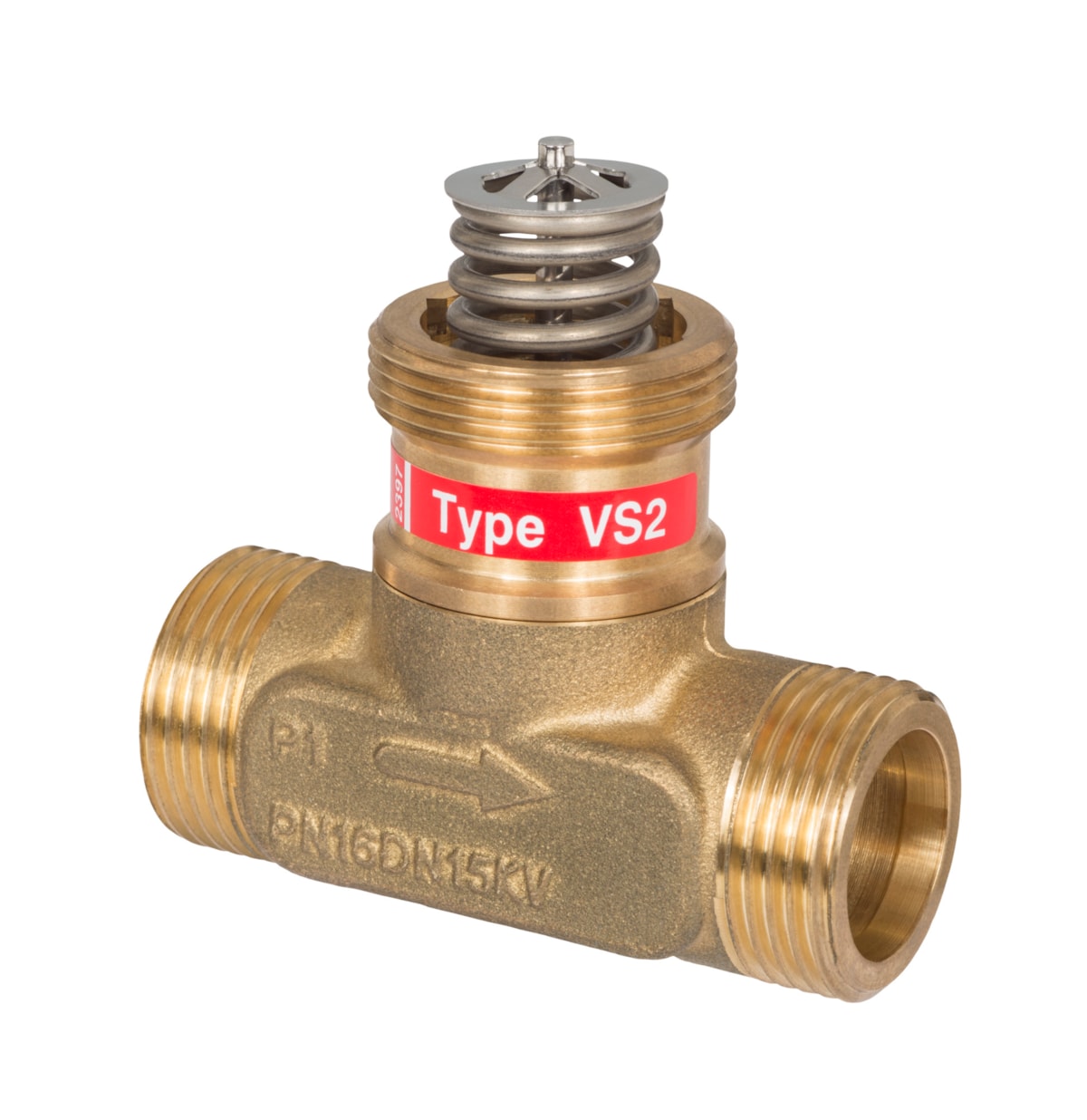

Danfoss VS 2 two-way seated control-valve body that throttles flow through a single seat, OEM order code 065B3550. VS 2 PN16 15/1,6 2-w seat ext. thr I-p. Nominal size DN 15, Kvs 0.63 m³/h, nominal pressure PN 16. Equal percentage flow characteristic. The valve body is driven by a matched Danfoss electric actuator (AMV/AME series) sized to the valve stroke. Net weight 0.292 Kilogram. Data quoted verbatim from store.danfoss.com (code 065B3550).
Technical Specifications
- Brand
- Danfoss
- Part number
- 065B3550
- Code number
- 065B3550
- Type
- VS 2
- Product group
- Motorized control valves
- Valve function
- Two-way (2-port) externally-threaded seated control-valve body
- Nominal size
- DN 15
- Kvs value
- 0.63 m³/h
- Nominal pressure
- PN 16
- Connection
- External Thread
- Net weight
- 0.292 Kilogram
- Gross weight
- 0.292 Kilogram
- HS code
- 8481.80 (taps, cocks, valves for pipes)
- Cavitation factor 100%
- 0.34
- Cavitation factor 25%
- 0.58
- Cavitation factor 50%
- 0.52
- Cavitation factor 75%
- 0.5
- China RoHS compliance
- Out of scope
- Connection types
- External Thread
- Description
- VS 2 PN16 15/1,6 2-w seat ext. thr I-p
- Diameter [mm]
- 15 mm
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Kvs values [m³/h]
- 0.63 m³/h
- Label product
- Yes
- Pressure class
- PN 16
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
Standards & Compliance
- Thread Standard
- ISO 228
- Pressure Rating
- PN 16
- Classification / Approval
- CE
- HS Code
- 8481.80
Compatibility & Fitment
Two-way seated valve body — requires a matched Danfoss electric actuator (AMV/AME series). Confirm Kvs (0.63 m³/h), nominal size (DN 15) and pressure class (PN 16) against the circuit design before ordering.
