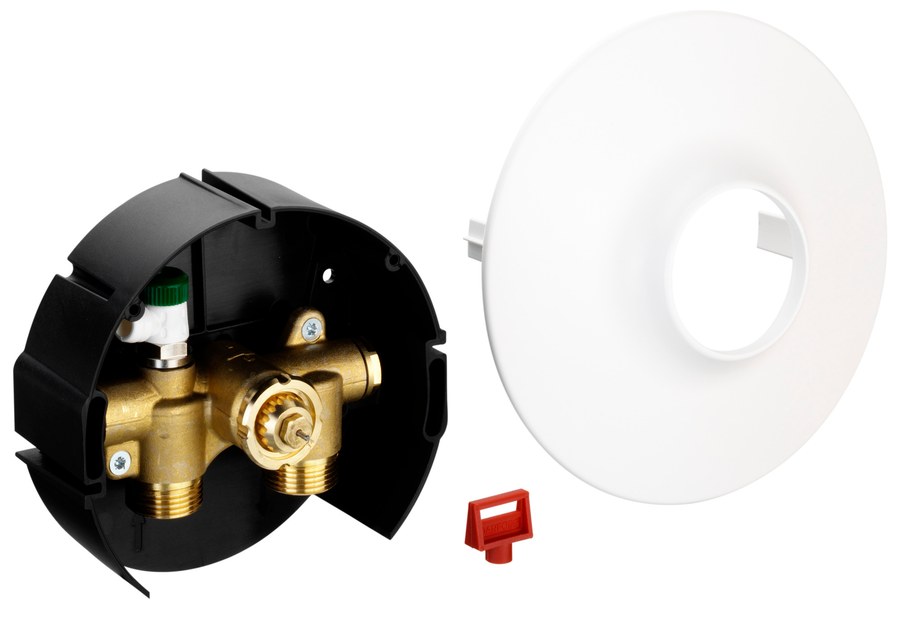

Danfoss FHV-R Floor-Heating Regulating Combi-Valve 3/4", Kvs 0.9 m³/h (003L1015)

Danfoss FHV-R floor-heating regulating combi-valve, OEM order code 003L1015. Combines flow presetting/balancing with a return-temperature limiting function in one 3/4" valve body for single-room low-temperature floor-heating circuits taken off a manifold or two-pipe system. The FHV-R body accepts a Danfoss FJVR sensor/head (FJVR return-temperature sensors) that throttles the circuit to hold the set return temperature. Drain-flow Kvs 0.9 m³/h, max. differential pressure 6 bar, max. working pressure 6 bar, max. flow temperature 90 °C, balanced test pressure 10 bar. Net weight 0.926 Kilogram. EAN 5702420047638. Data quoted verbatim from store.danfoss.com (code 003L1015).

Brand

Danfoss

Part number

003L1015

Code number

003L1015

Type

FHV-R

Product group

Regulating Combi Valve, FHV

Function

Floor-heating manifold regulating combi-valve (flow presetting + return-temperature control valve)

Valve connection

Danfoss FJVR

Connection size

3/4"

Drain-flow Kvs value

0.9 m³/h

Max. differential pressure

6 bar

Max. working pressure

6 bar

Balanced test pressure

10 bar

Max. flow temperature

90 °C

Net weight

0.926 Kilogram

Gross weight

0.926 Kilogram

EAN

5702420047638

HS code

8481.80 (taps, cocks, valves for pipes)

Balanced test pressure [bar]

10 bar

Description

FHV-R for FJVR, round

Differential pressure [bar] [max]

6 bar

Drain flow Kvs value [m³/h]

0.9 m³/h

Flow temperature [°C] [Max]

90 °C

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Working pressure [bar] [Max]

6 bar

Pressure Rating

Max. working pressure 6 bar; balanced test pressure 10 bar; max. differential pressure 6 bar

Temperature Range

up to 90 °C

Classification / Approval

CE

HS Code

8481.80
