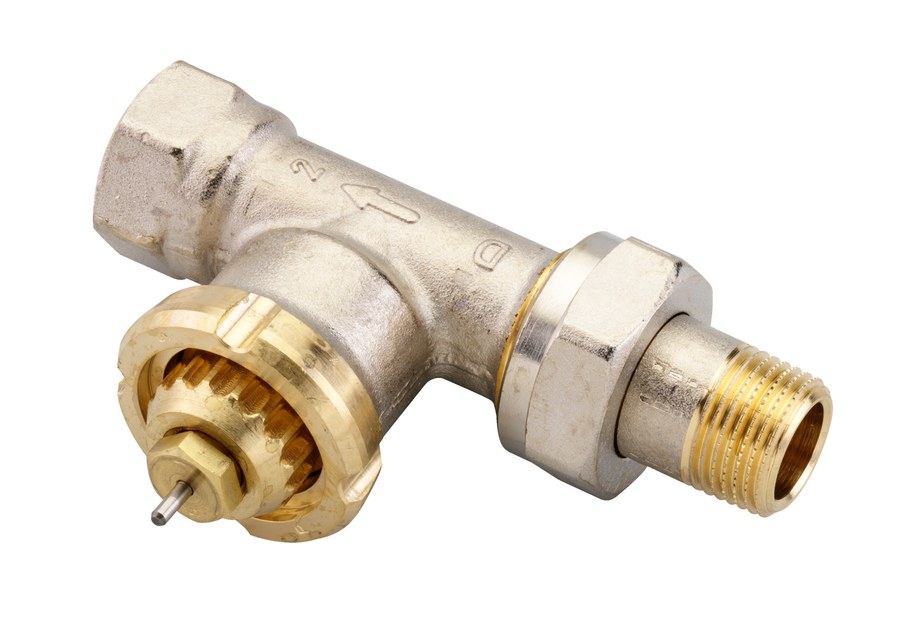

Danfoss FJVR Return-Temperature Limiter Valve DN 10 Straight, Kvs 0.39 m³/h, 10 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss FJVR return-temperature limiter valve, OEM order code 003L1010. straight-pattern DN 10 valve body (inlet R 3/8, outlet Rp 3/8) that, combined with an FJVR return-temperature sensor, throttles a floor-heating or radiator return circuit to hold a set return temperature and so protects the return-line/floor screed from overheating. Kvs 0.39 m³/h, max. differential pressure 1 bar, max. working pressure 10 bar, test pressure 16 bar, max. flow temperature 120 °C. Net weight 0.242 Kilogram. EAN 5702420004884. Data quoted verbatim from store.danfoss.com (code 003L1010).
Technical Specifications
- Brand
- Danfoss
- Part number
- 003L1010
- Code number
- 003L1010
- Type
- FJVR valves
- Product group
- Return temperature limiters
- Function
- Self-acting return-temperature limiter valve body (combine with FJVR sensor)
- Valve size
- DN 10
- Design
- Straight
- Connection size (inlet)
- R 3/8
- Connection size (outlet)
- Rp 3/8
- Kvs value
- 0.39 m³/h
- Max. differential pressure range
- 1 bar
- Max. working pressure
- 10 bar
- Test pressure
- 16 bar
- Max. flow temperature
- 120 °C
- Net weight
- 0.242 Kilogram
- Gross weight
- 0.252 Kilogram
- EAN
- 5702420004884
- HS code
- 8481.80 (taps, cocks, valves for pipes)
- CE mark
- No
- China RoHS compliance
- Out of scope
- Connection size in
- R 3/8
- Connection size out
- Rp 3/8
- Contents of set
- Valve
- Description
- Return temperature limiter valve, type FJVR, should be combined with FJVR sensor
- Differential pressure range [bar] [Max]
- 1 bar
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Flow temperature [°C] [Max]
- 120 °C
- Kvs values [m³/h]
- 0.39 m³/h
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Test pressure [bar]
- 16 bar
- UL mark
- No
- UNSPSC CODE
- 40141616
- Working pressure [bar] [Max]
- 10 bar
Standards & Compliance
- Size / Series
- DN 10
- Thread Standard
- ISO 7/1 (R / Rp)
- Pressure Rating
- Max. working pressure 10 bar; test pressure 16 bar; max. differential pressure 1 bar
- Temperature Range
- up to 120 °C
- Classification / Approval
- CE
- HS Code
- 8481.80
Compatibility & Fitment
Valve body only — must be combined with an FJVR return-temperature sensor (003L1040/1047 for 10–50 °C or 003L1070/1077 for 10–80 °C) to form a working return-temperature limiter. Confirm valve size (DN 10), design (Straight) and connections (R 3/8/Rp 3/8) before ordering.
